7" AHD monitor RAV-MO-7HD with 3 camera inputs, set with RAV-F full HD 1080p rear view camera from CARGUARD Systems, 115° viewing angle, 9-32V and guidelines
Item number RUMO7173AB05
Item number RUMO7173AB05

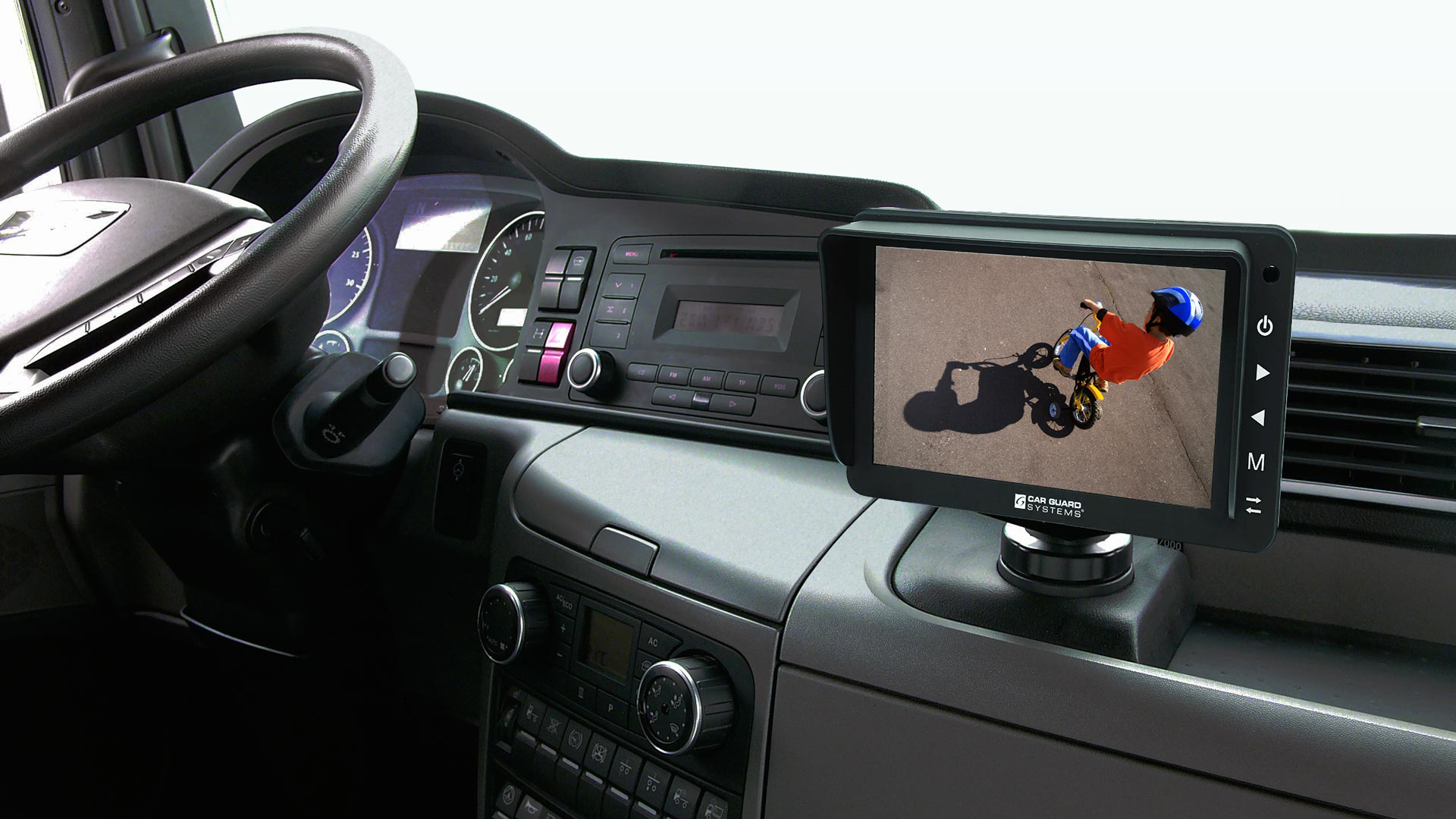

As a parking aid and for monitoring rear traffic.

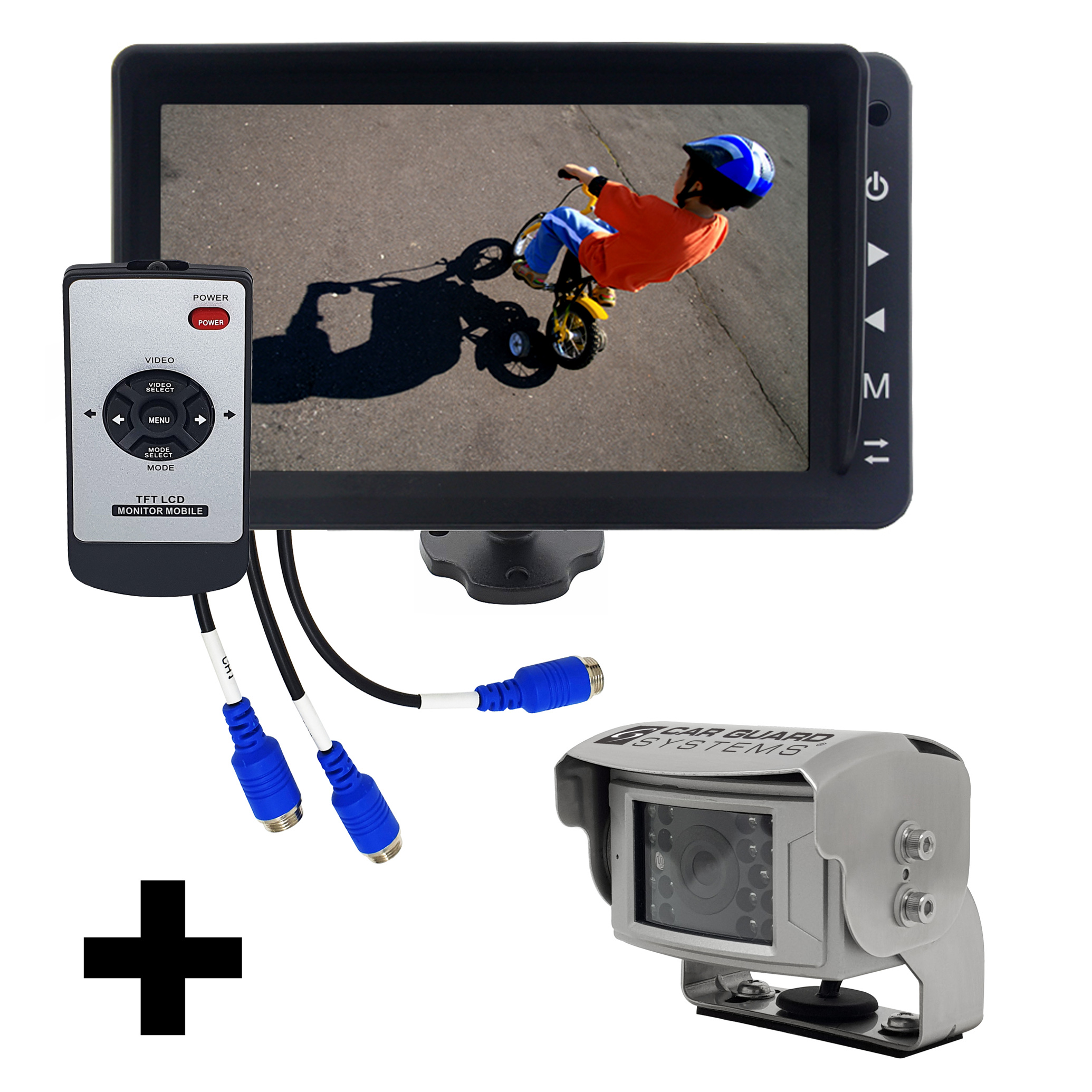

CARGUARD Rear Angel View 7" AHD monitor RAV-MO-7HD with 3 camera inputs, set with RAV-F full HD 1080p rear view camera from CARGUARD Systems, 115° viewing angle, 9-32V and guidelines.
Function Description:
This extremely robust and high-quality monitor with rubber-coated housing forms a fully-fledged premium reversing video system when set with the shuttered reversing camera and outstanding full HD image quality.
3 camera inputs ensure that you always have everything in view and safety is guaranteed. The 3 trigger inputs allow the cameras to be switched on via different triggers, with reversing visibility always taking priority. Thanks to the built-in loudspeaker, this monitor can reproduce the sounds around the camera in the driver's cab, e.g. during briefing.
The clever design of the RAV-F reversing camera allows any installation position: overhead on the ceiling, on the wall or on the floor. The camera connection cable can be installed invisibly and absolutely waterproof.

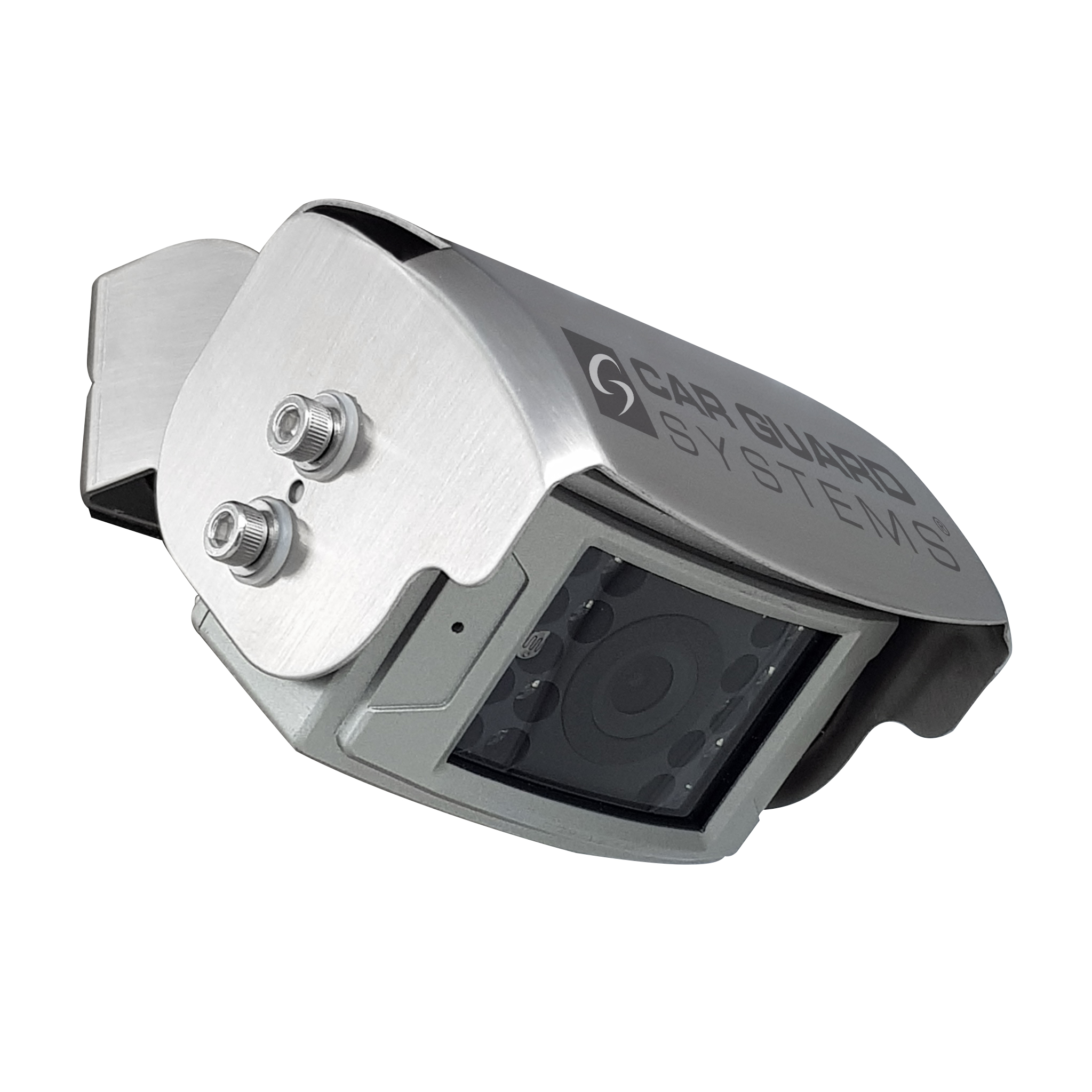

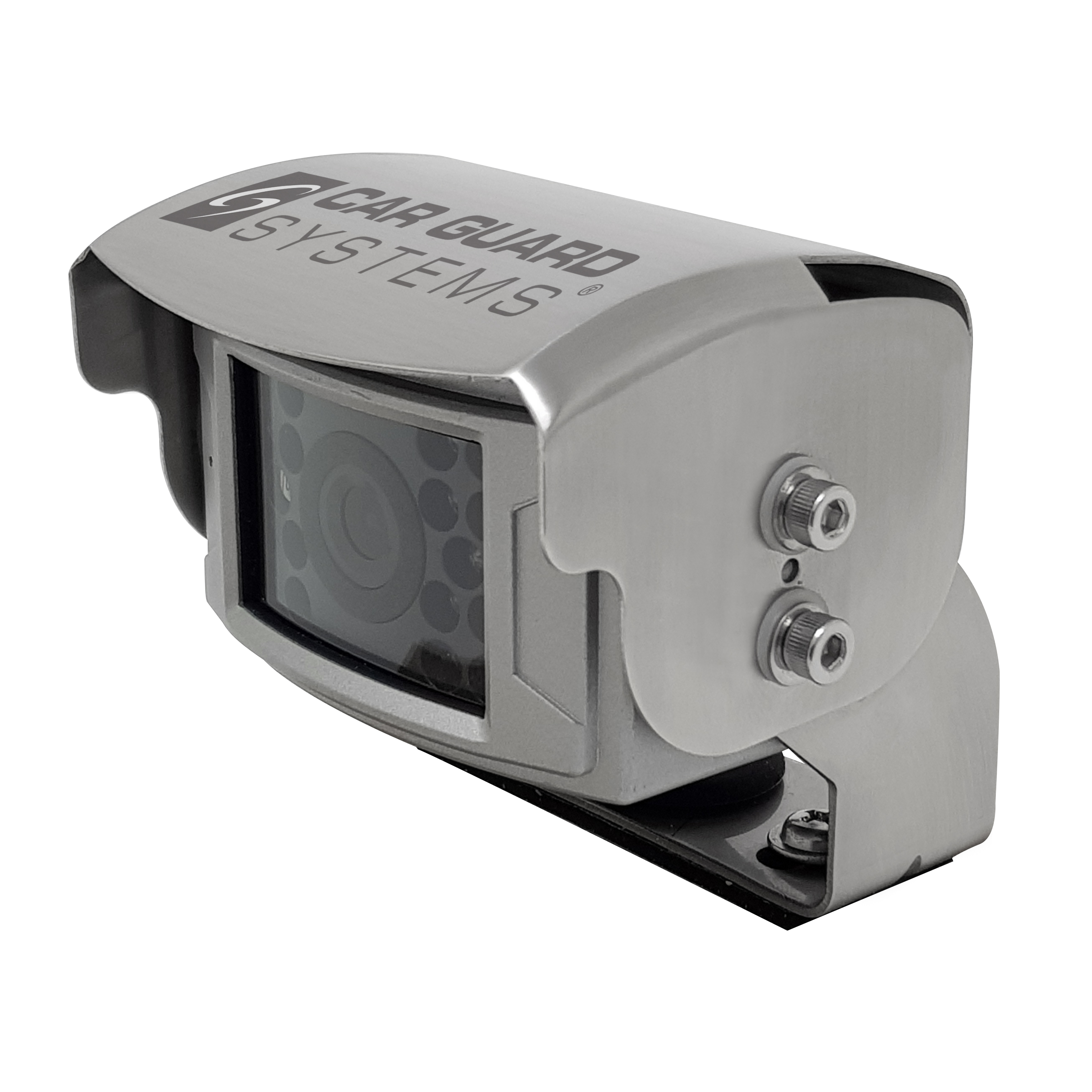

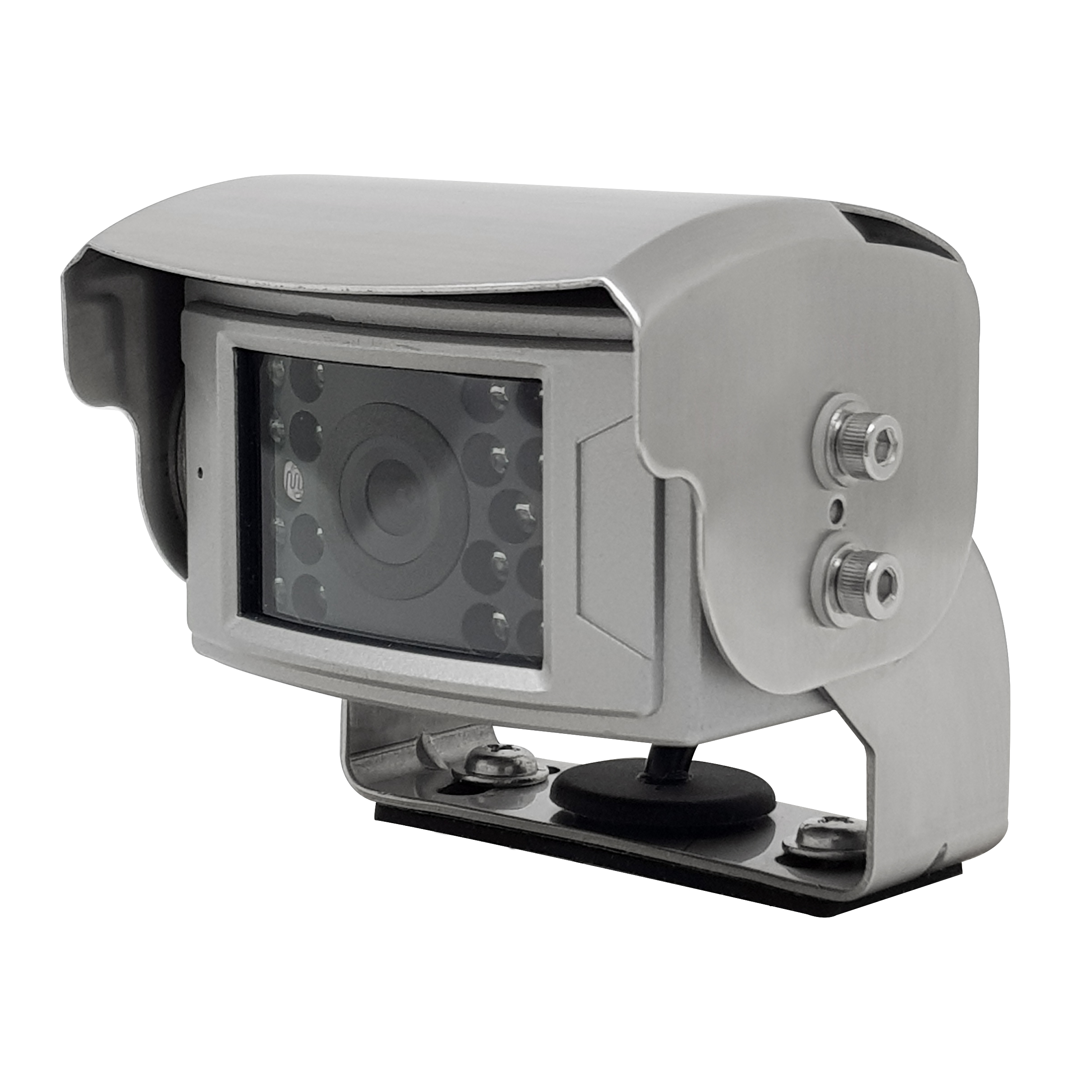

Device information Camera:
- \t
- Outstanding resolution: 2,080,000 pixels with 1080 TV lines. \t
- Power supply: DC 9-32V +/- 10% \t
- Lens coverage: 70° (vertical) / 95° (horizontal) 115° (diagonal) \t
- Designed to meet IP69K, the highest protection standard for automotive components \t
- Protection against water from high-pressure cleaners \t
- Protection against permanent submersion \t
- Protection against foreign bodies: absolutely dust-tight \t
- Protection against contact and vibration \t
- The powder-coated silver die-cast aluminium housing is additionally protected by a corrosion-free sun shield and a 2 mm thick, torsion-resistant stainless steel mounting foot \t
- extremely resistant to branches, high-pressure cleaners, storms, dirt, winter weather and rain \t
- waterproof screw connections \t
- image sensor size 1080p: 1/3 inch Sony MIX 225 \t
- fast image transmission in real time \t
- 17 infrared LEDs of highest quality guarantee a very good image even in darkness \t
- Night vision up to 12 m \t \t
- Light sensitivity: 0 lux (with IR at night), 0.1 lux (during the day) \t \t
- vibration resistant up to 15G \t
- shock resistant up to 100G \t
- built-in microphone \t
- heating against condensation: active below 10° Celsius \t
- automatic backlight compensation \t
- automatic brightness and white balance \t
- TV system: PAL (NTSC available on request) \t
- anti-fog lotus coating \t
- Focal length: f= 3.5 mm \t
- Sensor coverage: 4.9 mm (H) x 3.7 mm (V) \t
- Power consumption: < 2.5 W \t
- No voltage connection necessary at the rear of the vehicle \t
- Video signal output: 1 Vp-p, 75 Ohm \t
- Power consumption in operation: 88 mA during the day, 128 mA at night, maximum: 535 mA \t
- Operating temperature range: -20° C to 75° C, max. relative humidity 95% \t
- Standing temperature range: -40° C to 80° C, max. relative humidity 95% \t
- Scanning system: progressive \t
- Synchronisation: internal \t
- horizontal synchronisation frequency: 15.63 kHz / 15.73 kHz \t
- vertical synchronisation frequency: 50 Hz / 60 Hz \t
- gamma: 0.45 \t
- Gain control: automatic \t
- signal-to-noise ratio: 52 dB \t
- Electronic shutter speed: 1/50 (PAL) ~ 1/100,000 s
Device information Monitor:

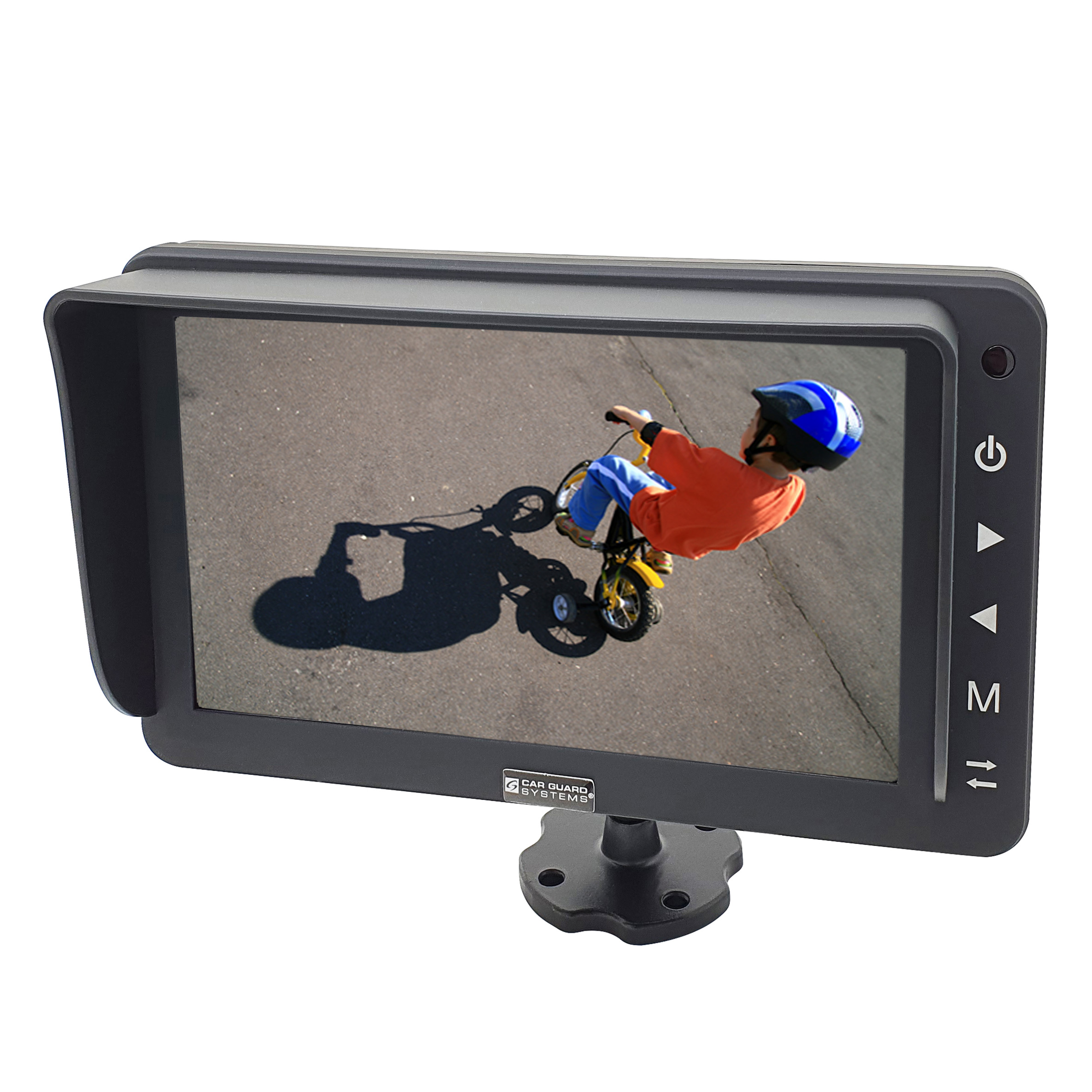

- 7" AHD LCD monitor with 3 camera inputs. \t
- Integrated loudspeaker Audio signals from a rear-view camera can be played back via loudspeaker \t
- For all analogue and digital PAL and NTSC cameras, also Full HD cameras, 3 HD inputs (720P 25/30Hz, 720P 50/60Hz, 1080P 25/30Hz) \t
- Resolution: 1024 x 600 pixels \t
- Operating voltage 9 32 V DC \t
- rubberised, haptically very pleasant monitor housing \t
- Metal base with ball-and-socket joints at the top and bottom for optimum horizontal and vertical alignment (vehicle-specific dashboard mounts are optionally available to match) \t
- 3 inputs for automatically switching on the monitor, e.g. reversing lights, indicators, implements or dashboard switch (reversing light input has priority) \t
- Guidelines for better distance estimation (can be switched on/off) \t
- ACC time: delay holding time of the reversing camera image after the signal on the reversing light cable is switched off. Setting options: Off, 1 15 s \t
- Sleep/timer function: automatic switch-off of the monitor after 0 100 min adjustable in 10-min steps \t
- Cameras are mirrorable for front/rear or left/right mounting, display of left or right mirror image can be selected in each channel \t
- Menu languages: English, German, French, Italian, Spanish \t
- OSD adjustment options for brightness, contrast, colour saturation and volume \t
- Optionally available adapters for standard pre-installed camera cables of brands such as Orlaco, Dometic, Brigade, Axion, Mekra and Car Guard Systems (also old models) \t
- Picture format: 16:9 \t
- Brightness: 350 cd/m2 \t
- Picture angle horizontal: left: 70°, right: 70 \t
- Picture angle vertical: top: 50°, bottom: 70° \t
- Maximum power consumption: 5W \t
- Operating temperature range: -20° C to 70° C \t
- Standing temperature range: -30° C to 80° C \t
Product dimensions and weight Monitor
- Dimensions with sunshade: H: 195mm/ W: 114mm/ D: 55mm
- Weight: 450g
Product dimensions and weight Camera
- Length: 77.9 mm, width: 71.3 mm, height: 70 mm
- Weight: 360g
Logistics and packaging:
- \t
- Item number: RUMO7173AB05 \t
- EAN: 4260456386417 \t
- Packaging dimensions: H: 305mm/ W: 202mm/ D: 176mm \t
- Packaging weight: 2420g
Certificates:
- \t
- IP69K waterproof and dust resistance test for the camera (during high pressure/ steam jet cleaning, specific to road vehicles). \t
- Salt spray test \t
- ROHS \t
- CE \t
- E-Mark
Scope of delivery:
- \t

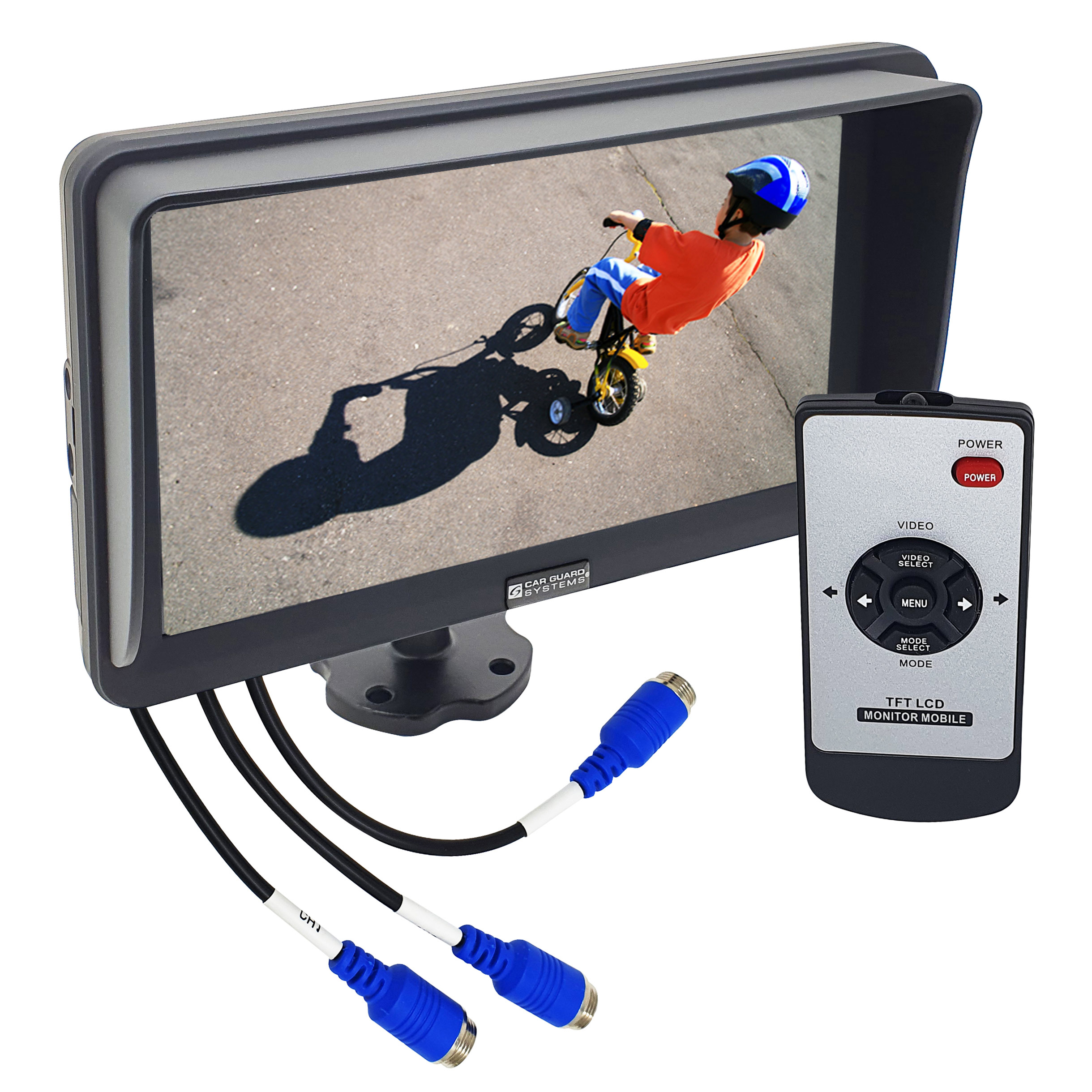

- 1x 7 inch monitor \t
- 1x connection cable \t
- 1x remote control \t
- 1x monitor bracket \t
- 4x self-tapping screws \t
- 1x colour rear view camera (9-32V) \t
- 1x 20 metre connection cable with 4 pin aviation connector \t
- 1x rubber sealing plate for the mounting foot \t
- 1x sealing ring for the cable feed-through \t
- 4x set of screws for mounting on the vehicle (2x for sheet metal/ 2x for PVC/ 2x with thread) \t
- 1x installation and operating instructions
