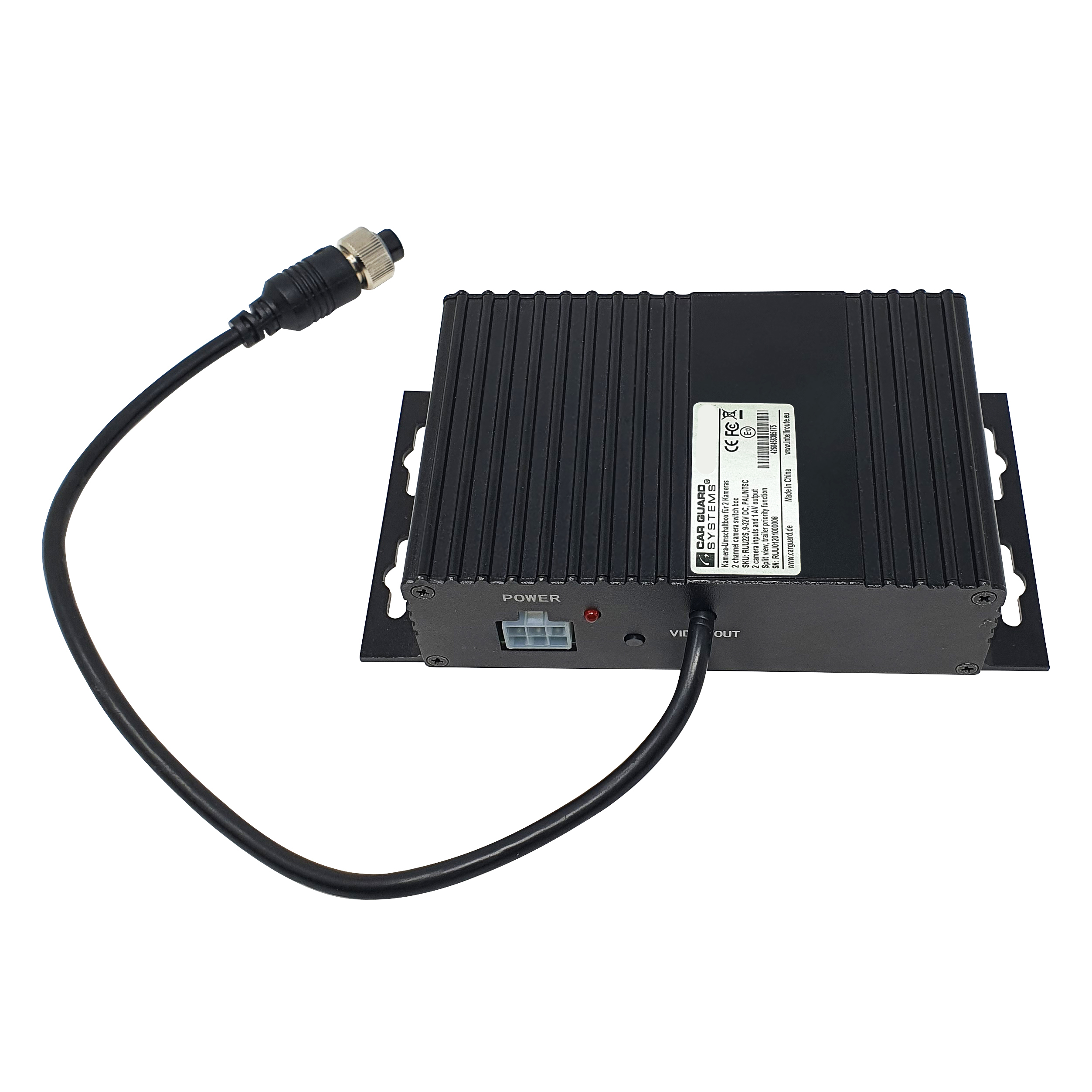

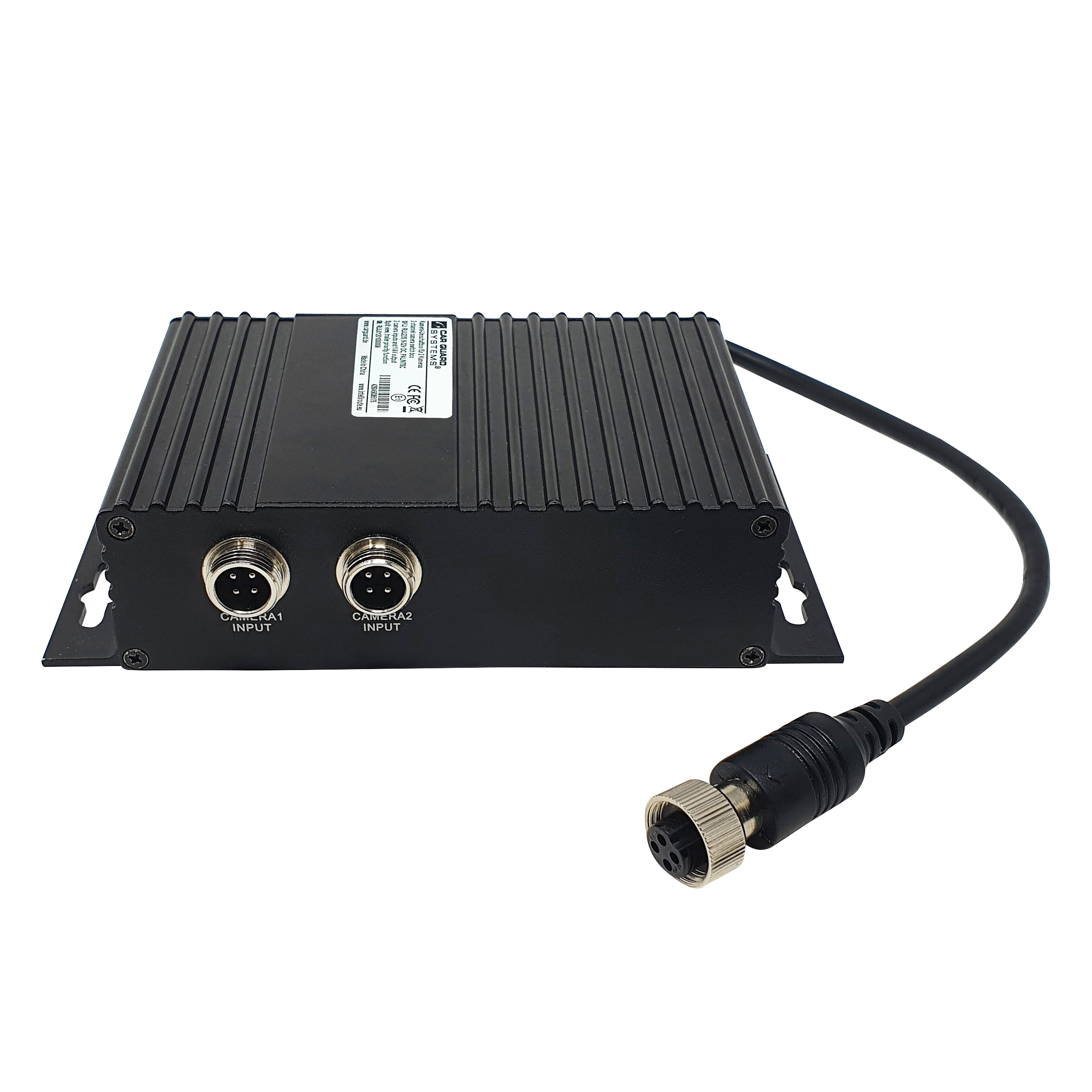

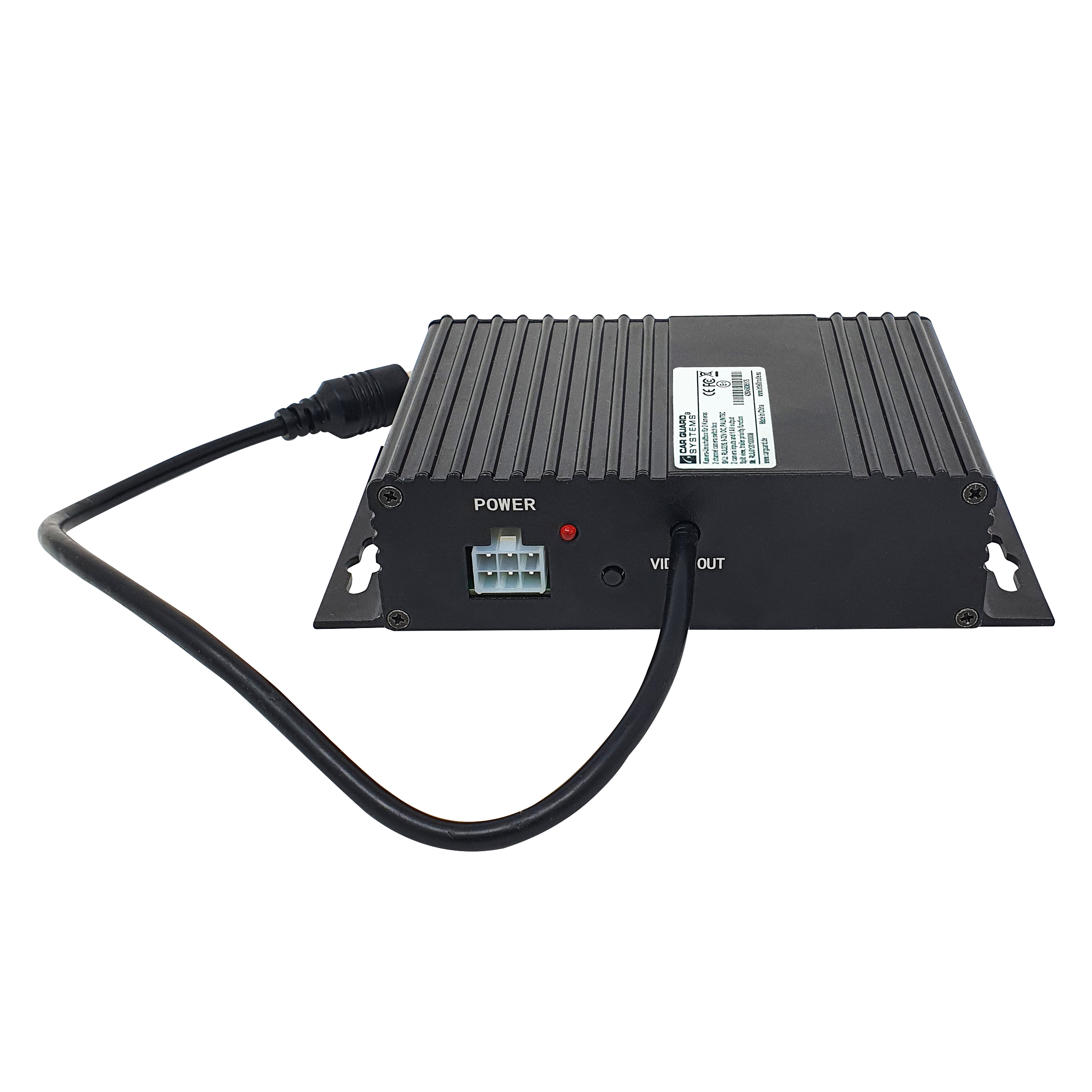

CARGUARD ANGEL VIEW camera switch box, 2-gang with split function

Function description:

Two images on one monitor. High quality. One video input - two cameras - no problem. The camera switch box allows you to view the images from two cameras on one monitor. When turning right, the simultaneous display of the front and side cameras is prioritised. If side or load compartment and rear cameras are connected, the rear camera has priority. To view the blind spots, 2 side cameras can also be connected. The camera is changed automatically via the 3 trigger cables - without your intervention. Optional adapters are available for connection to standard monitor infotainment systems of almost all vehicle manufacturers in the transport, construction machinery and agricultural industries.

If no video signal comes in, even though a trigger signal is present, the system automatically switches to a blue screen to indicate to the driver that the camera has been damaged or unplugged.

Device information:

\t
• Connects up to two cameras to a display unit with only one video input.
\t
• 2 camera inputs
\t
• 3 control inputs
\t
• Integrated power supply for cameras
\t
• Automatically switches to the activated camera
\t
• Manual camera selection via push button on switch box
\t
• PAL to NTSC switchable via push-button on switchbox
\t
• Mirror/normal image can be selected separately for each camera via push-button on switchbox

Technical data:

• Operating temperature range: -20° to +70°.
• Standing temperature range: -30° to +80°
• Power output for cameras: max. 2x 500mA, 12V
• Video inputs: 2 video inputs for cameras; peak value - 1Vp-p; impedance: 75 Ohm
• 1 video output: peak value: 1Vp-p, impedance: 75 Ohm
• 1 audio output camera 1: peak value: 1Vp-p, impedance: 75 Ohm : 4.7K Ohm

Product dimensions and weight:

\t
• Dimensions: 147mm x 80mm x 35mm
\t
• Weight: 299g

Logistics and packaging:

\t
• Item number: RUU22S
\t
• EAN: 4260456385175
\t
• Packaging weight: 535g
\t
• Packaging dimensions: 168mm x 115mm x 77mm

Certificates:

\t
• ROHS
\t
• CE
\t
• E-Mark

Scope of delivery:

\t
• 1 x camera switch box, 2-gang (art. no. RUUSS2)
\t
• 1 x trigger cable harness (art. no. RUERU22S-001)
\t
• 1 x Adapter from 4-pin CGS screw connector to 2x cinch plug and 1x DC socket (art. no. RUAD-000)
