Item number RUANKUA2
CARGUARD ANGEL VIEW ™ trailer cable for 2 cameras
Our trailer cables, which were developed for use in the professional field, allow you to operate up to two rear view cameras on a towing vehicle with trailer.
The set offered includes, in addition to the spiral cable with a length of 5 meters, a 4-pin connection cable with a length of 20 meters, as well as junction boxes by using the highest quality materials, we can offer you OEM quality.

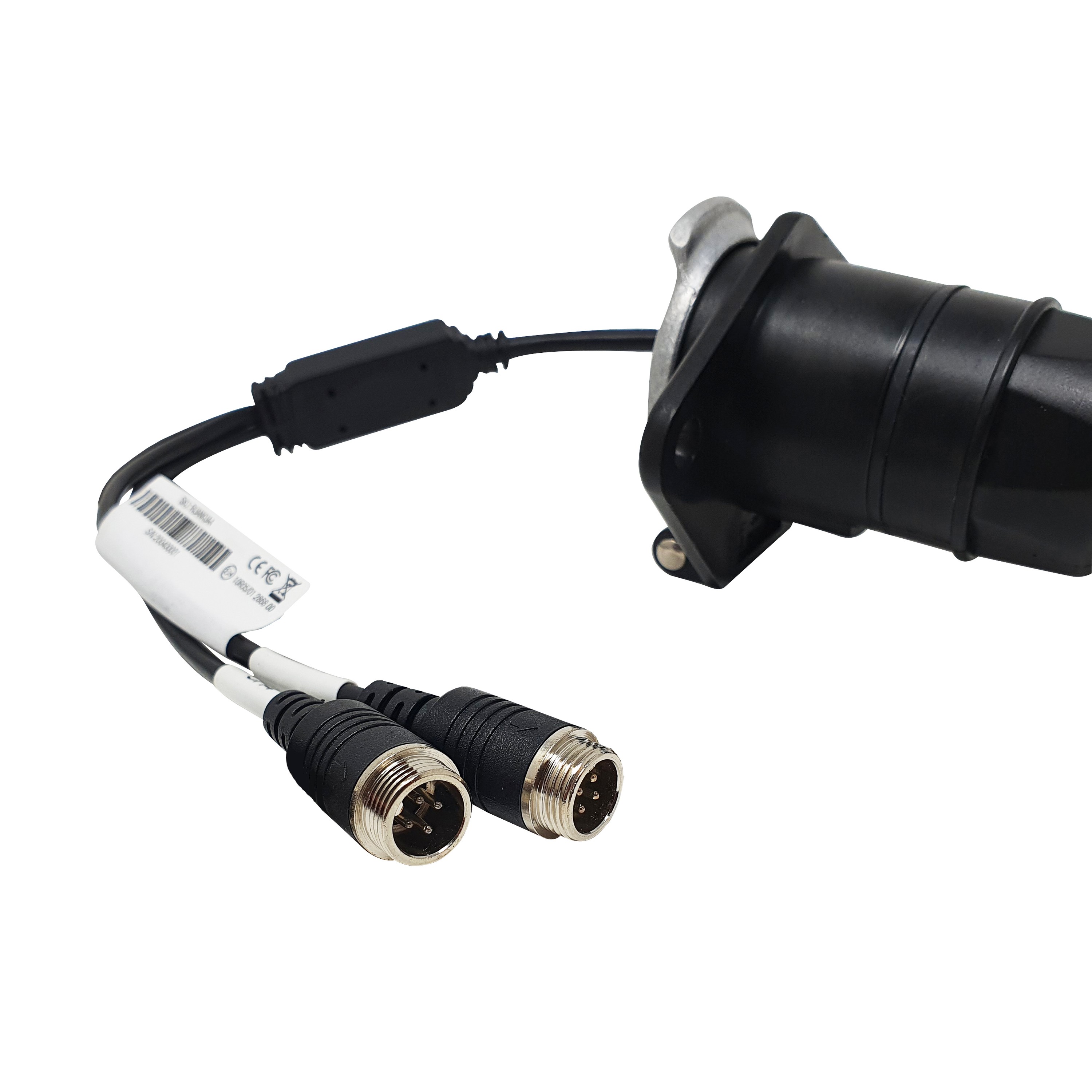

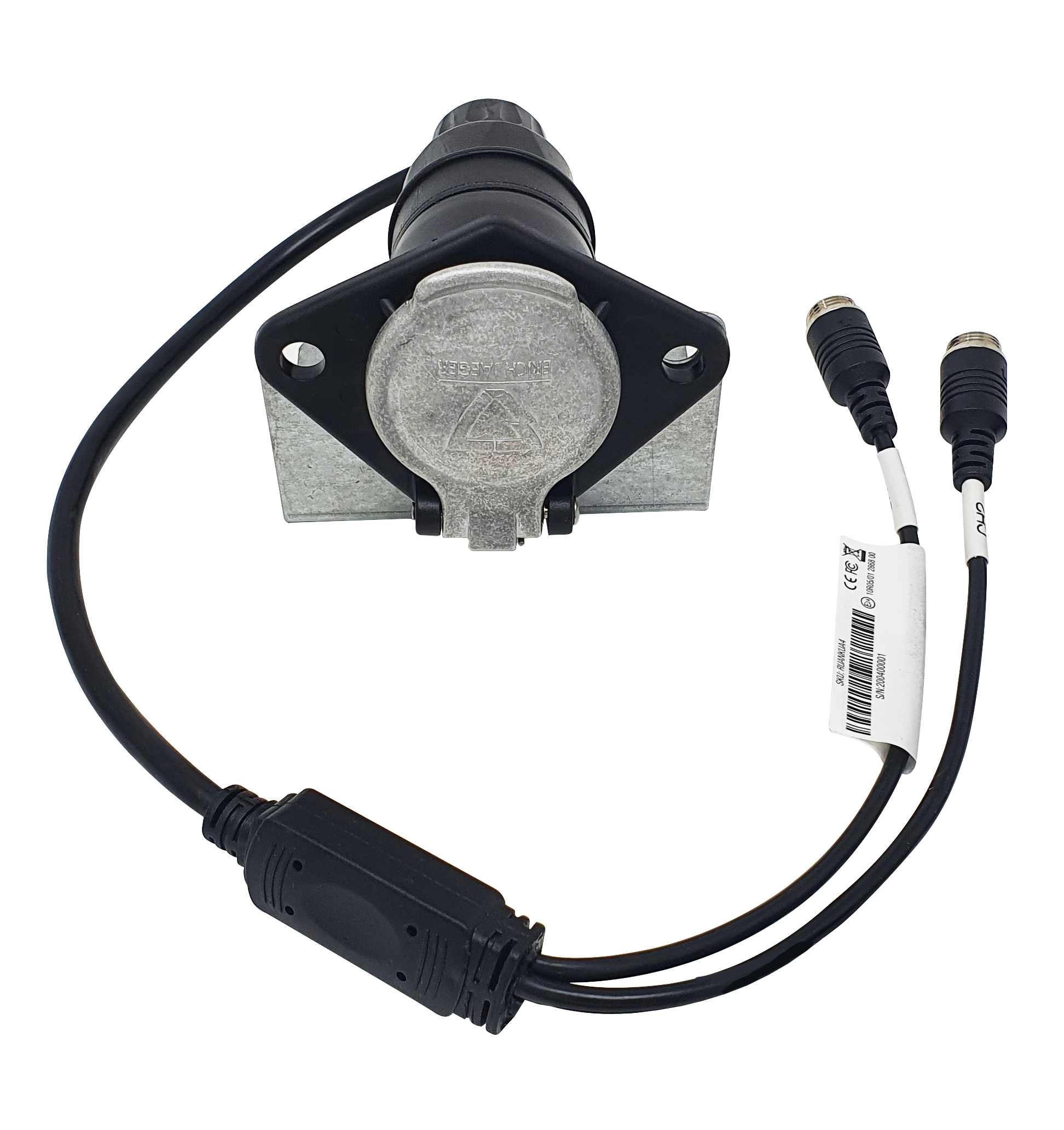

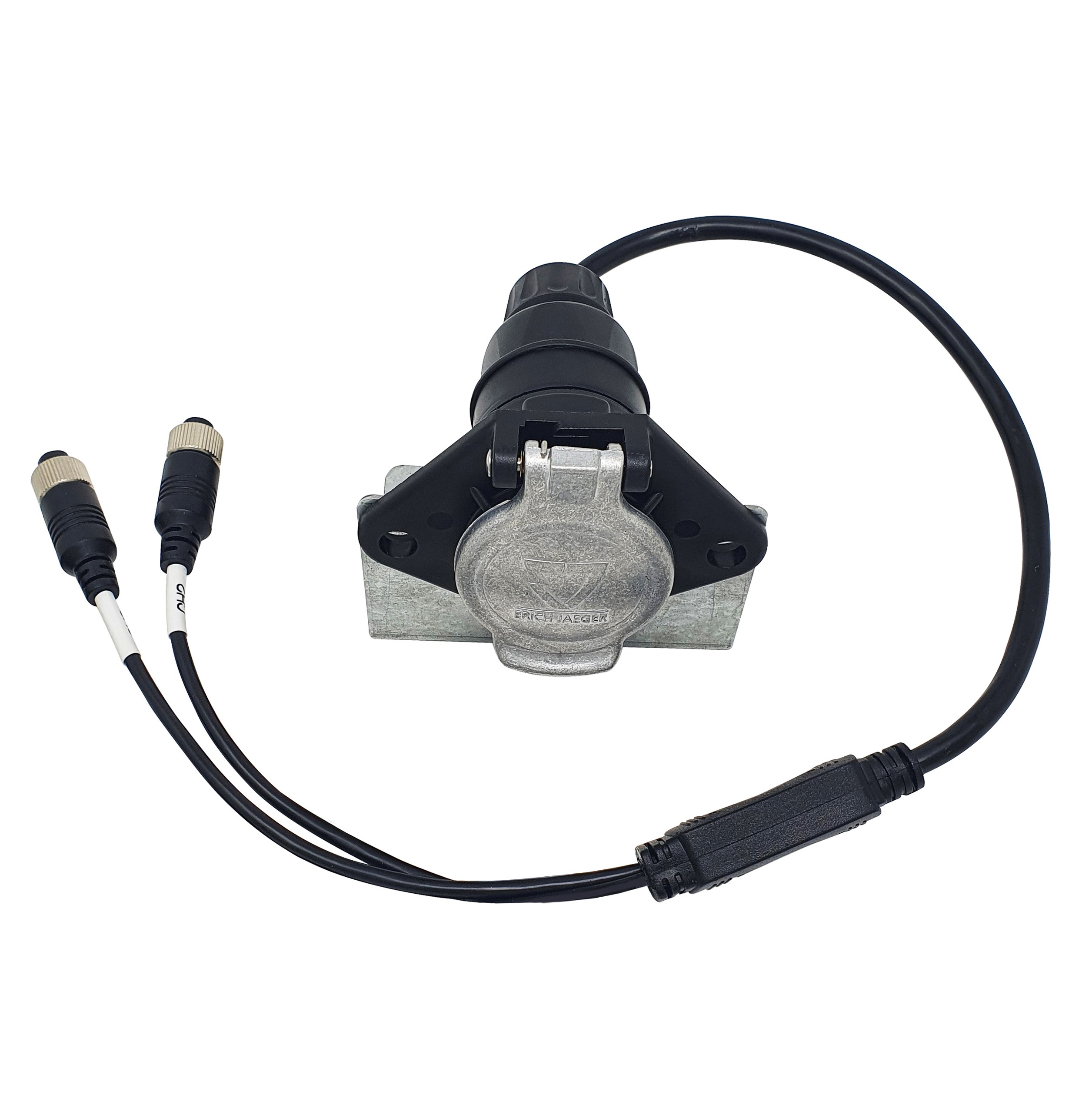

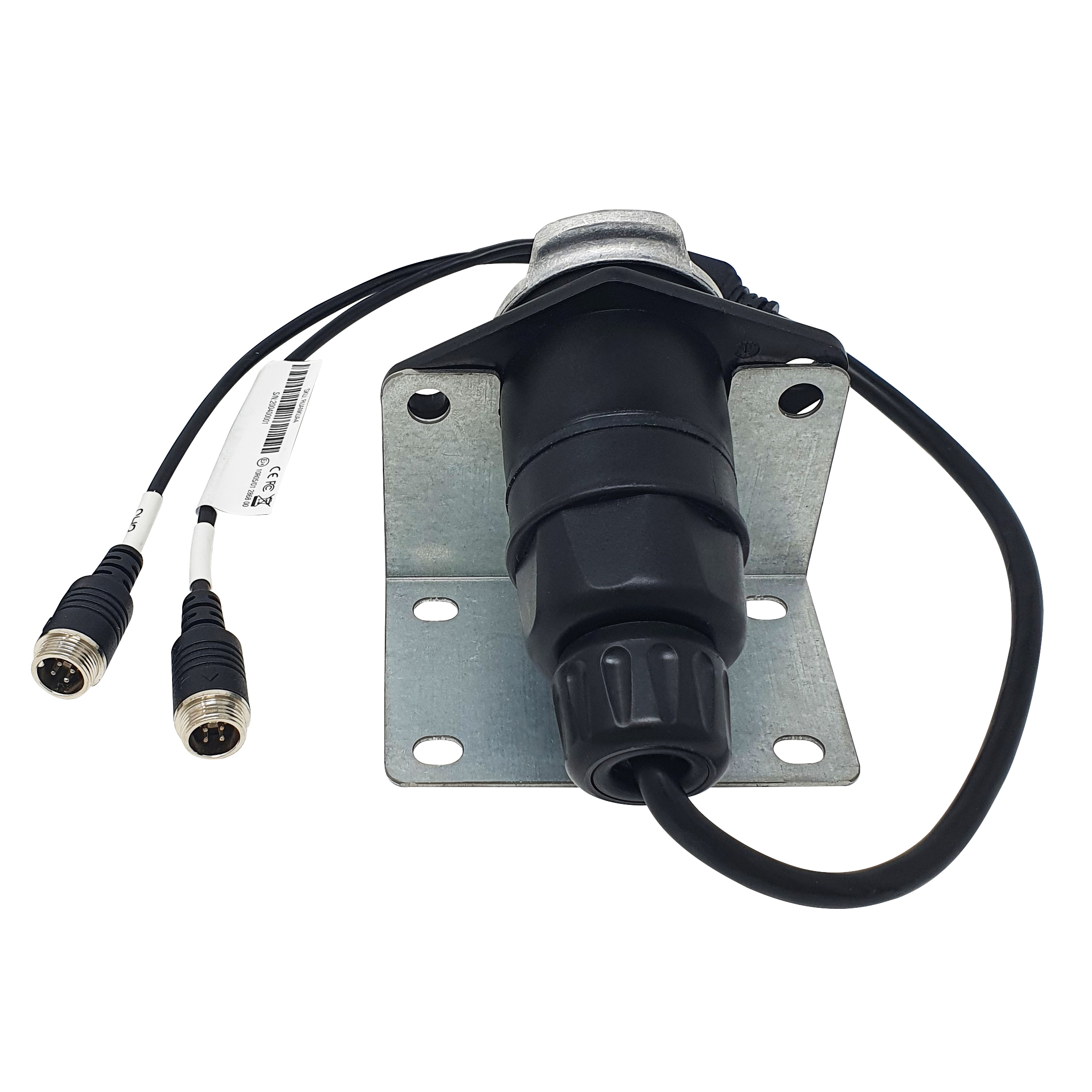

One of the two supplied junction boxes is attached to the towing vehicle, the other to the trailer. Through the fully galvanized steel brackets already included in the delivery as well as the mounting screws, you can install them in the positions you want.

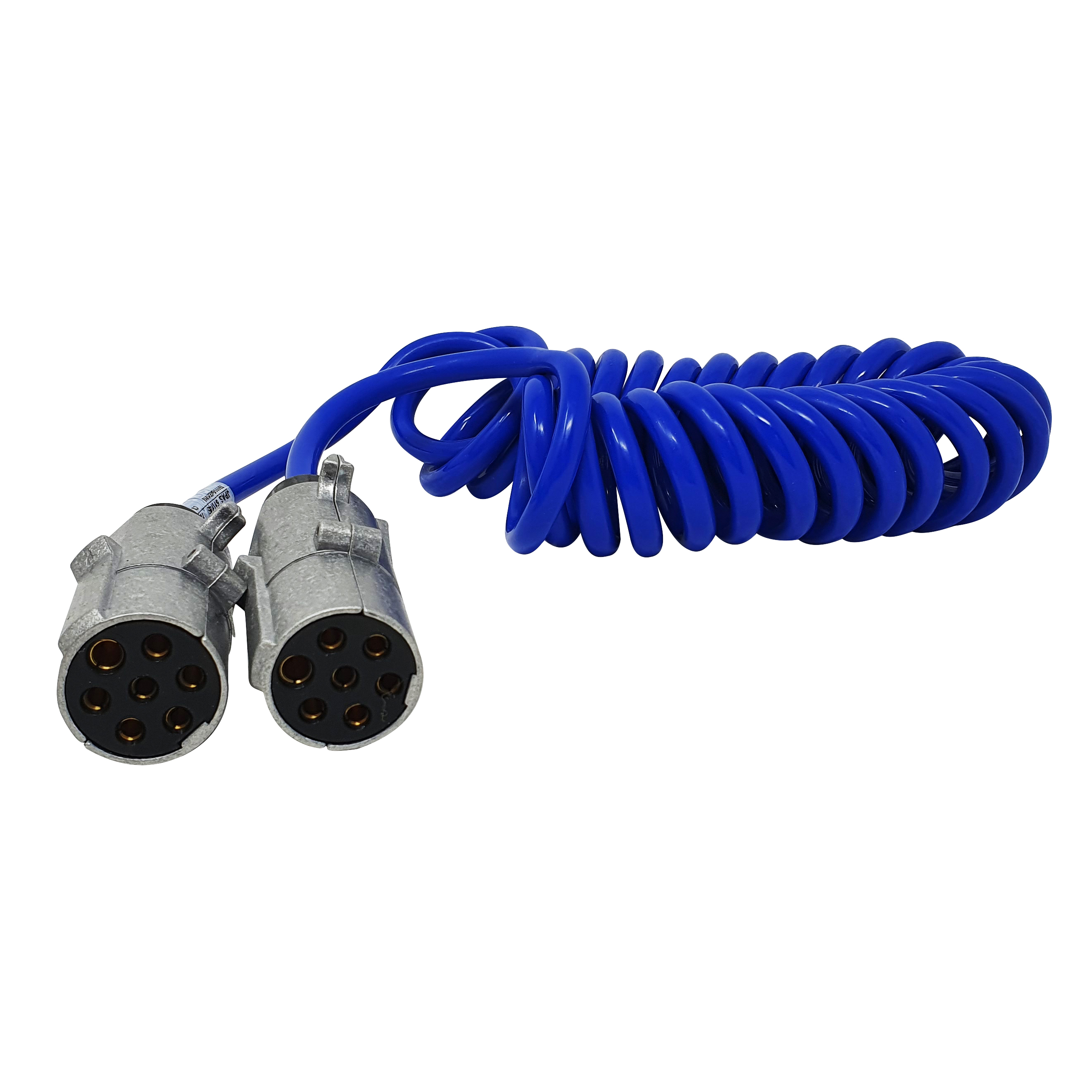

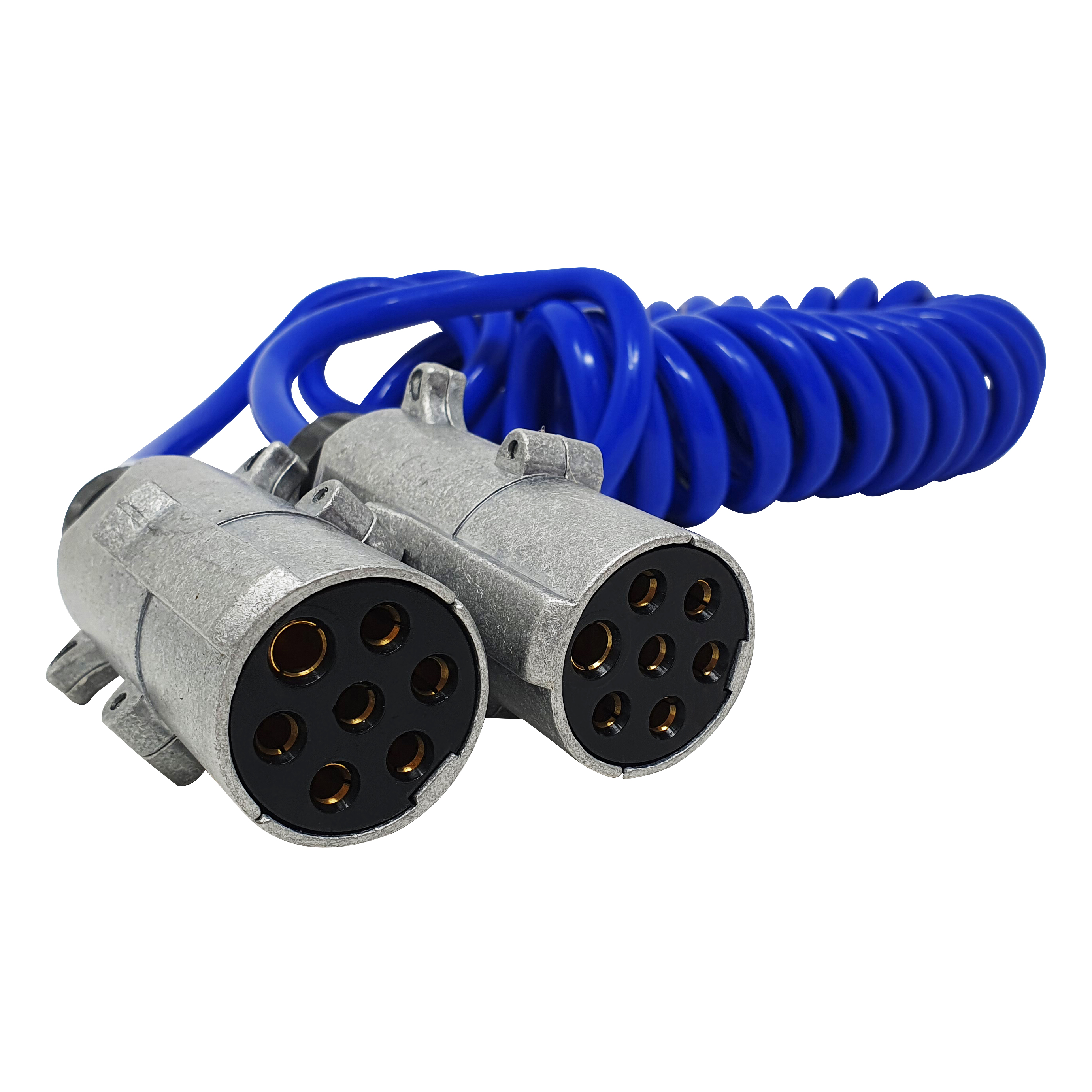

The highly flexible spiral cable only needs to be plugged in, and allows you to efficiently connect and disconnect the trailer. By using waterproof metal closures on the spiral cable junction boxes as well as the trailer cable, you don't have to worry about potential damage from water ingress.
In addition, the trailer cable junction is ADR compliant, making it suitable for use in hazardous materials transportation.
By using the trailer cable, you can enable audio and video signals and also the power supply of the cameras optimally. Through our optional priority box, you can also define certain functions such as the insertion of reverse gear or even the attachment and detachment of the trailer, and automatically activate or switch on the desired camera.
Through the use of waterproof screw connections on all our REAR ANGEL VIEW™ - cameras with the 4-pin connection cables, you can adapt any camera models, which have a 4-pin screw cap.
Product Dimensions and Weight:
- Dimensions: 5000mm x 95mm x 70mm
- Weight: 2170g

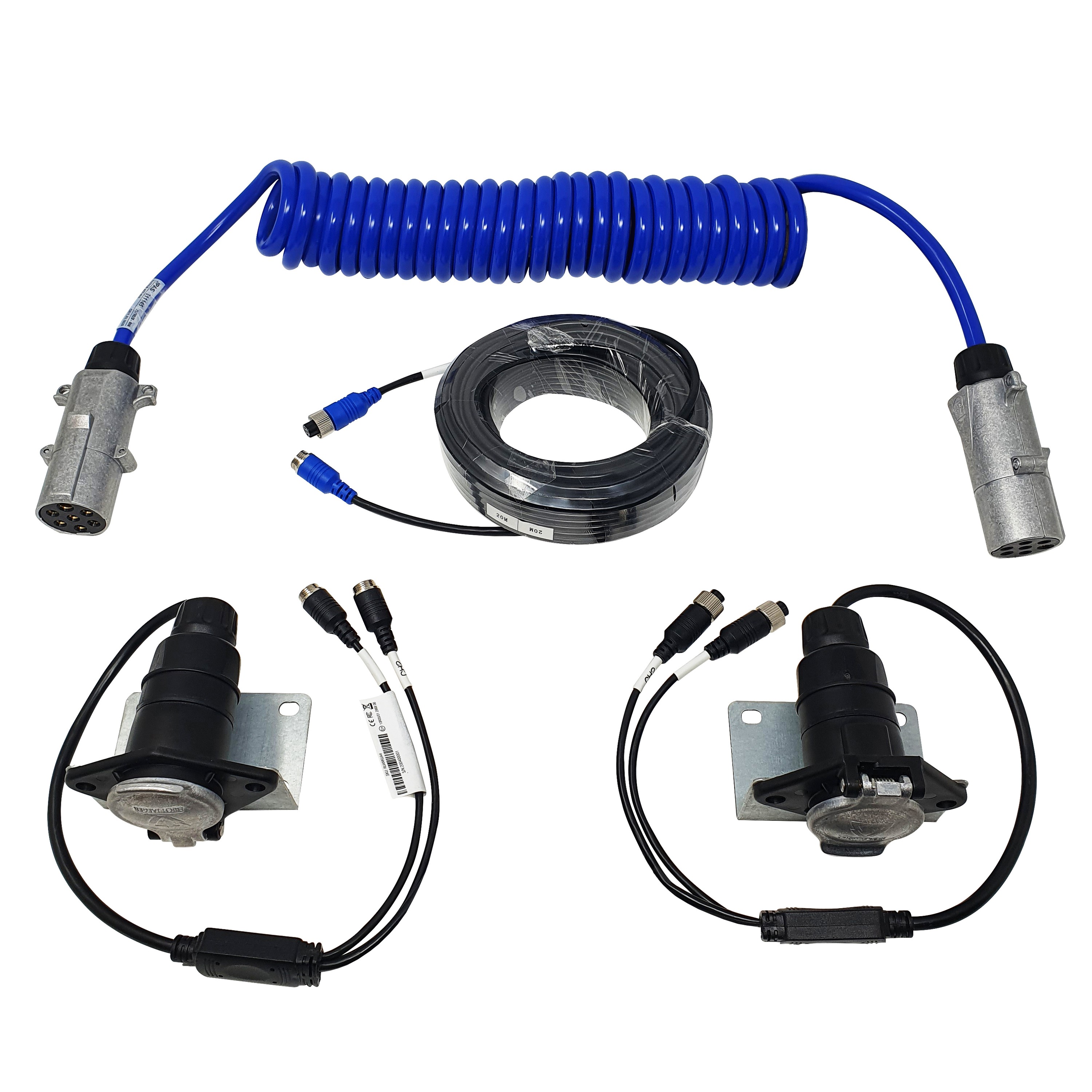

Scope of Delivery:
- 1 x trailer spiral cable (5 meters)
- 1 x 2-slot trailer junction box with 20 meters cable towing vehicle
- 1 x 2- compartment trailer junction box trailer/semitrailer
- 2 x mounting brackets for trailer junction box
- 4 x M7 threaded screws
- 4 x M7 threaded nuts
- 4 x M7 washers
- 8 x M5 threaded screws
- 8 x M5 threaded nuts
- 8 x M5 washers
- 1x installation and instruction manual
- Part number: RUANKUA2
- EAN: 4260456384956
- Packaging weight: 2650 g
- Packaging dimensions: 223mm x 305mm x 90mm
Item number RUANKUA2
|Manufacturer||CAR GUARD SYSTEMS|
