CARGUARD SYSTEMS
Side and rear view camera RAV-K by CARGUARD Systems with 700TVL for analogue monitors, 100°, black, 9-32V, PAL
Item number RUK13433PT
EUR 169.00
*
Content
1 piece
Ready for shipping, delivery in 48h
* Incl. VAT excl. Shipping
Item number RUK13433PT
Rear view camera as parking aid and for observing traffic behind for analogue camera inputs
CARGUARD REAR ANGEL VIEW RAV-K side and rear view camera 700 TVL, 100°, black, 9-32V, PAL for analogue camera inputs
Functional description:

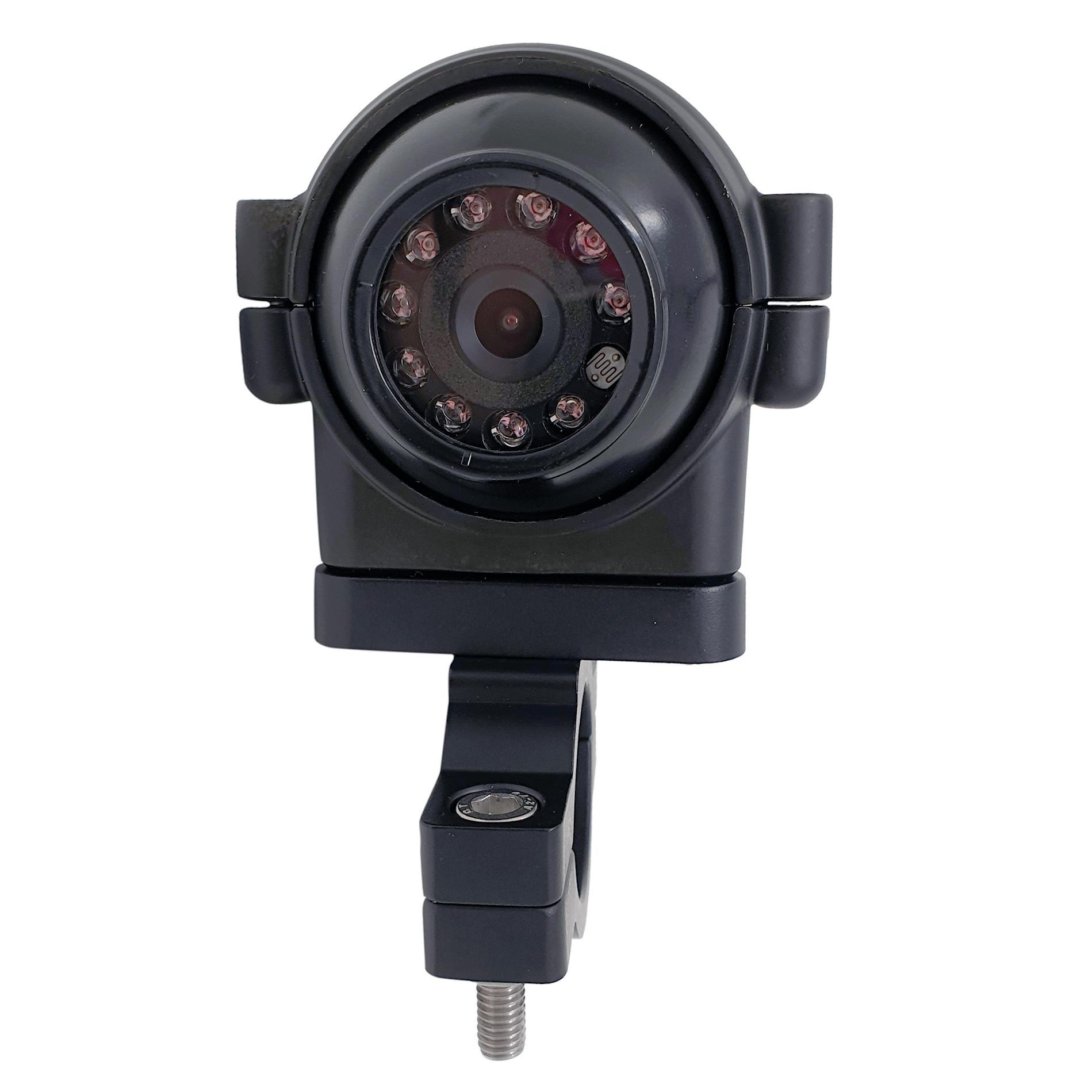

The extremely robust, high-quality camera, which can be aligned in all directions, enables use on vehicles in many industries thanks to various mounting options.
With our 360° spherical cameras, you can upgrade multimedia systems and standard OEM navigation systems from numerous manufacturers to a fully-fledged video system. You can get the right adapter for almost any monitor or vehicle model.
Many of our navigation models have a camera input. Our AHD monitors are suitable for the full HD versions.
For the use of several cameras, we offer various switch boxes individually tailored to your needs.
Device information:
- \t
- Outstanding resolution: 610,000 pixels with 700 TV lines. \t
- Power supply: DC 9-32V +/- 10% \t
- Lens coverage: 70° (vertical) / 85° (horizontal) 100° (diagonal) \t
- Designed to meet IP69K, the highest protection standard for automotive components \t
- Protection against water from high-pressure cleaners \t
- Protection against permanent submersion \t
- Protection against foreign bodies: absolutely dust-tight \t

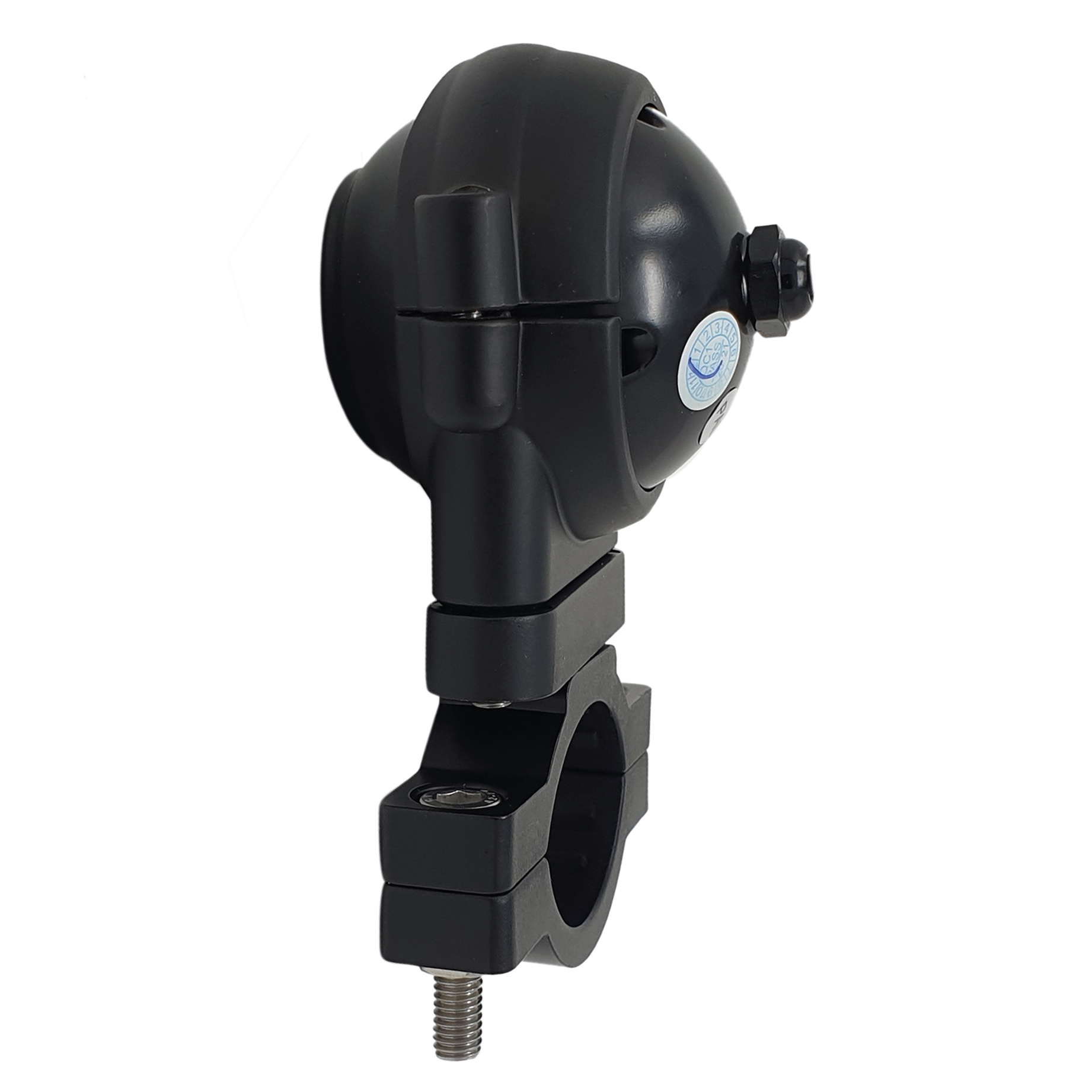

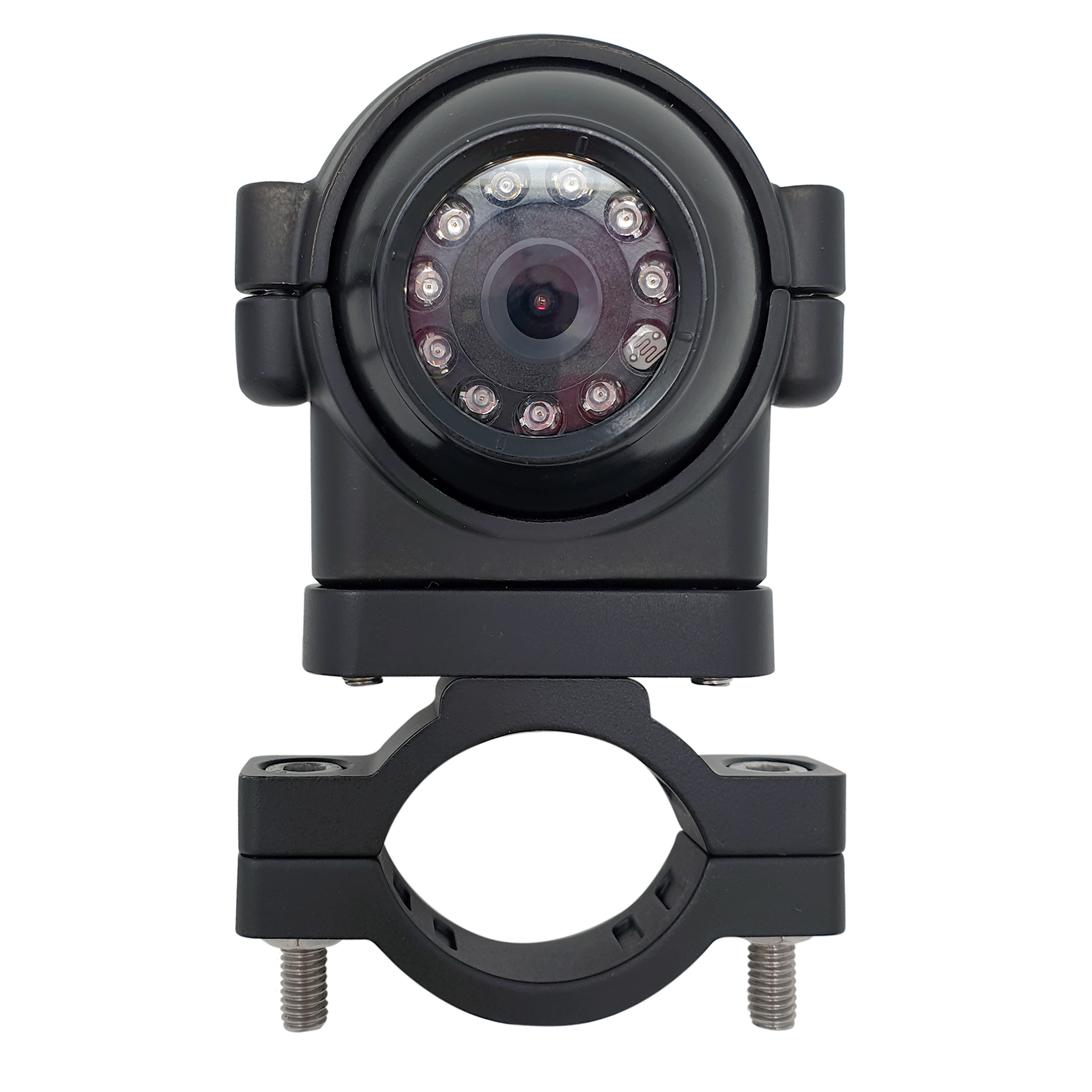

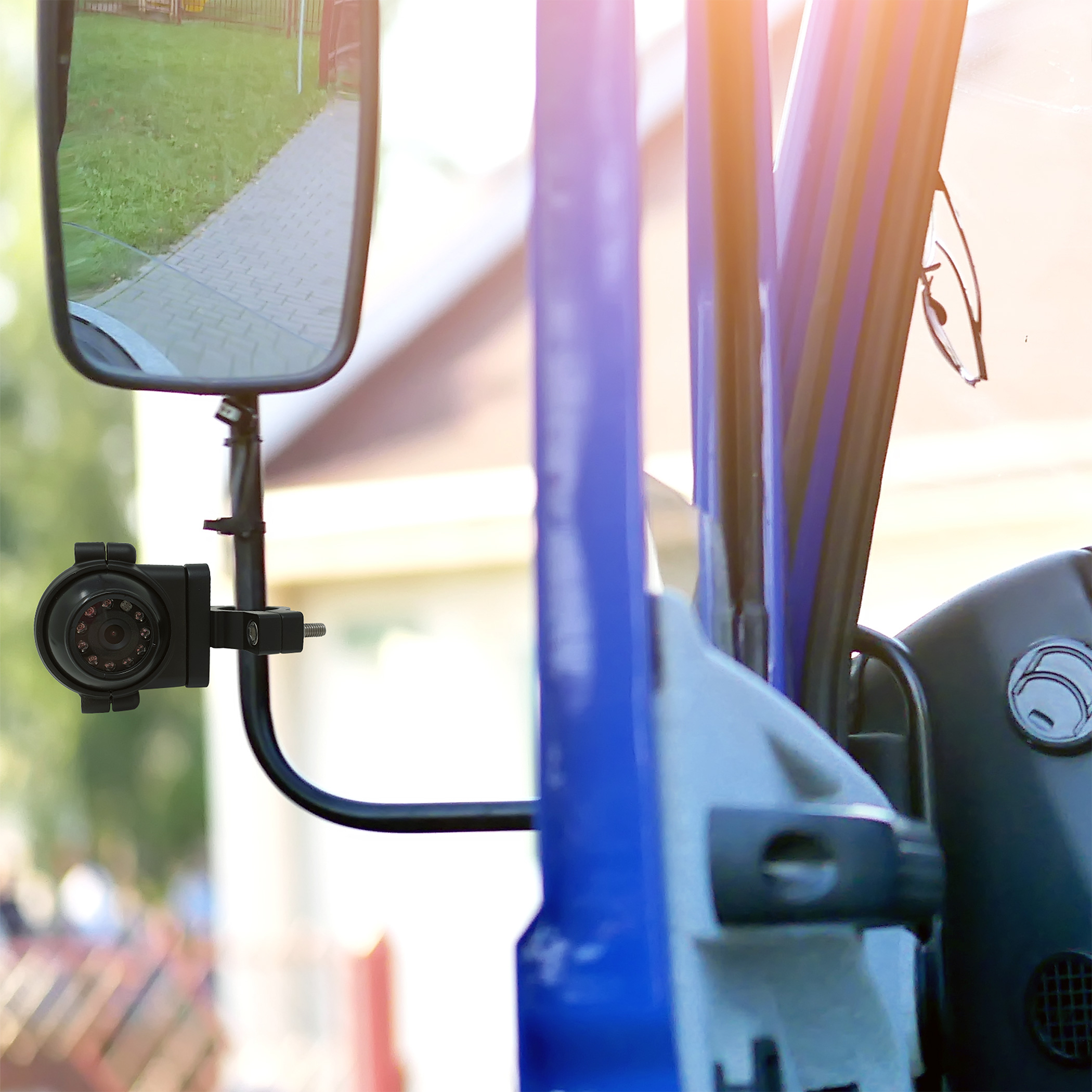

- Rustproof tube holder allows multiple mounting options (for 20-30mm tubes) \t
- Can be mounted with or without tube holder \t
- Extremely resistant to branches, storm, dirt, winter weather and rain \t
- waterproof screw connections \t
- Image sensor size 700 TVL: 1/3 inch Sony CCD 810 \t
- image sensor size 1080 TVL: 1/3 inch Sony MIX 225 \t
- fast image transmission in real time \t

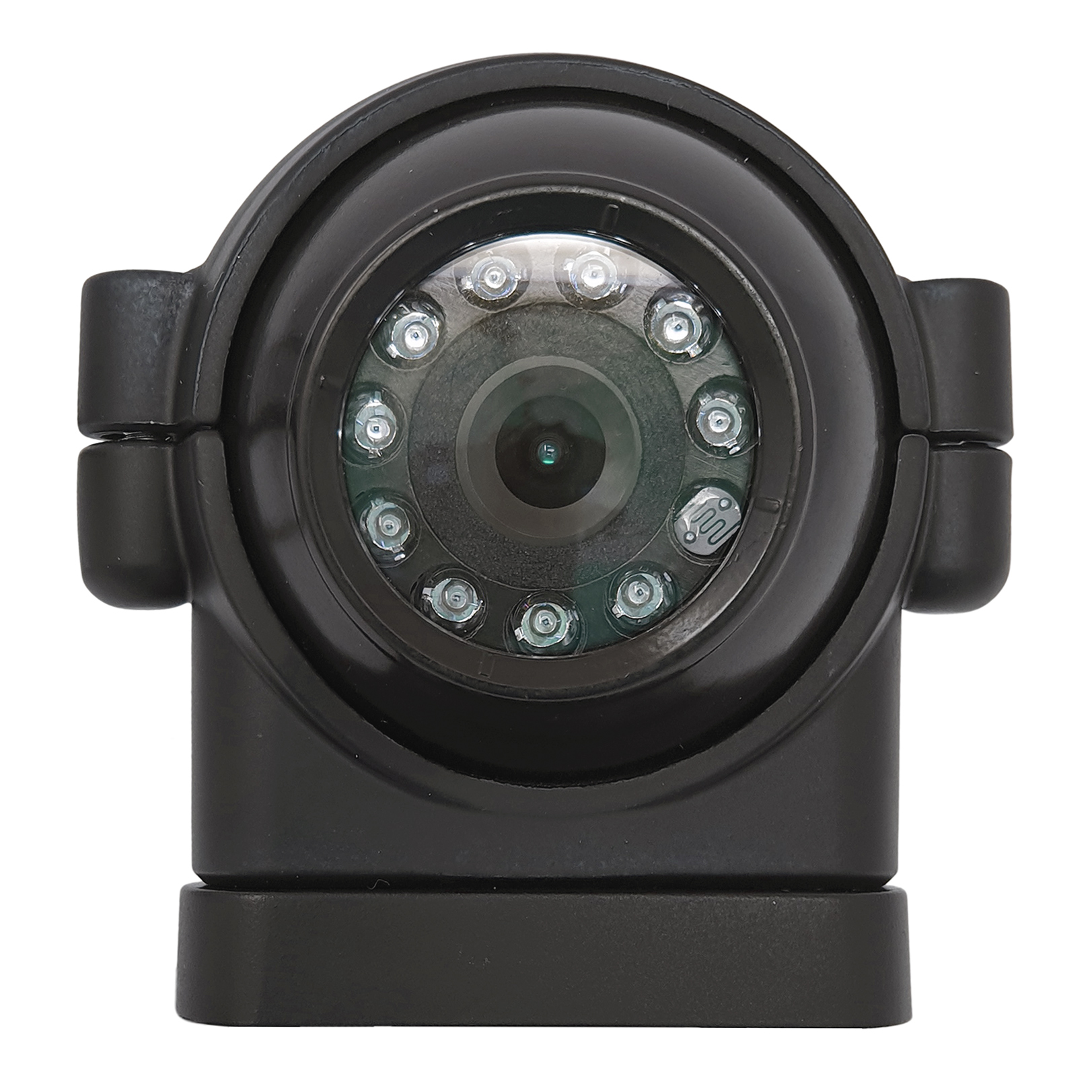

- 11 infrared LEDs of highest quality guarantee a very good image even in darkness \t
- Night vision up to 12 m \t
- Light sensitivity: 0 lux (night), 0.1 lux (day) \t
- Vibration resistant up to 6G (700TVL) / up to 8G (1080p) \t
- shock resistant up to 80G \t
- integrated heater for clear view (active below 10°C) \t
- automatic backlight compensation \t
- automatic brightness and white balance \t
- TV system: PAL (NTSC available on request) \t
- anti-fog lotus coating \t
- Focal length: f= 2.8 mm (700TVL) / f=3.6 mm (1080p) \t
- Power consumption: < 2.5 W \t
- No power supply necessary on camera side \t
- Video signal output: 1 Vp-p, 75 Ohm \t
- Power consumption in operation: 88 mA during the day, 128 mA at night, maximum: 250 mA \t
- Operating temperature range: -20° C to 75° C, max. relative humidity 95% \t
- Standing temperature range: -40° C to 80° C, max. relative humidity 95% \t
- Scanning system: 2:1 interlace 700TVL / progressive 1080p \t
- Synchronisation: internal \t
- horizontal synchronisation frequency: 15.6 / 15.7 kHz \t
- vertical synchronisation frequency: 50 Hz / 60 Hz \t
- gamma: 0.45 \t
- Gain control: automatic \t
- signal-to-noise ratio: 48 dB 700TVL / 52 dB 1080p \t
- electronic shutter speed: 1/50 (PAL) ~ 1/100,000s \t
- optional adapters for nearly all standard OEM screens \t
- optional adapters for standard pre-installed camera cables of e.g. Orlaco, Dometic, Brigade, Axion, Mekra and Car Guard Systems (also old models)
Product dimensions and weight:
- \t
- with tube holder (mm): H: 115/ W: 72/ D: 50 \t
- without tube holder (mm): H: 73/ W: 72/ D: 50 \t
- Weight with tube holder: 330g \t
- Weight without tube holder: 235g
Logistics & Packaging:
- \t
- Item number: RUK13433PT \t
- EAN: 4260456385052 \t
- Weight with tube holder: 1325g \t
- Weight without tube holder: 1230g
Certificates:
- \t
- IP69K waterproof and dust resistance test (for high pressure/steam cleaning, specific to road vehicles). \t
- Salt spray test certificate \t
- ROHS \t
- CE \t
- E-Mark
Scope of delivery:
- \t
- Colour rear view camera (9-32V) \t
- 20 metre connection cable with 4 pin CGS screw connector (art. no.: RUVKA20) \t
- Adapter to Cinch plug \t
- Sealing ring for cable gland \t
- Pipe clamp bracket \t
- 2 reducing shells for mounting on thinner tubes \t
- 2 rubber strips for mounting on thinner tubes \t
- 3 Allen screws \t
- 3 Allen key \t
- Installation and operating instructions
Item number RUK13433PT
Item ID | 1308 |
Model | 4260456385052 |
Manufacturer | CARGUARD SYSTEMS |
Content | 1 piece |
