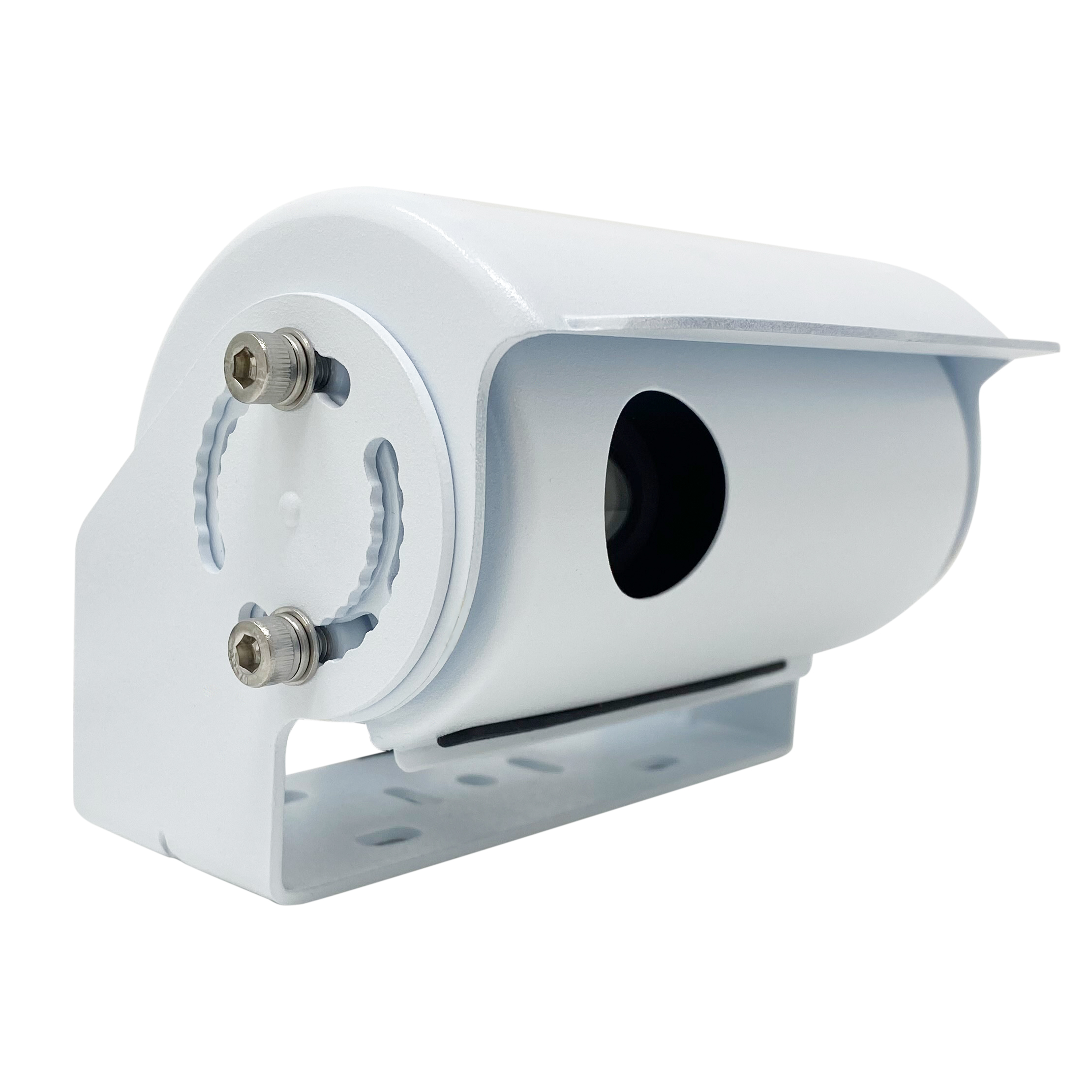

RAV-MD2 shutter double rear view camera white, 700TVL, for navigation systems, moniceivers and monitors with 2 camera inputs, 9-32V, PAL

Item number RUMD223323P

EUR 461.34 *
Content 1 piece
Ready for shipping, delivery in 48h

* Excl. VAT excl. Shipping

Item number RUMD223323P

Color rear view camera as a parking aid and to observe the rear traffic

REAR Angel view ™ RAV-MD2 shutter double rear view camera white, 700TVL, for Navis, Moniceiver and monitors with 2 camera inputs, 9-32V, PAL

Only for Navis, Moniceiver and monitors with 2 camera inputs, for vehicles without camera upgrade. Optional adapters are available for vehicles with camera pre-equipment. A re-routing of the extension cable is then no longer necessary.

Not for mobile navigation systems (switch box required)

Functional description:

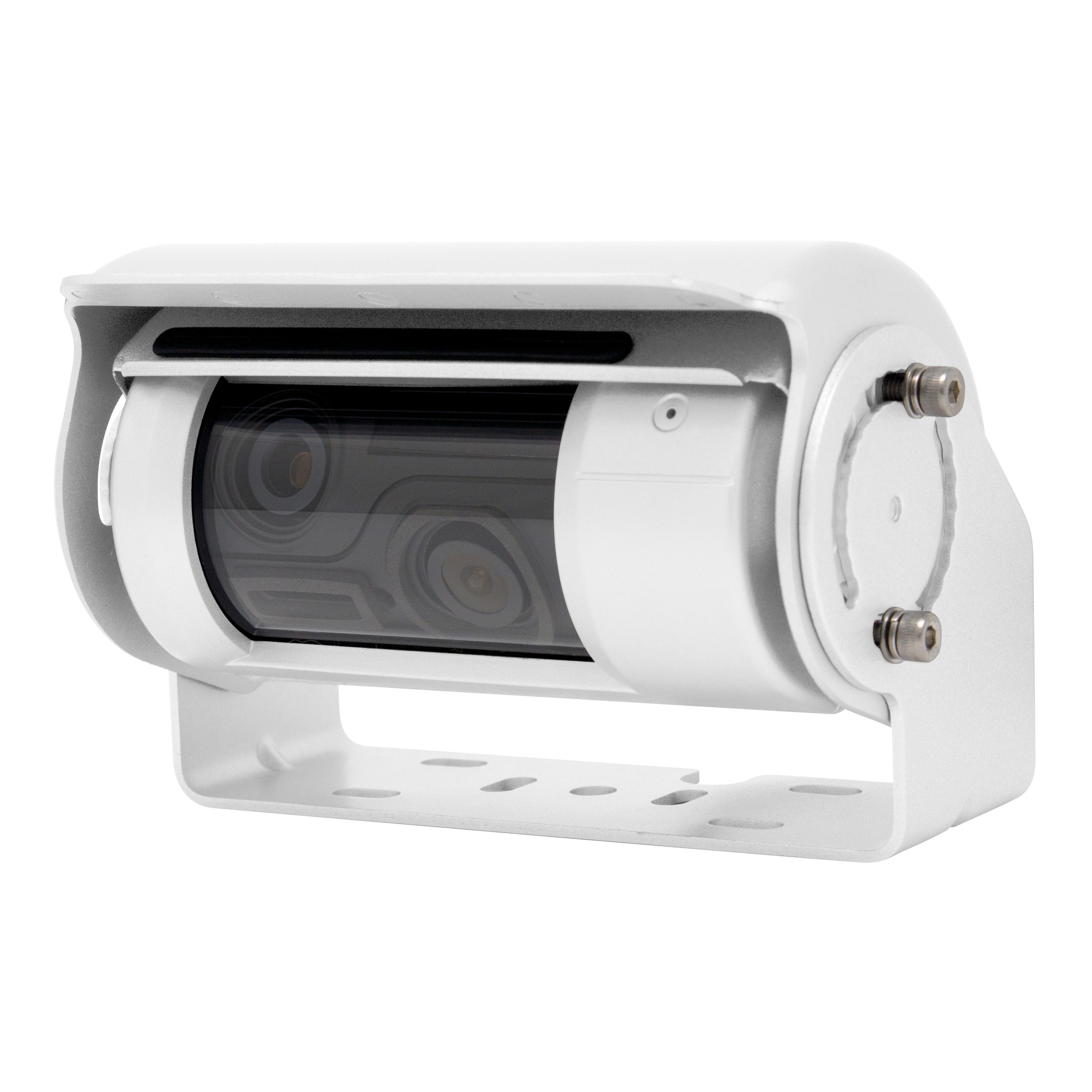

The extremely robust and high-quality shutter double rear view camera RAV-MD2 allows the use on vehicles of many industries through various mounting options and is also protected against high-pressure cleaning.

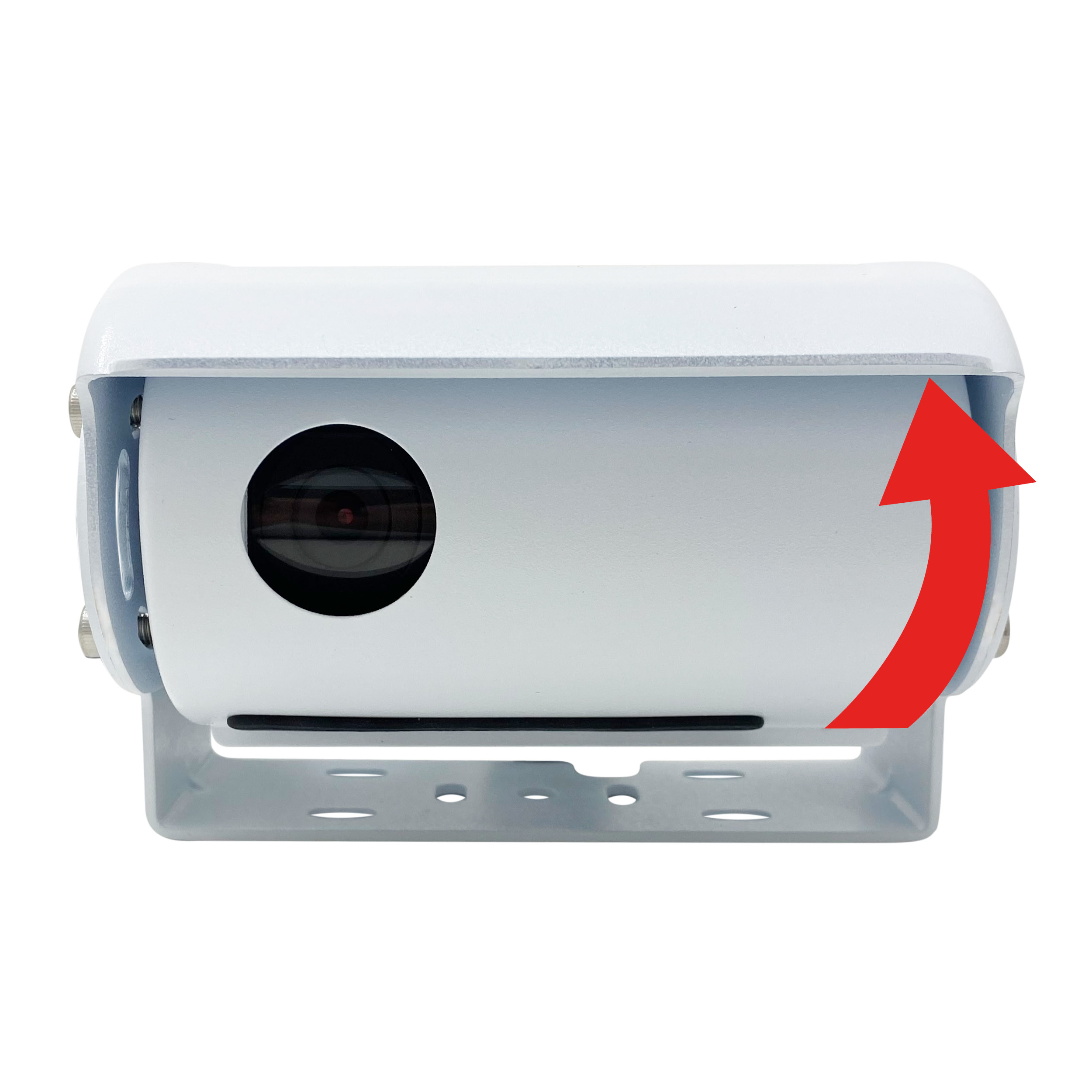

In the motorized shutter is a replaceable wiper rubber integrated, which guarantees the always an excellent view.

With our cameras you can upgrade multimedia systems and standard OEM navigation systems of numerous manufacturers to a full-fledged video system. For this, you can get the right adapter for almost any monitor or vehicle model.

Device information:

  • Constructed according to protection class IP69K, the highest protection standards for components on vehicles
  • Protection against water in high-pressure cleaners
  • Protection against permanent submersion
  • Protection against foreign bodies: Absolutely dustproof
  • Protection against touching/shaking
  • Using the highest quality Sony CCD electronics
  • Excellent resolution: 610. 000 pixels with 700 TV lines
  • Image sensor: high quality Sony 810 CCD sensor
  • Image size: 1/3 inch
  • Excellent infrared LEDs guarantee a perfect image even in the dark
  • Night vision up to 12 m
  • Powder-coated die-cast aluminum housing, feet and sunshields, Corrosion protected
  • Waterproof connectors
  • Light sensitivity 0 lux
  • Vibration resistant up to 7G
  • Shock resistant up to 100G
  • Automatic backlight compensation
  • Automatic brightness u. White balance
  • Mirrorable camera image
  • Built-in microphone
  • Heating against condensation, anti-fog lotus coating
  • Focal length camera 1: 2.6mm, F 2.0
  • Focal length camera 2: 2.9mm, F 5.5
  • Power consumption: < 4 W

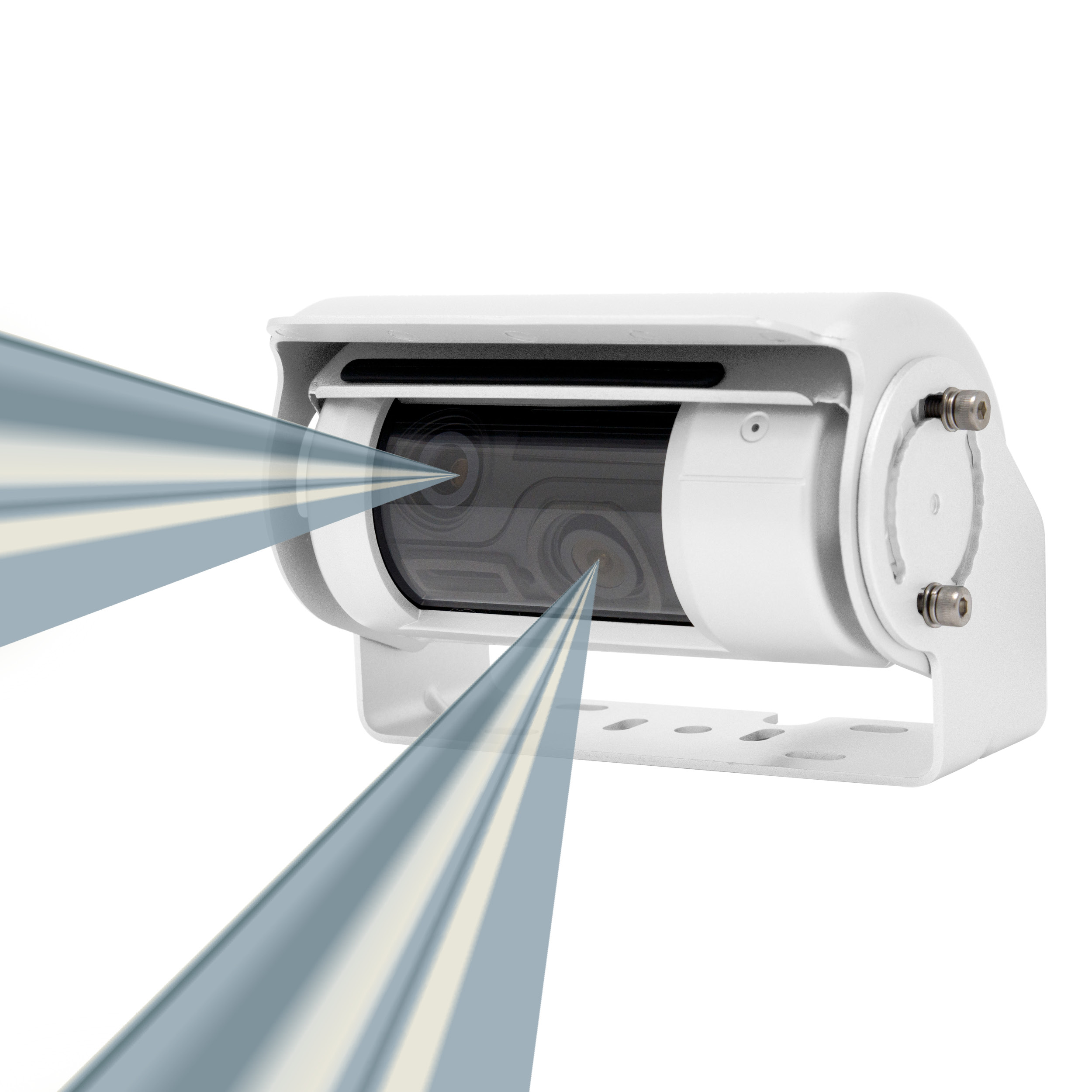

  • 150° angle of view for close range and 60° for long range
  • No power connection required at vehicle rear
  • Noise ratio: > 50 dB with automatic gain control
  • Video signal output: 1 Vp-p, 75 Ohm
  • Power supply: 9-32V +/-10%
  • Power consumption: < 2.0 W per camera
  • Dynamic range: 120 dB
  • Operating temperature range: -30 C° to 70 C°
  • Standing temperature range: -40 C° to 80 C°Constructed to IP69K, the highest protection standards for components on vehicles

Product dimensions and weight:

  • Length: 126 mm
  • Width: 85 mm
  • Height: 88 mm
  • Weight: 635 g


  • EAN: 4260456385137
  • Packaging length: 300 mm
  • Packaging width: 220 mm
  • Packaging height: 90 mm
  • Packaging weight 1952 g


  • IP69K waterproof and dust resistance test (for high pressure/steam cleaning, specific for road vehicles)
  • Salt vapor test certificate
  • RoHS
  • CE
  • E-Mark

Scope of delivery:

  • Color rear camera (9-32V)
  • 20 meters connection cable
  • Y-camera adapter
  • Sealing tape
  • Sealing rings for cable gland
  • Cinch to RCA cable
  • 2 pcs. Adapter 4Pin CGS to 6Pin
  • 3 pcs. Spare wiper blades shockproof up to 100G
  • 4 metal screws
  • 4 plastic screws
  • 4 fine thread screws M5

Item number RUMD223323P

Item ID 1316
Manufacturer Snooper
Content 1 piece
