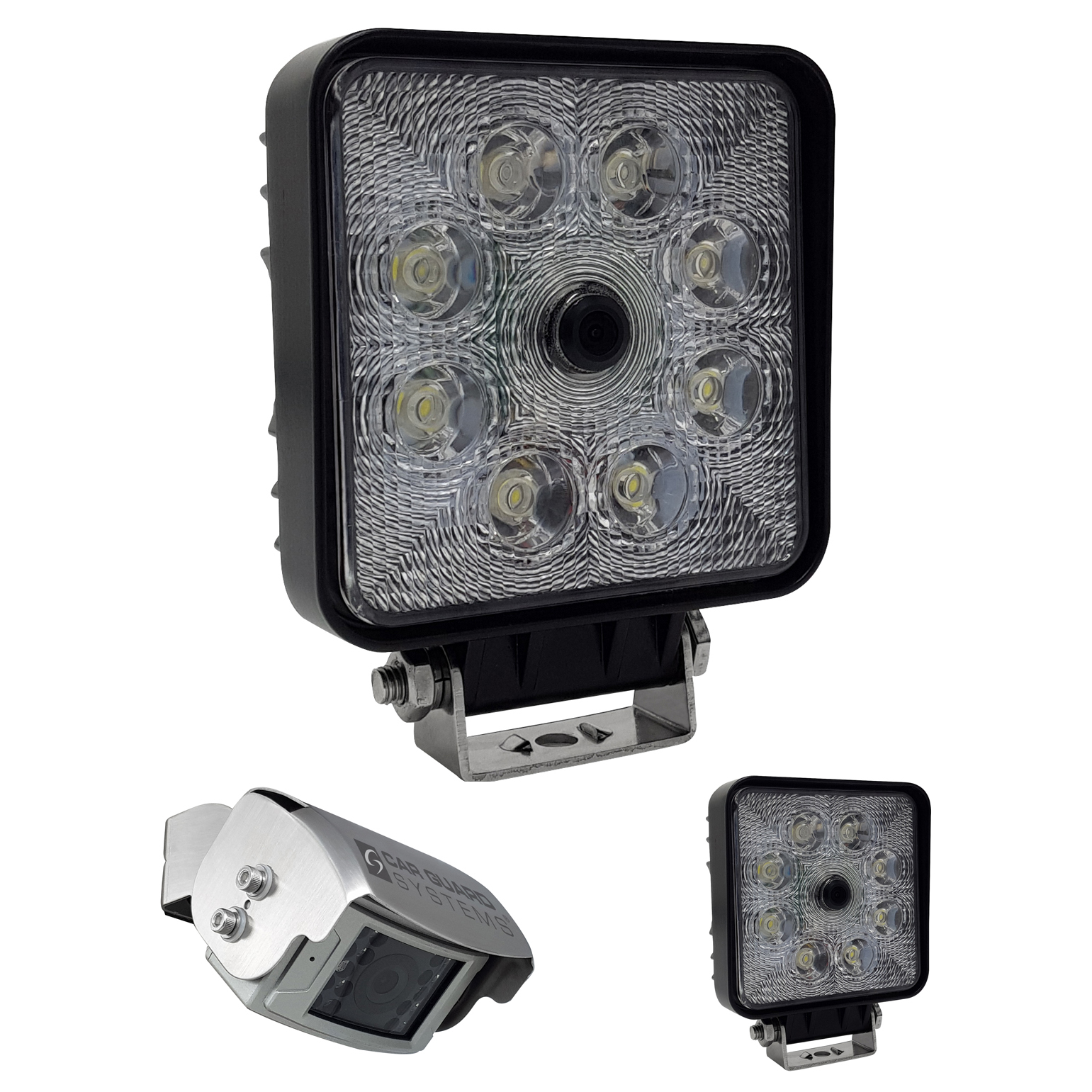

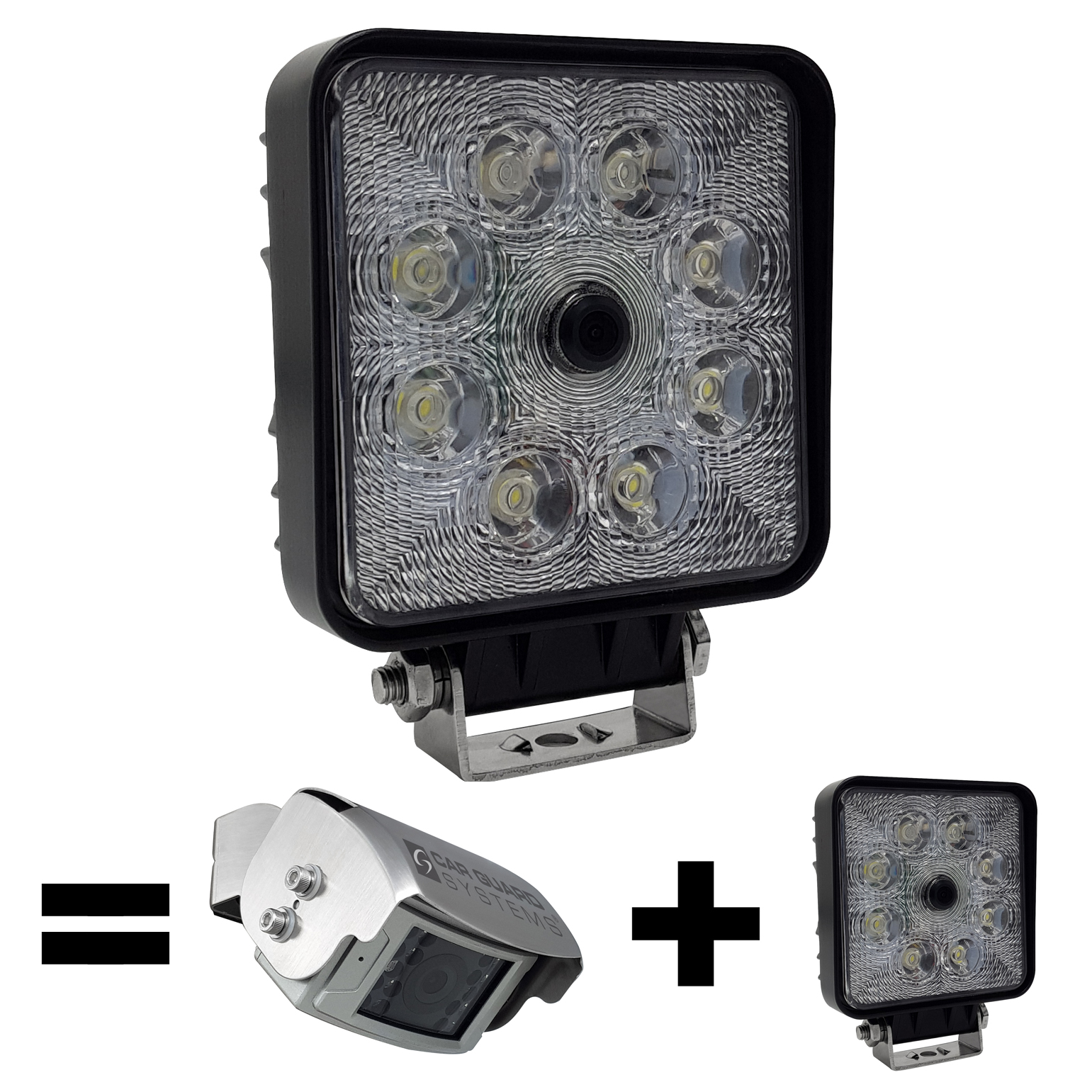

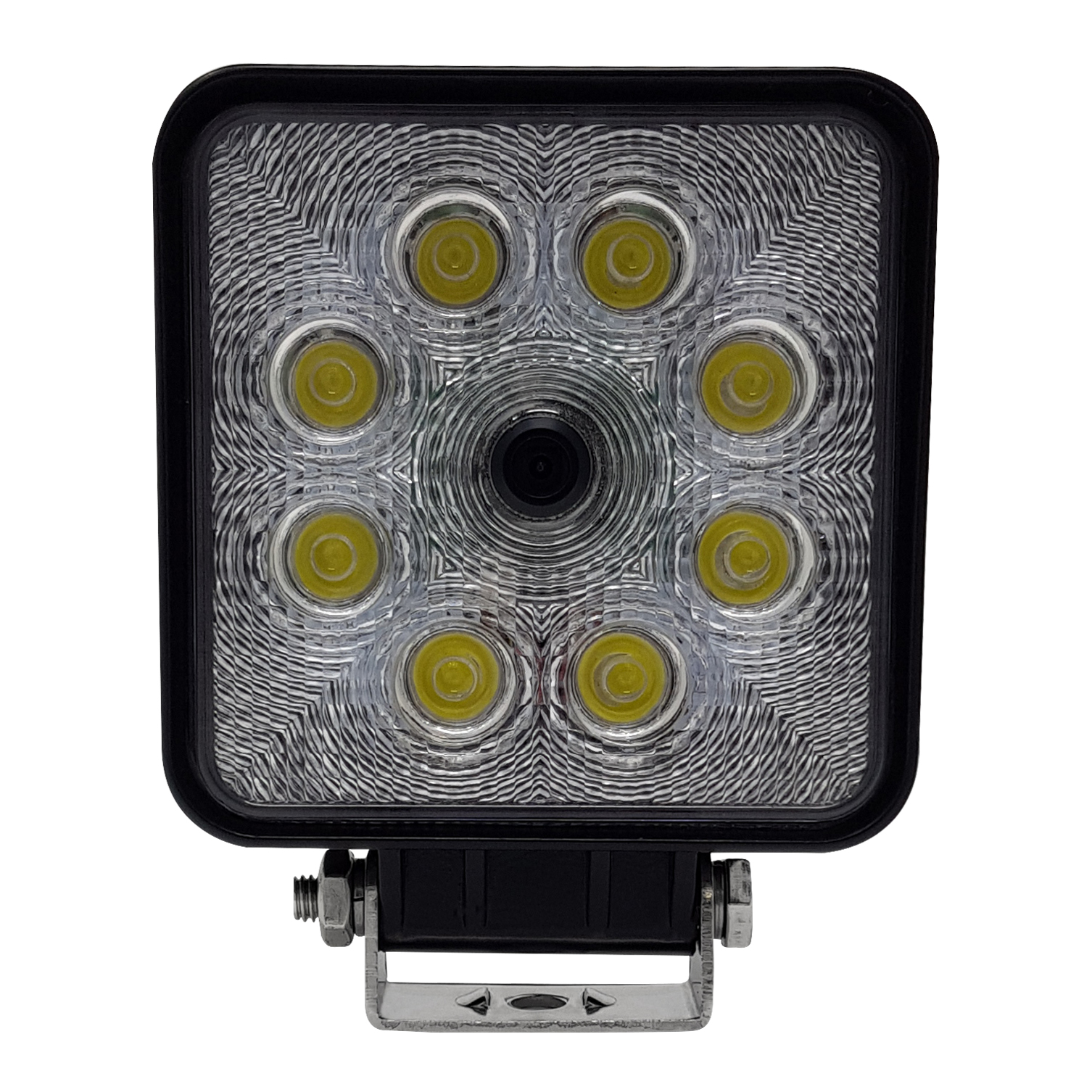

CARGUARD REAR ANGEL VIEW ™ RAV-S work camera 9-32V with floodlight 9-48V, full HD for AHD monitors, 140°, black, PAL

Item number RUS16333PT

* Incl. VAT excl. Shipping

Item number RUS16333PT

Colour rear view camera as a parking aid and for monitoring the traffic behind you

CARGUARD REAR ANGEL VIEW ™ RAV-S work camera 9-32V with floodlight 9-48V, full HD for AHD monitors, 140°, black, PAL

This 1080p camera is compatible with AHD, HD and Full HD monitors only, such as our RAV-MO 7HD, RAV-MO 7WHD, RAV-MO 7QHD and RAV-MO 9HD models.

Feature description:

With our extremely high-quality and durable reversing cameras, you can upgrade monitors from numerous manufacturers to a fully-fledged reversing video system. You can get the right adapter for almost any monitor model.

The camera image is displayed on the screen and the working area is illuminated bright as day up to a distance of 50m as soon as reverse gear is engaged or a switch is turned on.

For the use of multiple cameras, we offer various monitors individually tailored to your needs. For vehicle front use, you can mirror this camera.

Device information:

  • Excellent resolution: 2,080,000 pixels with 1080 TV lines
  • Camera power supply: DC 9-32V +/- 10%
  • Floodlight power supply: DC 9-48V +/- 10%
  • Lens coverage: 90° (vertical) / 110° (horizontal) 155° (diagonal)
  • Constructed to IP68, the high protection standard for components on vehicles
  • Protection against continuous immersion in water
  • Protection against foreign bodies: absolutely dust-tight
  • Protection against contact and shock

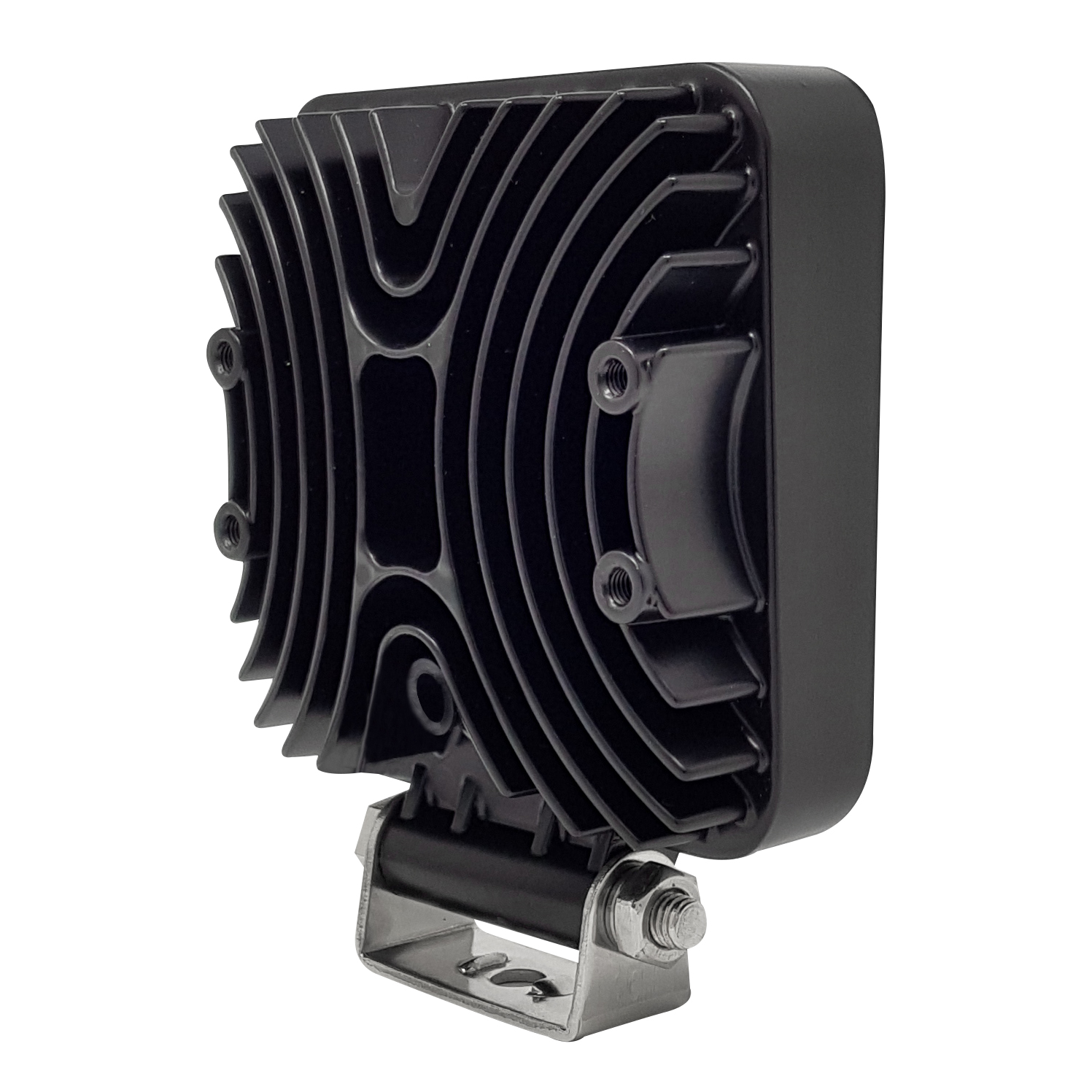

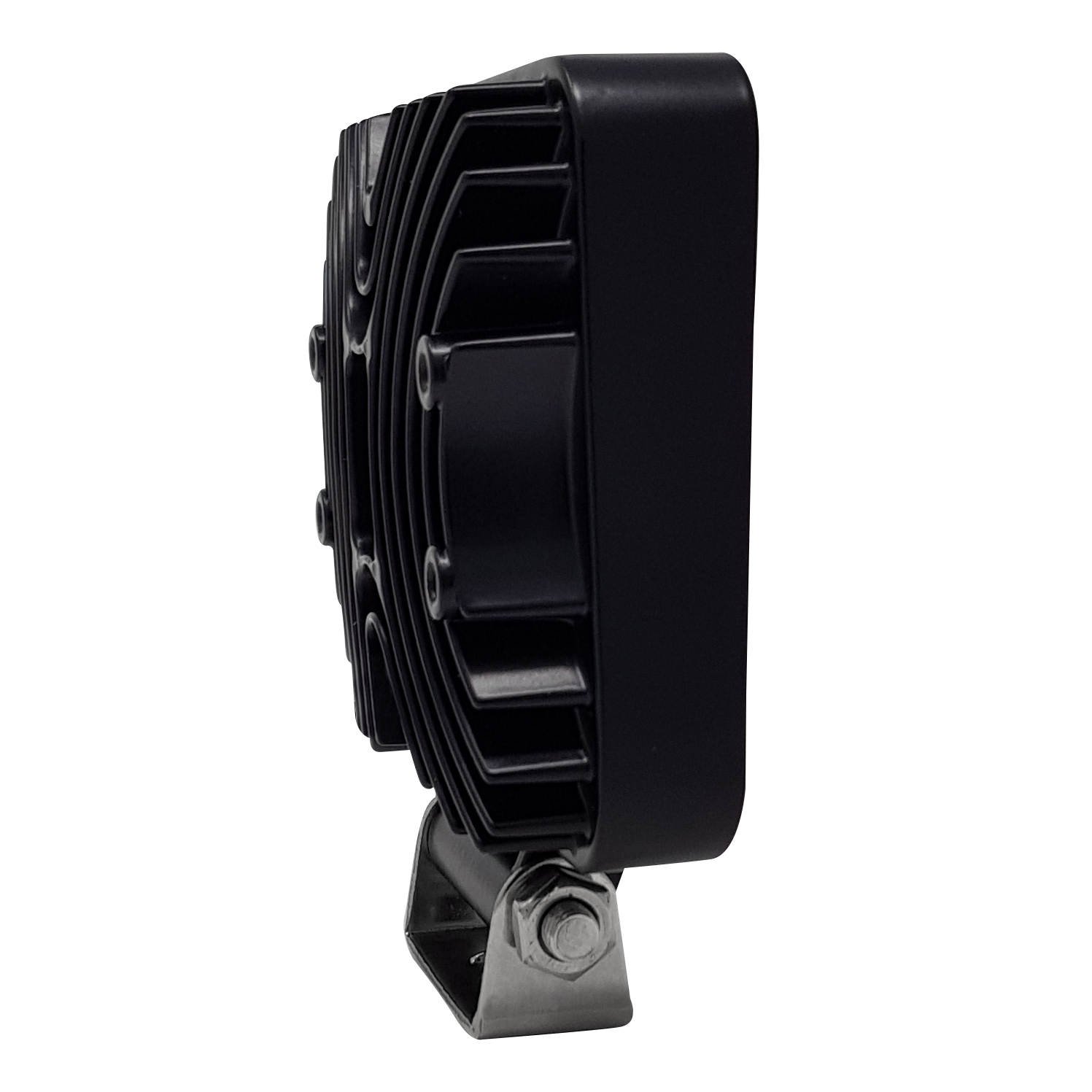

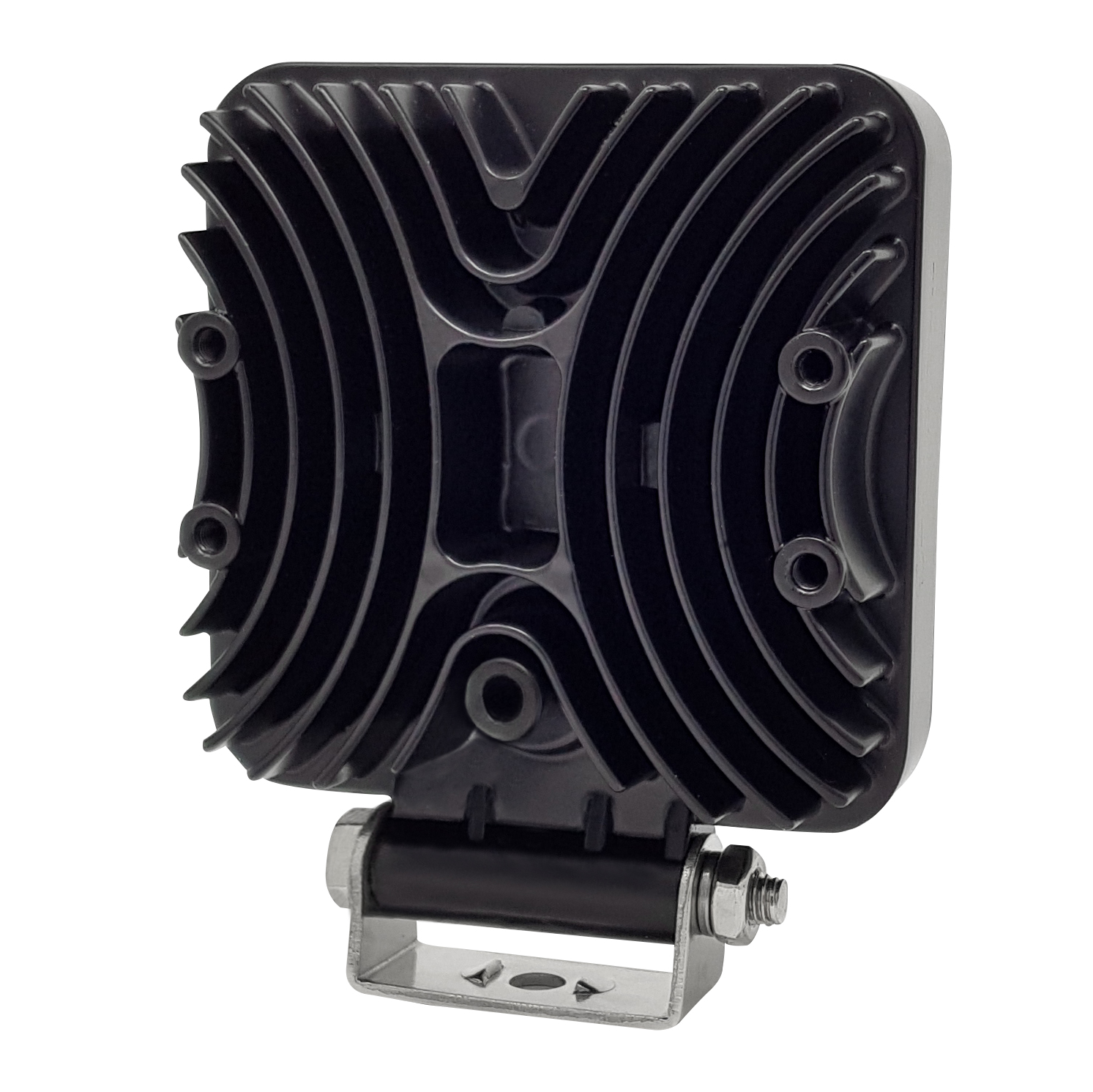

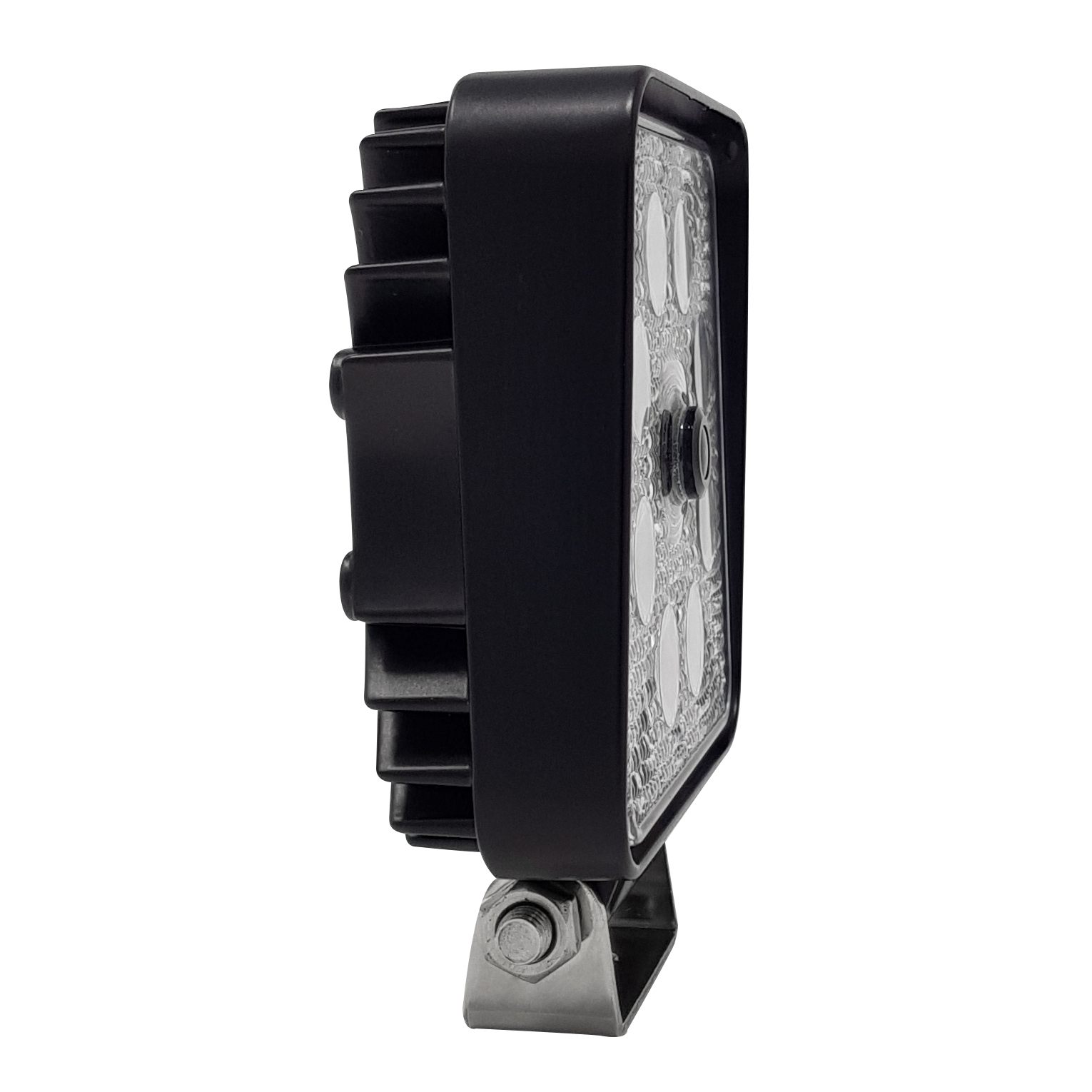

  • The powder-coated black die-cast aluminium housing is attached to the vehicle with a 2 mm thick, torsion-resistant stainless steel mounting foot
  • Extremely resistant to branches, high-pressure cleaners, storms, dirt, winter weather and rain
  • Waterproof screw connections
  • Image sensor size 1080p: 1/3 inch Sony MIX 225
  • Fast real-time image transmission

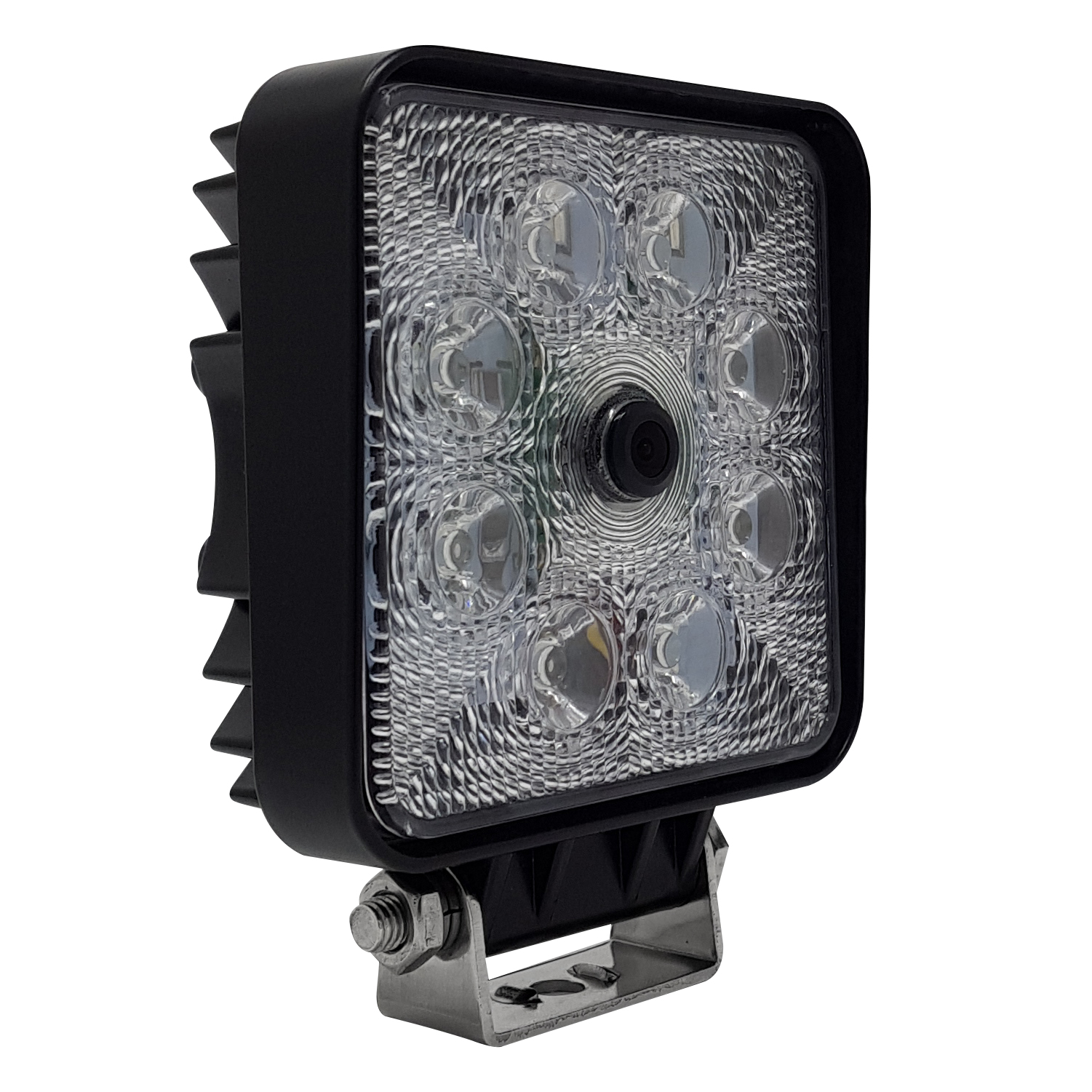

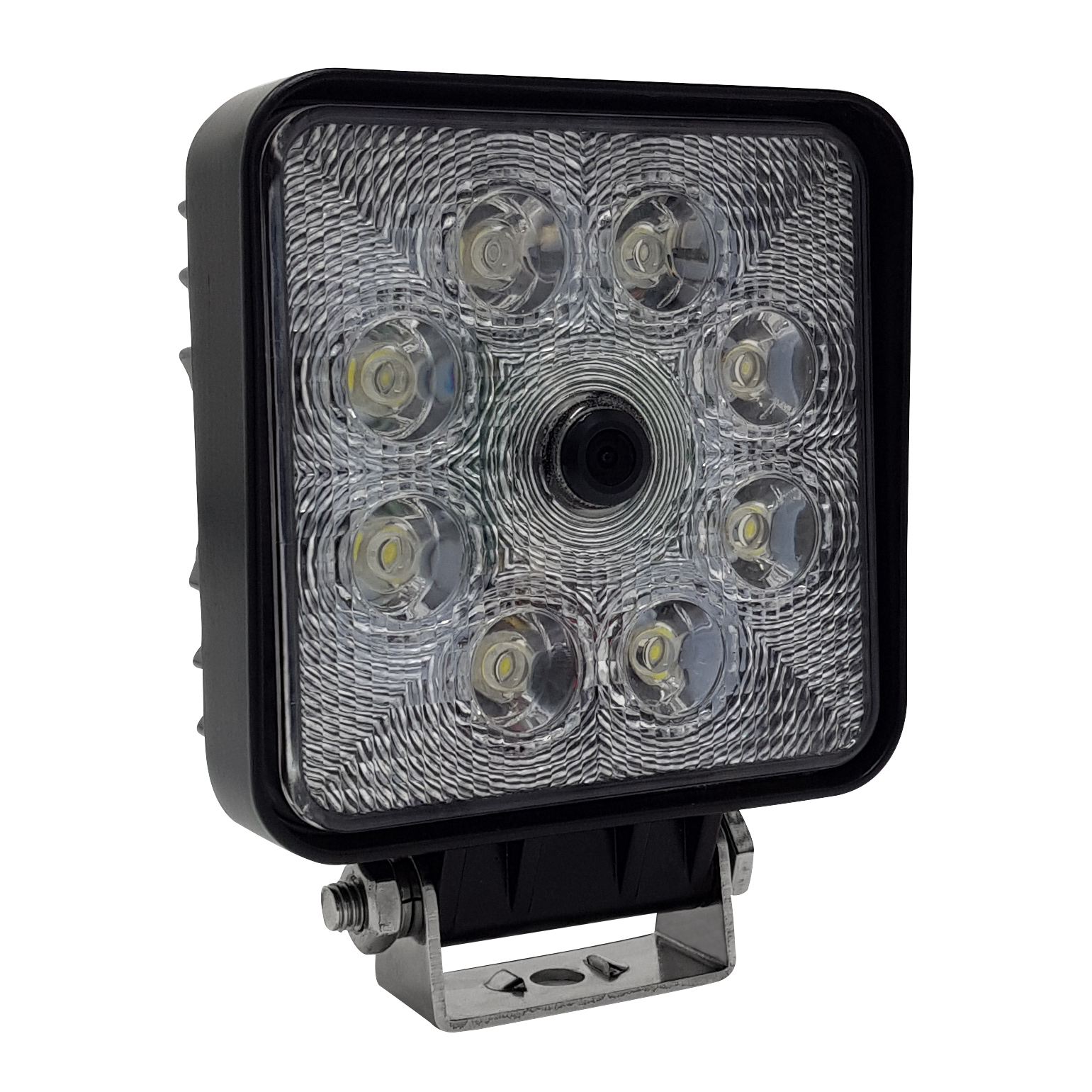

  • 8 highest quality white LEDs guarantee a daylight-bright image even in the dark
  • Night vision 30 - 50 m
  • LED floodlight output: 24W
  • Floodlight beam angle: 60°
  • Light brightness: 1154 lumens
  • Colour temperature: 6000K (daylight bright)
  • Light sensitivity: 0 lux (with LED light at night), 0.1 lux (during the day)
  • Vibration-proof up to 15G
  • Shockproof up to 100G
  • Heating against condensation: active below 10° Celsius
  • automatic backlight compensation
  • Automatic brightness and white balance
  • TV system: PAL (NTSC available on request)
  • Antifog lotus coating
  • Focal length: f= 1.7 mm
  • Video signal output: 1 Vp-p, 75 Ohm
  • Power consumption in operation: 65 mA during the day, 2300 mA at night
  • Operating temperature range: -20° C to 70° C, max. relative humidity 95%
  • Standing temperature range: -30° C to 80° C, max. relative humidity 95%
  • Scanning system: progressive
  • Synchronisation: internal
  • horizontal synchronisation frequency: 15.63 kHz / 15.73 kHz
  • Vertical sync frequency: 50 Hz / 60 Hz
  • Gamma Consumption: 0.45
  • Gain control (AGC): automatic
  • Signal-to-noise ratio: 52 dB
  • Electronic shutter speed: 1/50 (PAL) ~ 1/100,000 s

Product size and weight:

  • Product dimensions (LxWxH): 137 x 108 x 42 mm
  • Weight: 556 g


  • Part number: RUS16333PT
  • EAN: 4260456384635
  • Packaging weight: 1764 g
  • Packaging size: 298 x 170 x 86 mm


  • IP68 waterproof and dust resistance test (for permanent immersion in water, specific for road vehicles)
  • Salt vapour test certificate
  • ROHS
  • CE
  • E-Mark

Scope of delivery:

  • Colour rear view camera 9-14V (the power supply 9-32V is provided by the monitor
  • 20 metre connection cable with 4 pin aviation connector
  • Stainless steel mounting base and M8x25 screw for attachment to vehicle
  • Installation instructions


  • Camera magnetic base with 80 kg tractive force for safe, mobile mounting (Art.No.: RUMF)
