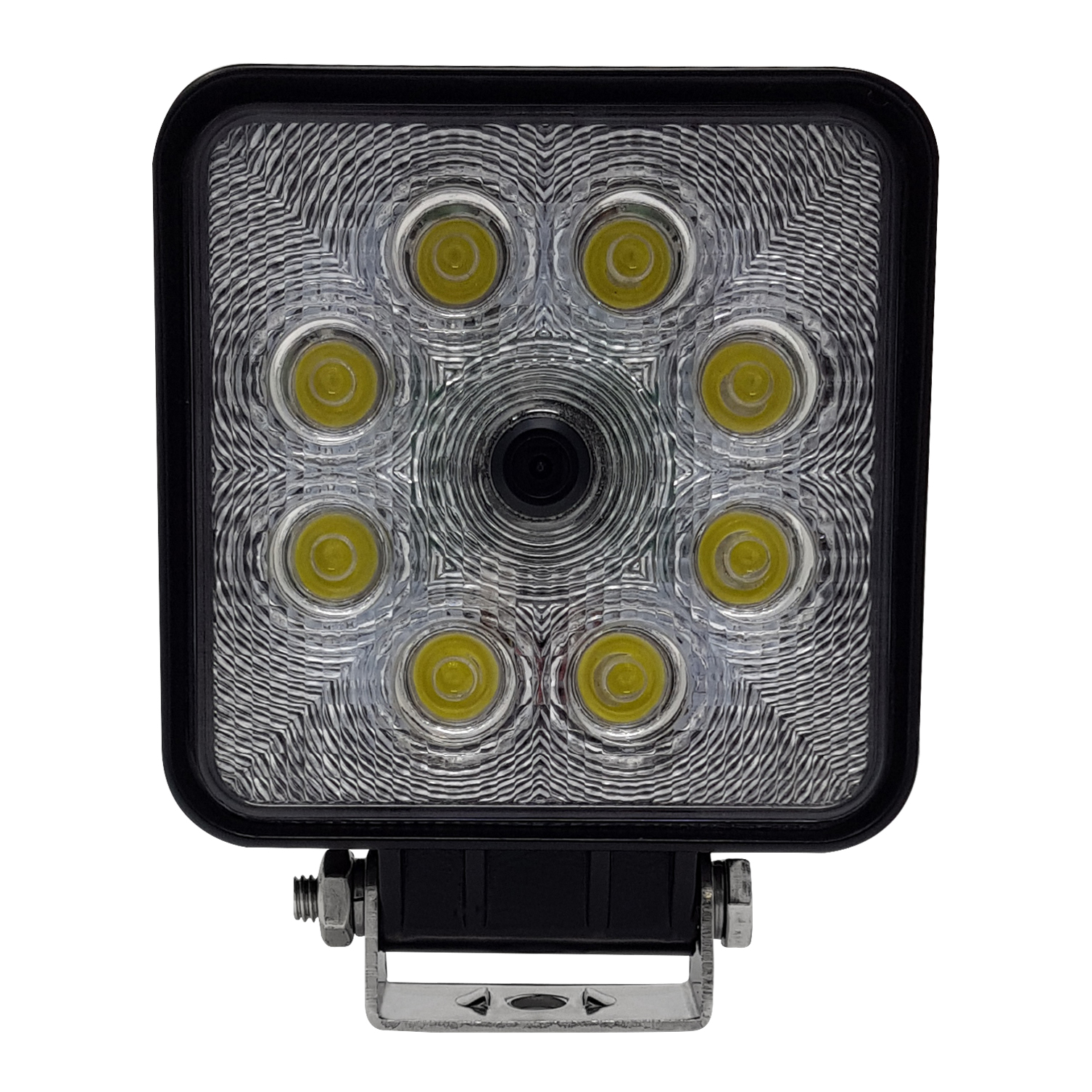

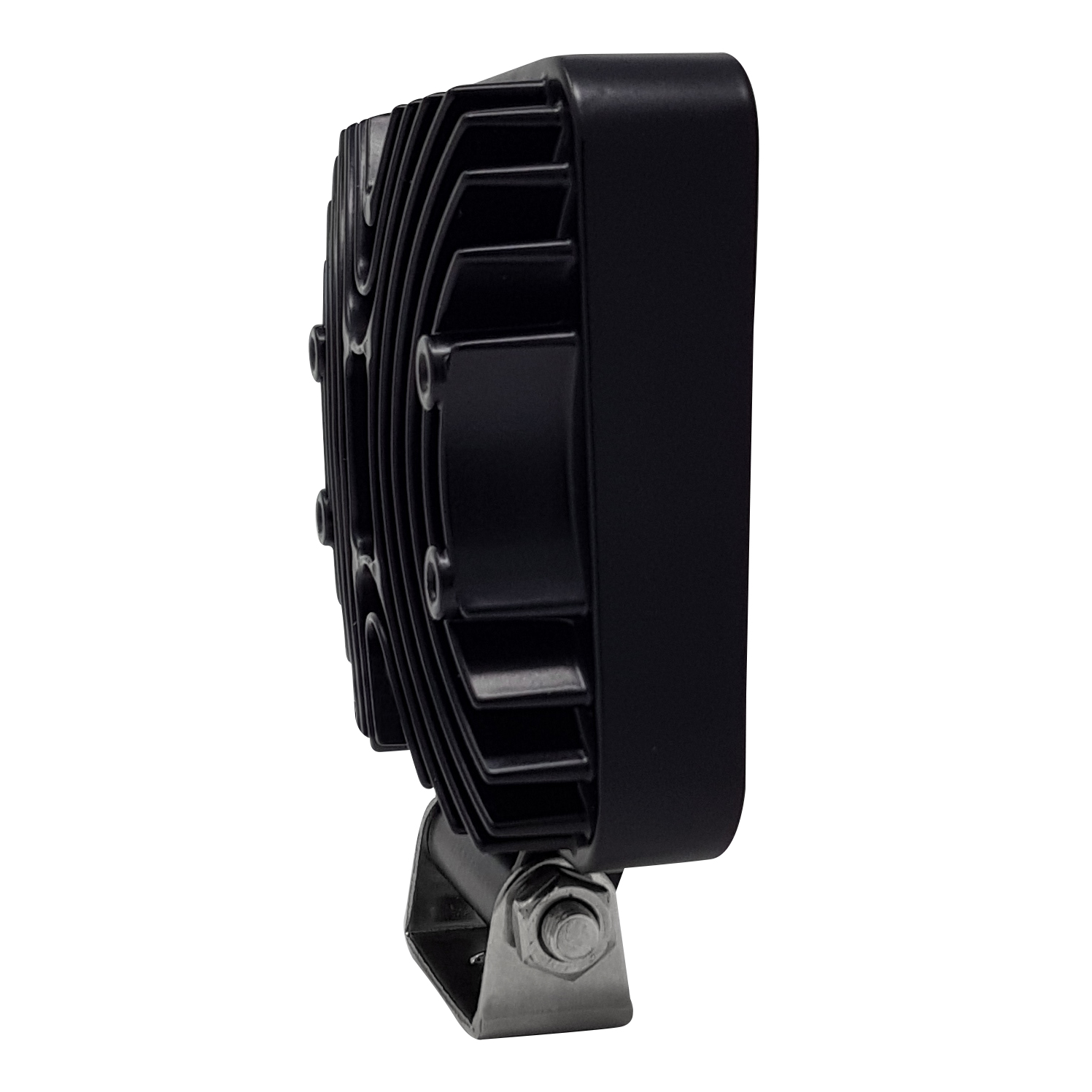

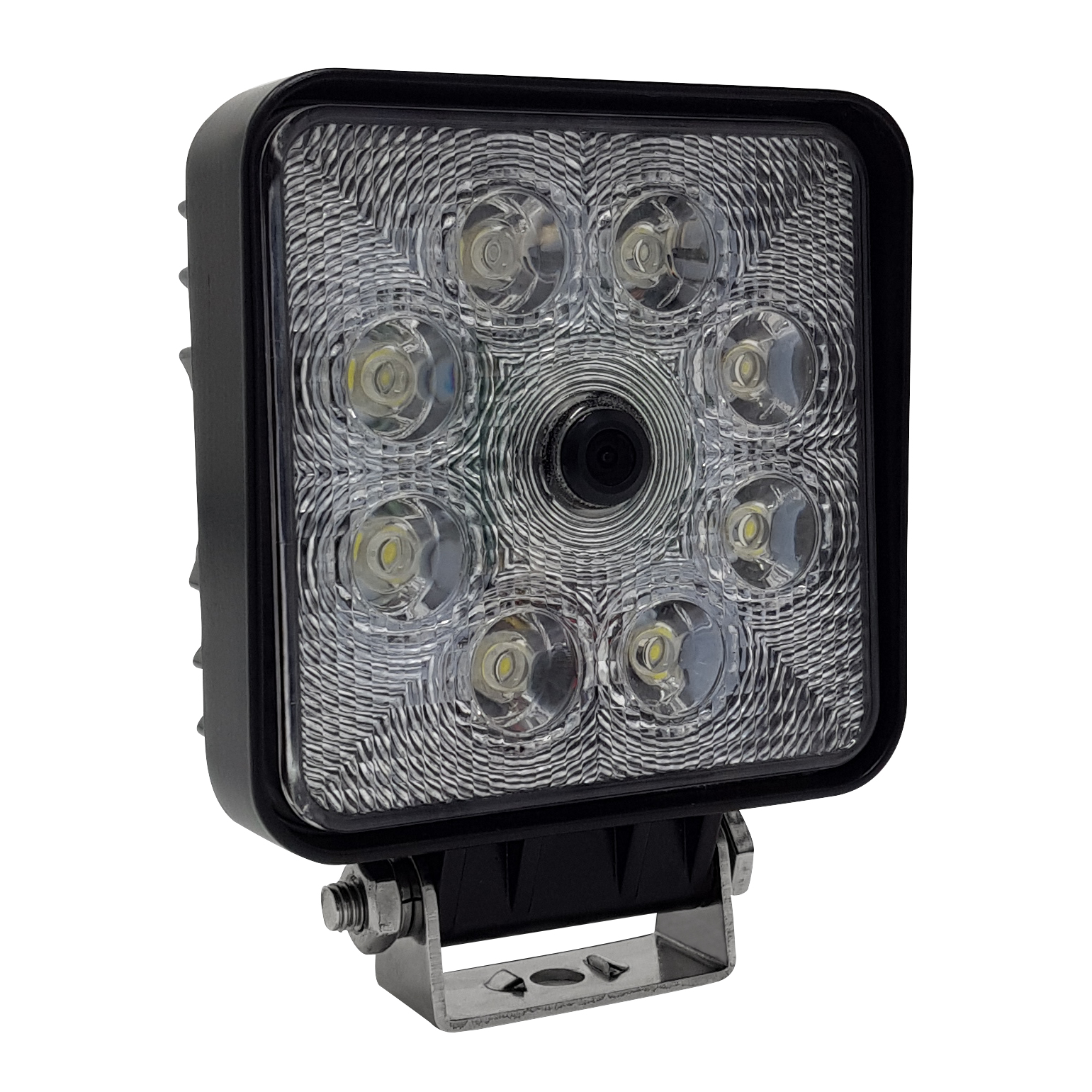

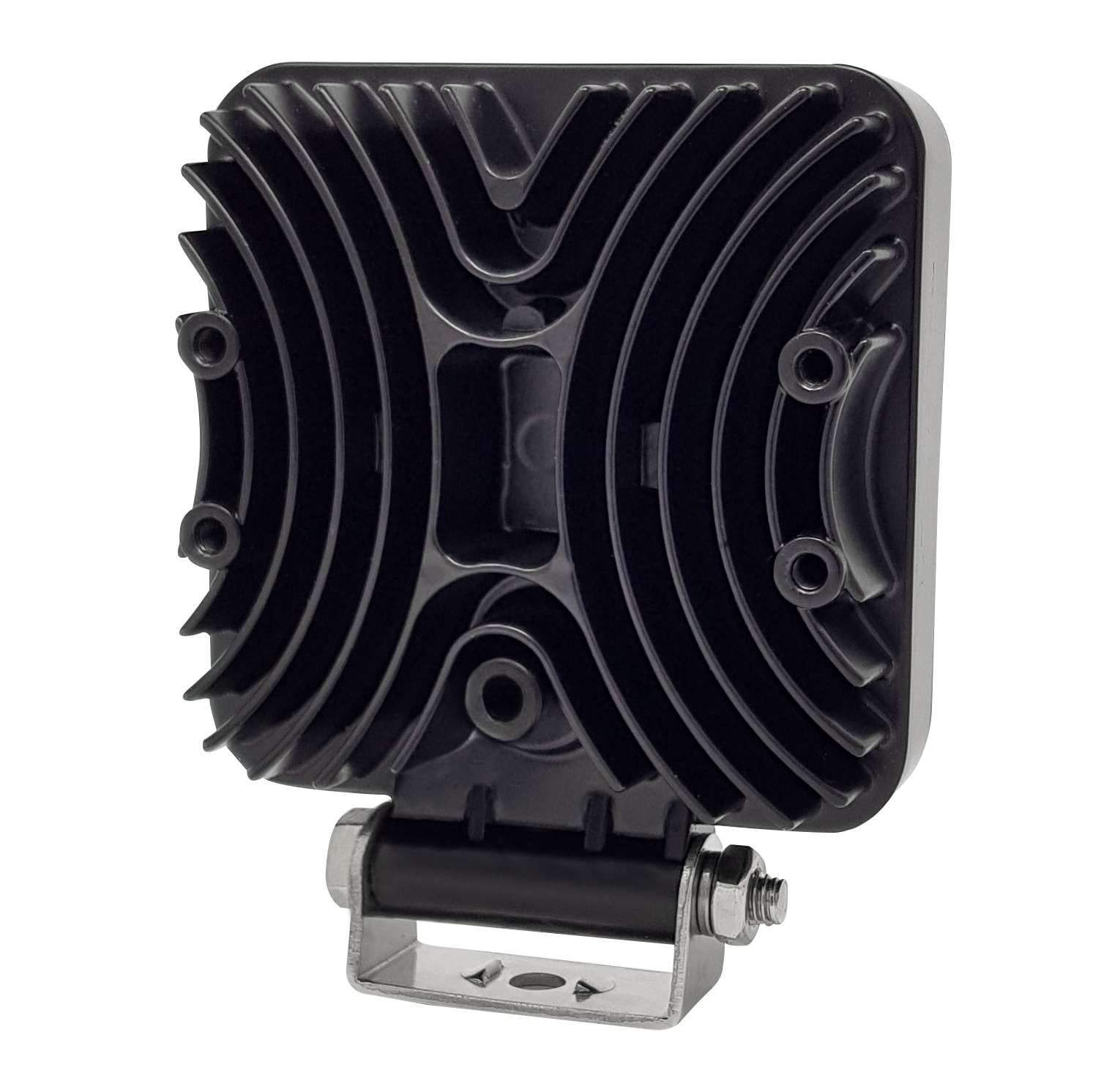

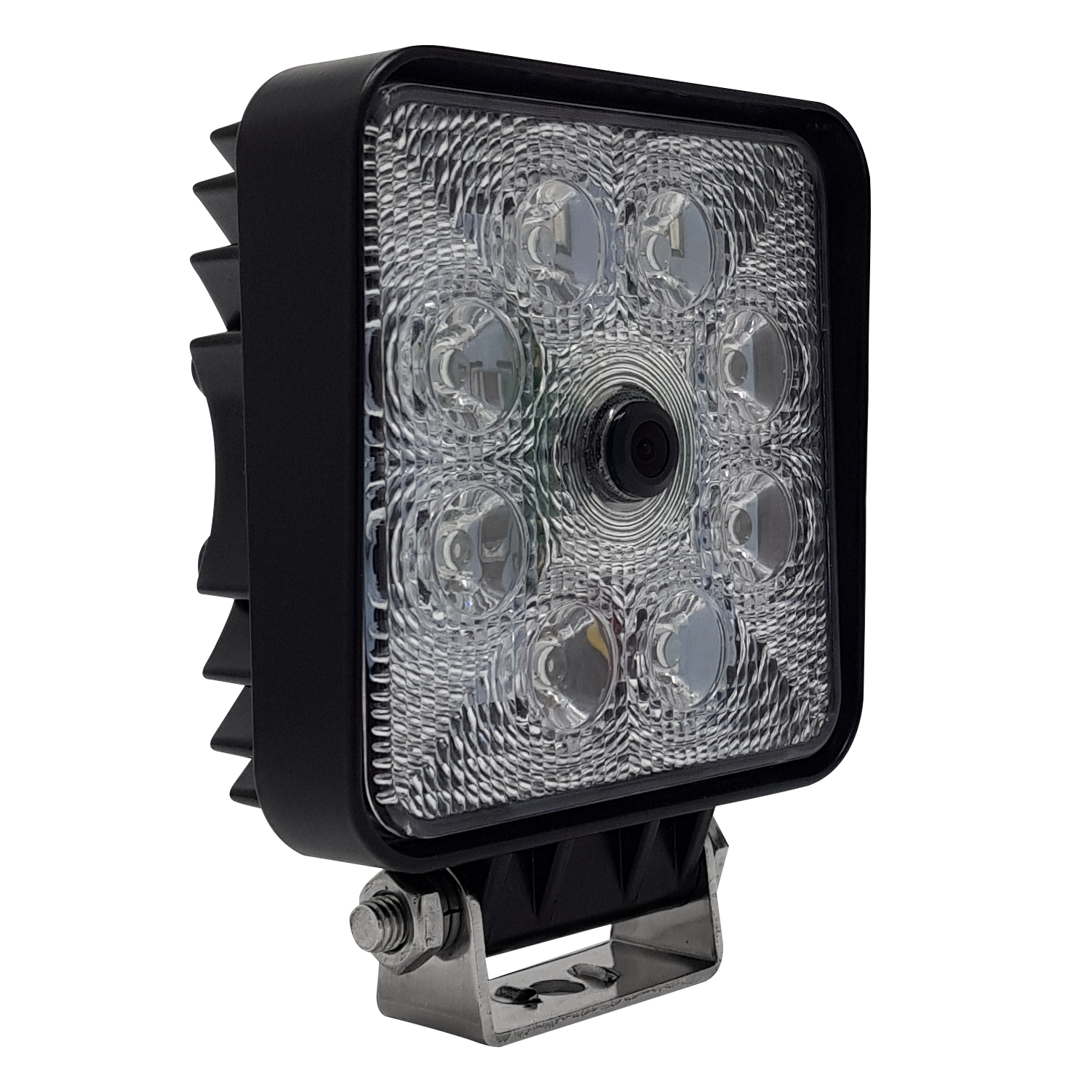

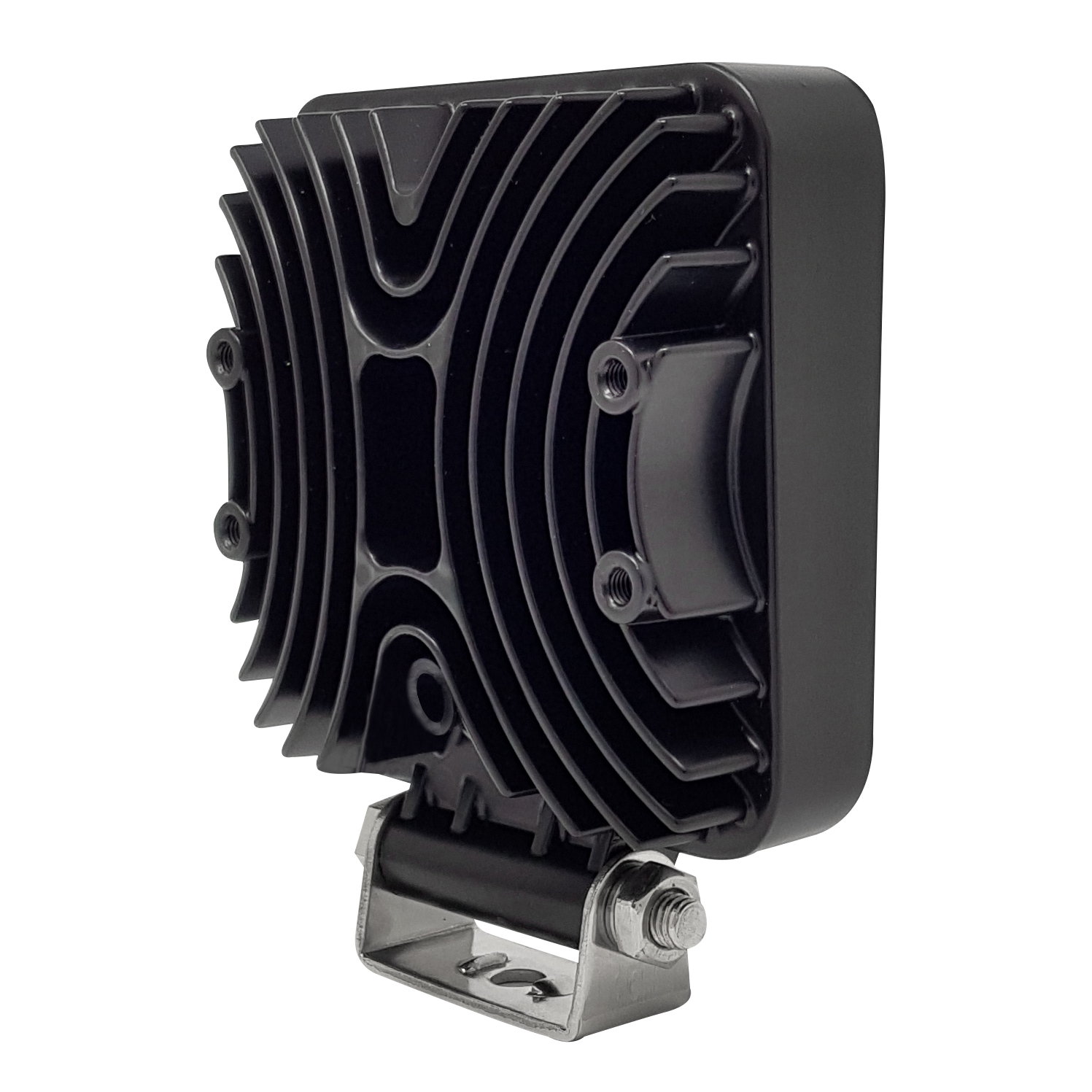

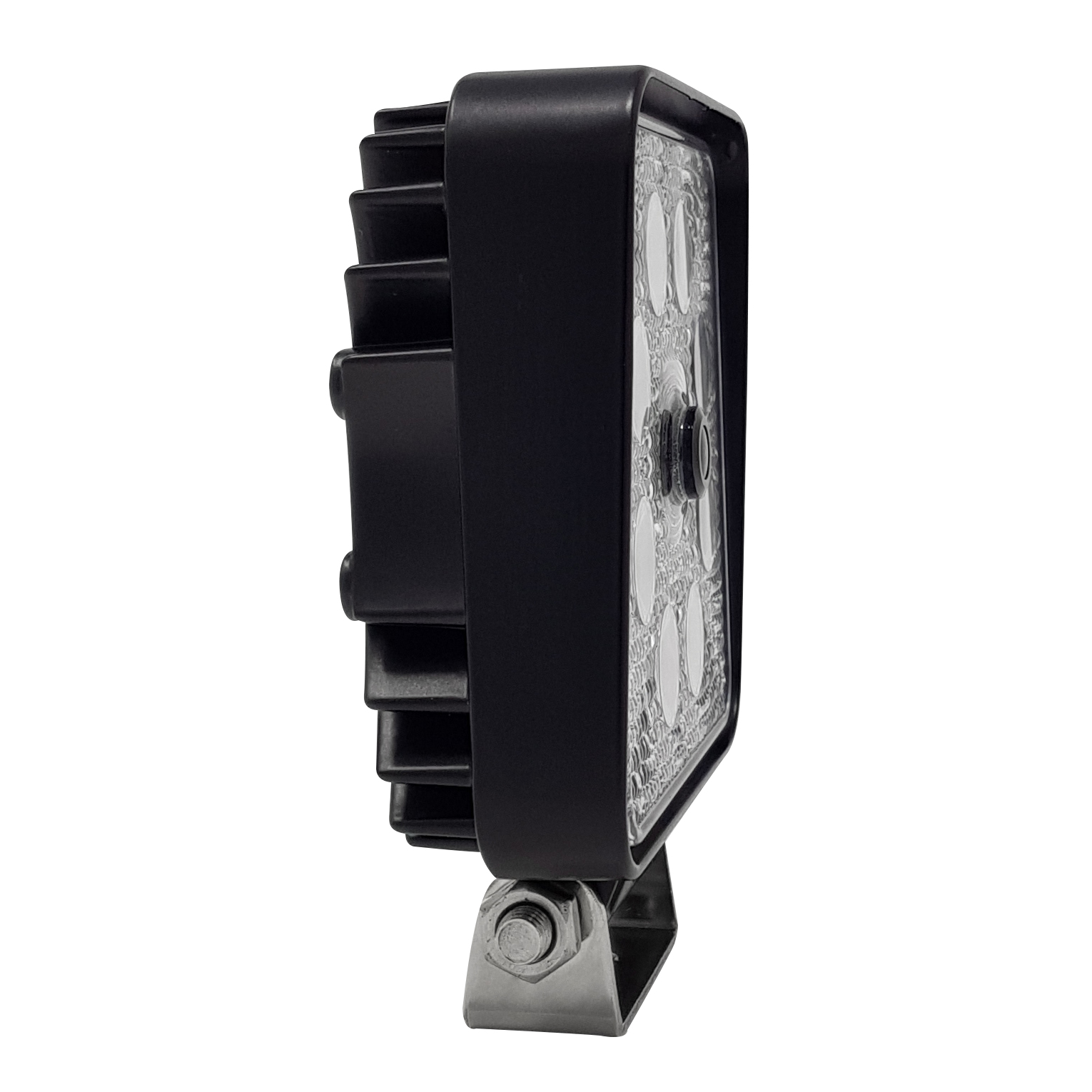

CARGUARD REAR ANGEL VIEW ™ Second floodlight, accessory for RAV-S working camera with floodlight


Item number RUZUS133


* Incl. VAT excl. Shipping

Item number RUZUS133

Colour rear view camera as a parking aid and for monitoring the traffic behind you

CARGUARD REAR ANGEL VIEW ™ Second floodlight, accessory for RAV-S working camera with floodlight

Functional description:

With our extremely high-quality and durable reversing cameras, you can upgrade multimedia systems and standard OEM navigation systems from numerous manufacturers to a fully-fledged reversing video system. You can get the right adapter for almost any vehicle model.

Many of our navigation models have a camera input. Our AHD monitors are suitable for the Full HD variants.

The camera image is displayed on the screen and the working area is illuminated bright as daylight up to a distance of 50m as soon as reverse gear is engaged or a switch is turned on.

For the use of multiple cameras, we offer various switch boxes individually tailored to your needs. For vehicle front use, you can mirror this camera.

Device information:

  • Outstanding resolution: 610,000 pixels with 700 TV lines
  • Power supply to camera: DC 9-32V +/- 10%
  • Floodlight power supply: DC 9-48V +/- 10%
  • Lens coverage: 84° (vertical) / 107° (horizontal) 140° (diagonal)
  • Constructed to IP68, the high protection standard for components on vehicles
  • Protection against permanent immersion in water
  • Protection against foreign bodies: absolutely dust-tight
  • Protection against contact and shock
  • The powder-coated black die-cast aluminium housing is attached to the vehicle with a 2 mm thick, torsion-resistant stainless steel mounting foot
  • Extremely resistant to branches, high-pressure cleaners, storms, dirt, winter weather and rain
  • Waterproof screw connections
  • Image sensor size: 1/3 inch CMOS PC1058K
  • Fast real-time image transmission
  • 8 highest quality white LEDs guarantee a daylight-bright image even in the dark
  • Night vision 30 - 50 m
  • LED floodlight output: 24W
  • Floodlight beam angle: 60°
  • Light brightness: 1154 lumens
  • Colour temperature: 6000K (daylight bright)
  • Light sensitivity: 0 lux (with LED light at night), 0.1 lux (during the day)
  • Vibration-proof up to 10G
  • Shockproof up to 100G
  • Heating against condensation: active below 10° Celsius
  • automatic backlight compensation
  • Automatic brightness and white balance
  • TV system: PAL (NTSC available on request)
  • Antifog lotus coating
  • Focal length: f= 1.7 mm
  • Video signal output: 1 Vp-p, 75 Ohm
  • Power consumption in operation: 65 mA during the day, 2300 mA at night
  • Operating temperature range: -20° C to 70° C, max. relative humidity 95%
  • Standing temperature range: -30° C to 80° C, max. relative humidity 95%
  • Sampling system: 2:1 interlace
  • Synchronisation: internal
  • horizontal synchronisation frequency: 15.63 kHz / 15.73 kHz
  • Vertical sync frequency: 50 Hz / 60 Hz
  • Gamma Consumption: 0.45
  • Gain control (AGC): automatic
  • Signal-to-noise ratio: 48 dB
  • Electronic shutter speed: 1/50 (PAL) ~ 1/100,000 s

Product dimensions and weight:

  • Product dimensions (LxWxH): 137 x 108 x 42 mm
  • Weight: 556 g

Logistics:

  • Part number: RUS13333PT
  • EAN: 4260456384628
  • Packaging weight: 1764 g
  • Packaging size: 298 x 170 x 86 mm


Certificates:

  • IP68 waterproof and dust resistance test (for permanent immersion in water, specific for road vehicles)
  • Salt vapour test certificate
  • ROHS
  • CE
  • E-Mark

Scope of supply:

  • Colour rear view camera 9-14V
  • Voltage converter 9-32V
  • 20 metre connection cable with 4 pin aviation connector
  • .
  • Adapter to RCA plug
  • Stainless steel mounting base and M8x25 screw for vehicle mounting
  • .
  • Installation instructions

Accessories:

  • Camera magnetic base with 80 kg tractive force for safe, mobile mounting (Art.No.: RUMF)
