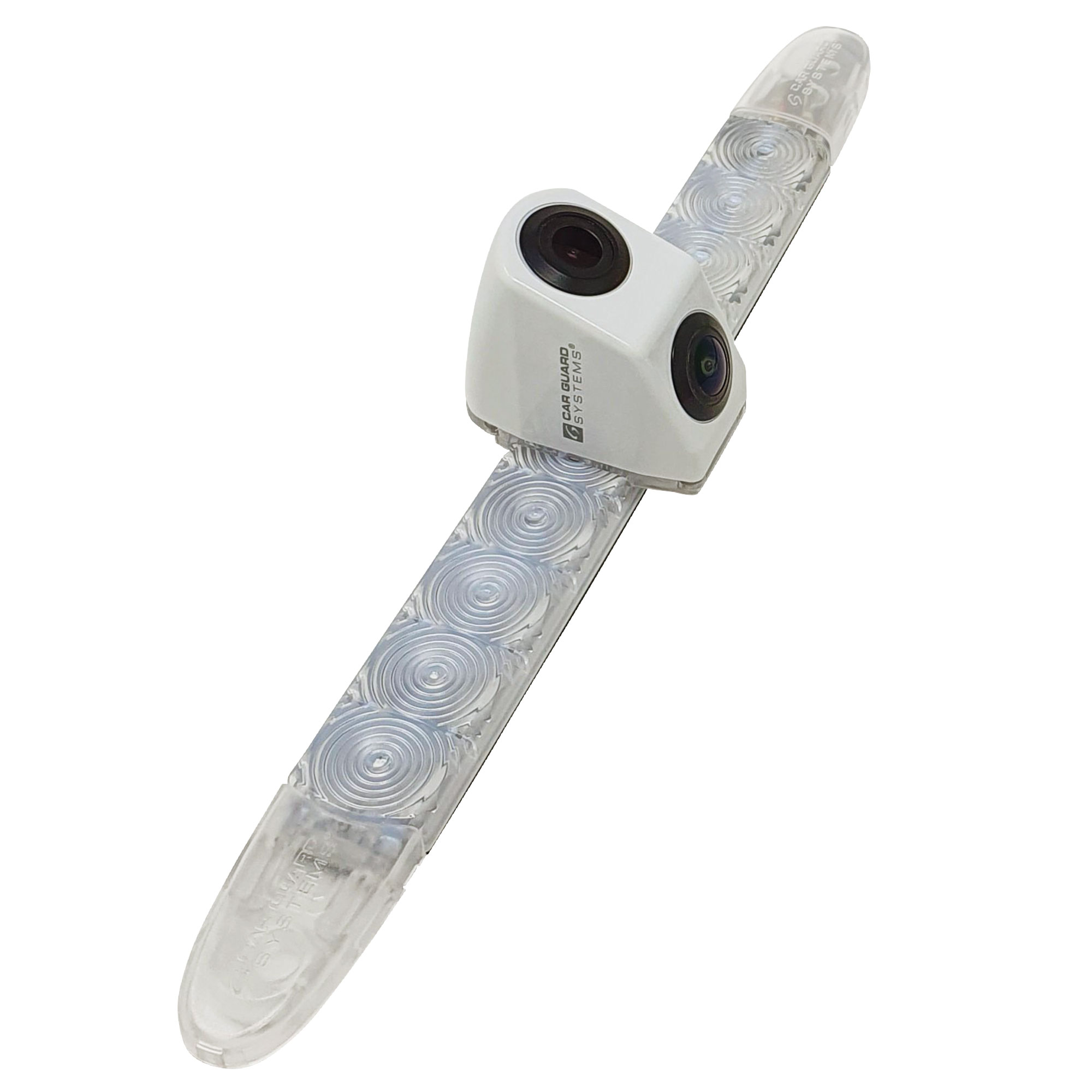

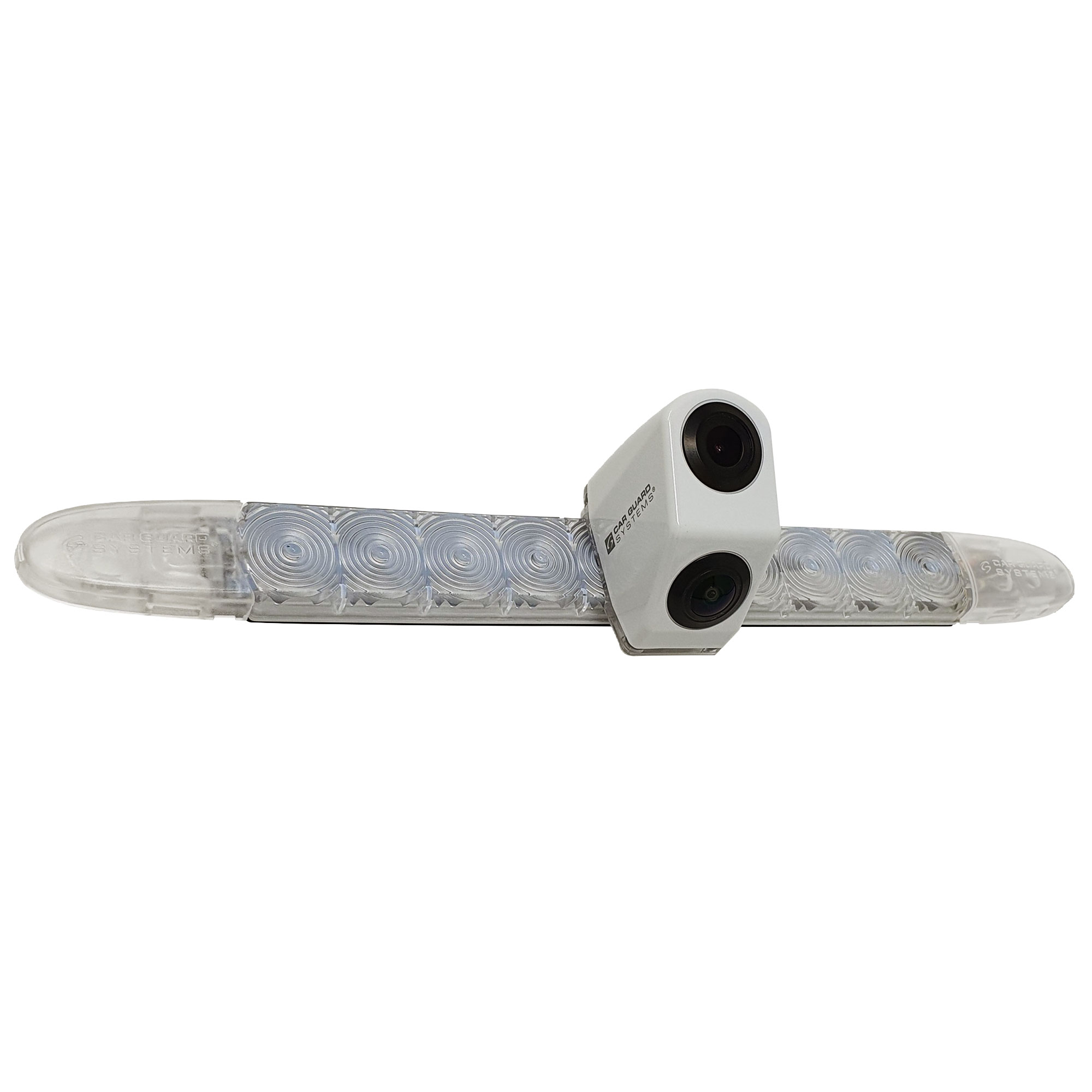

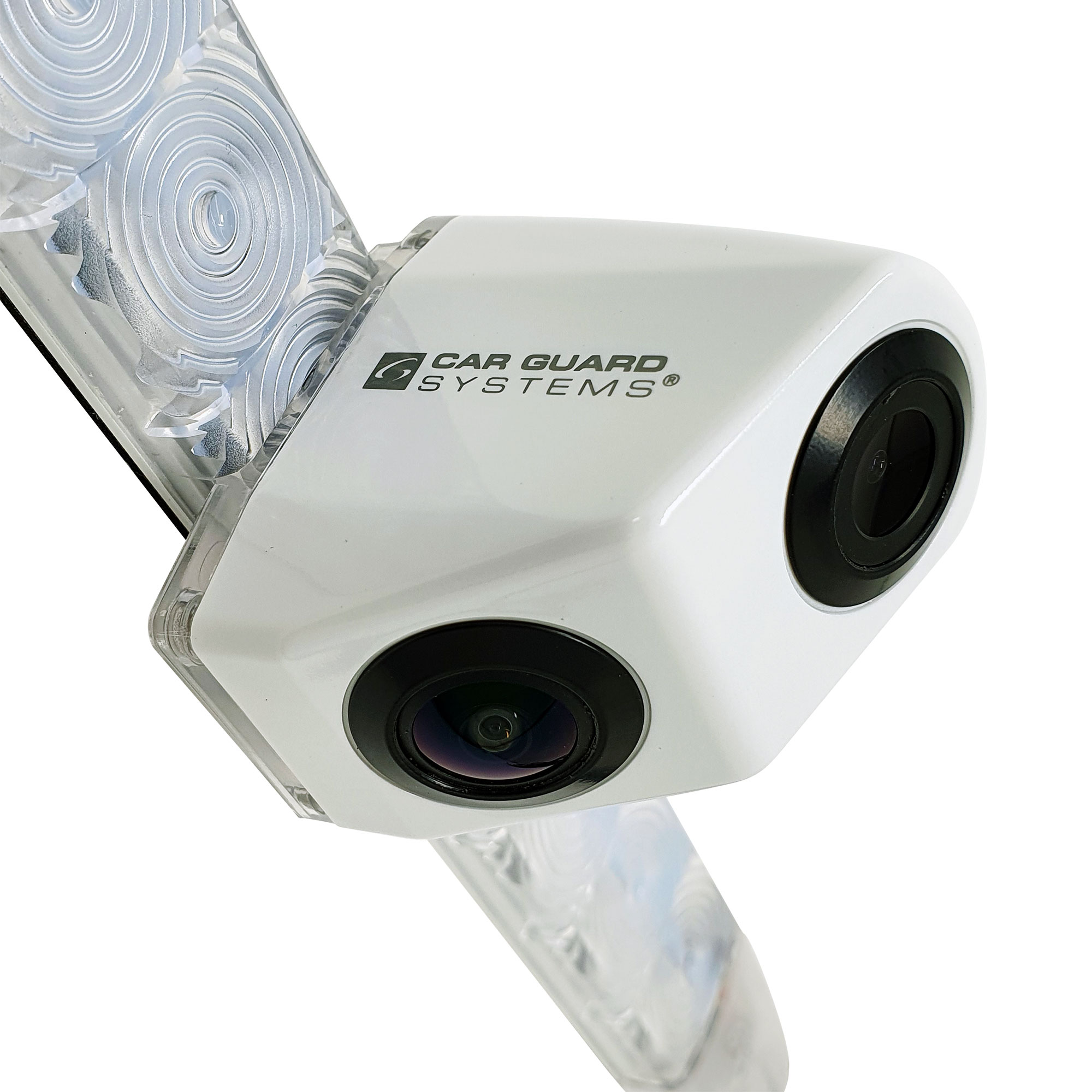

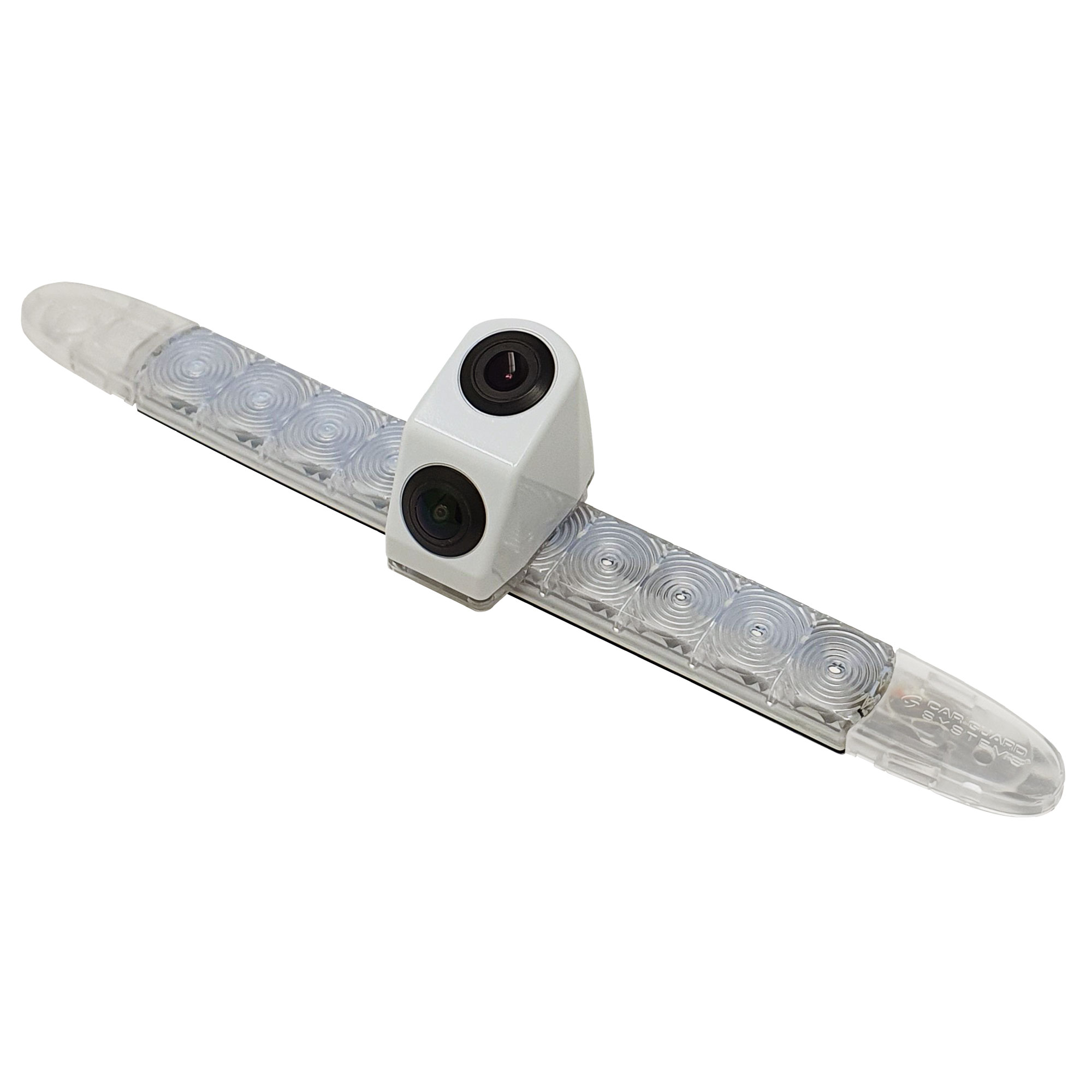

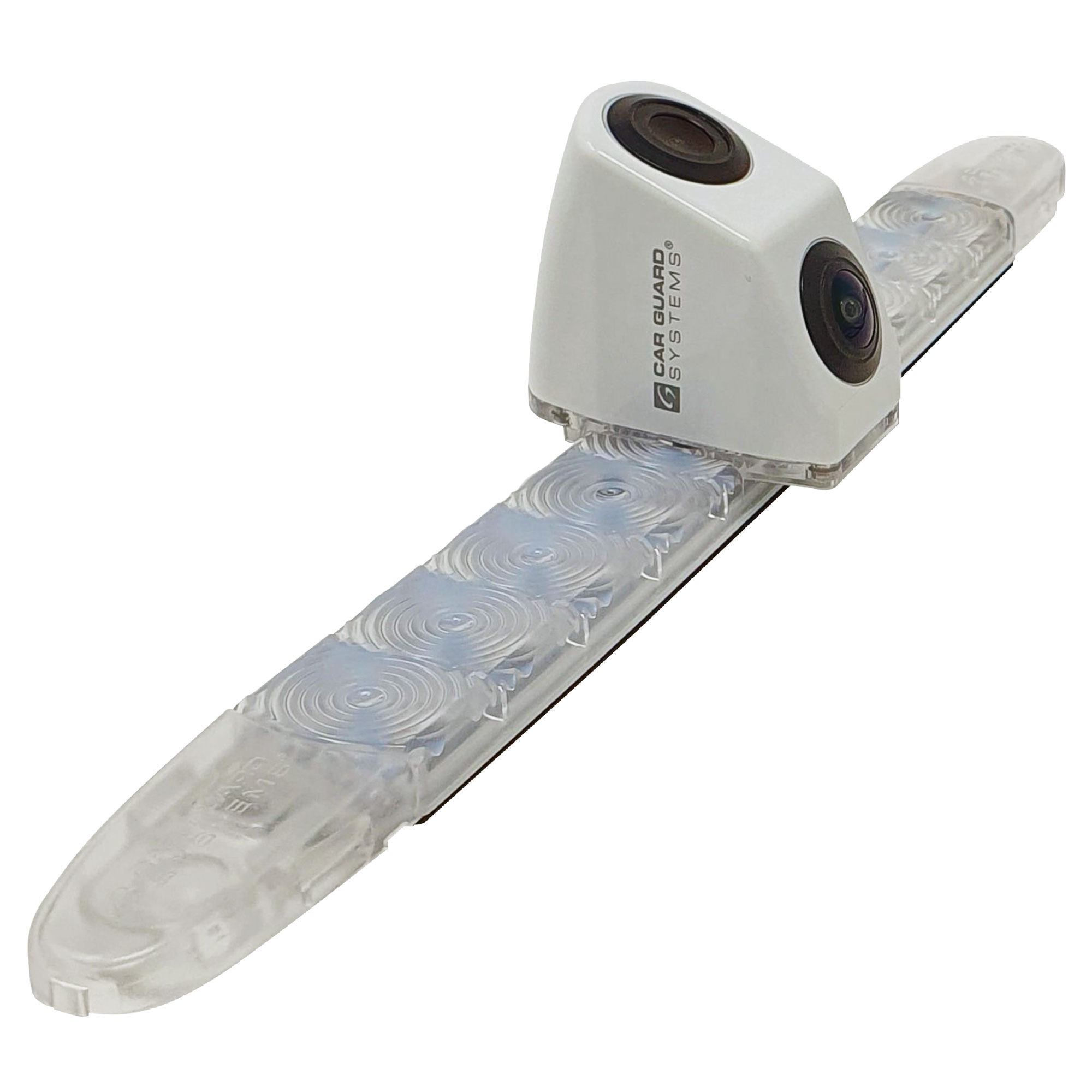

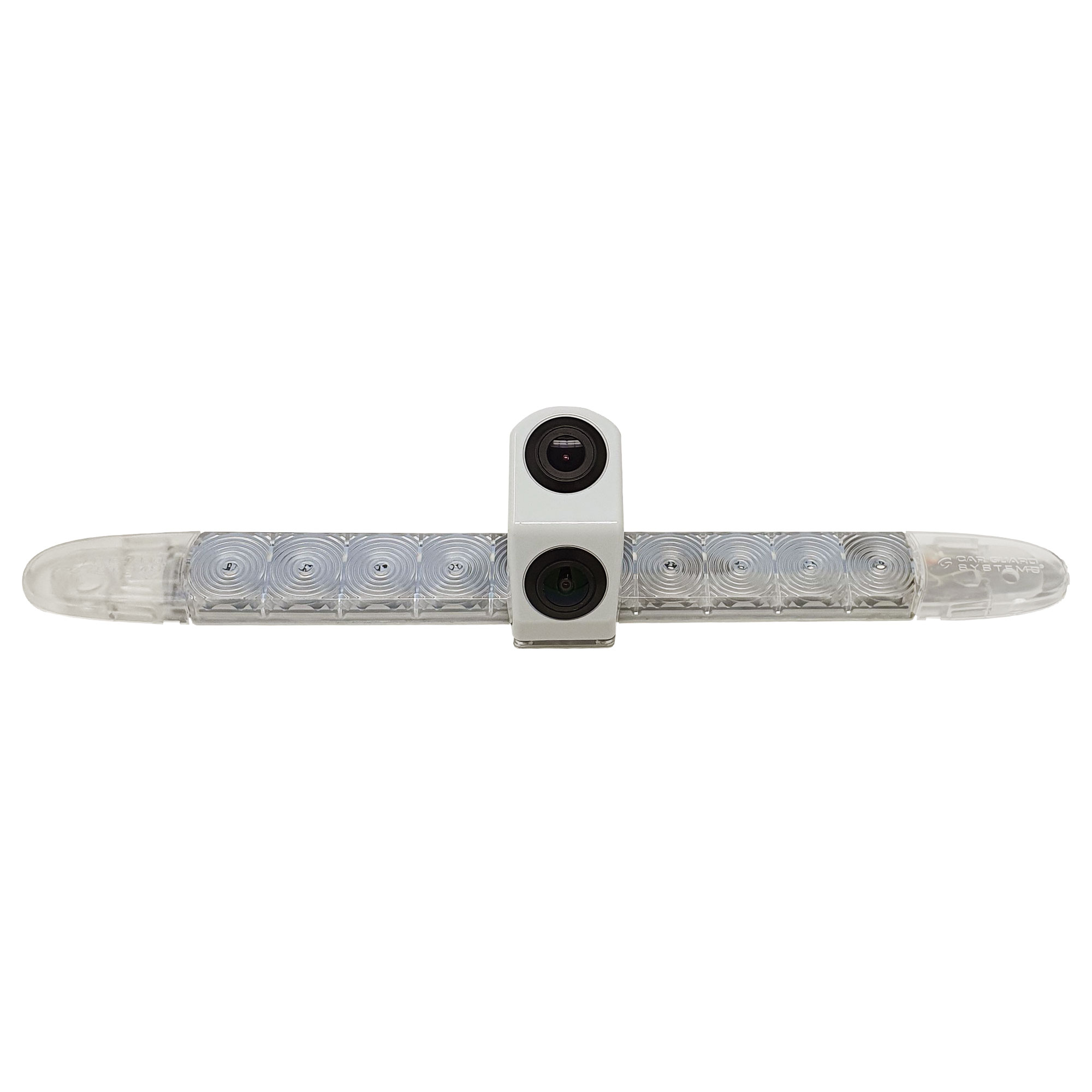

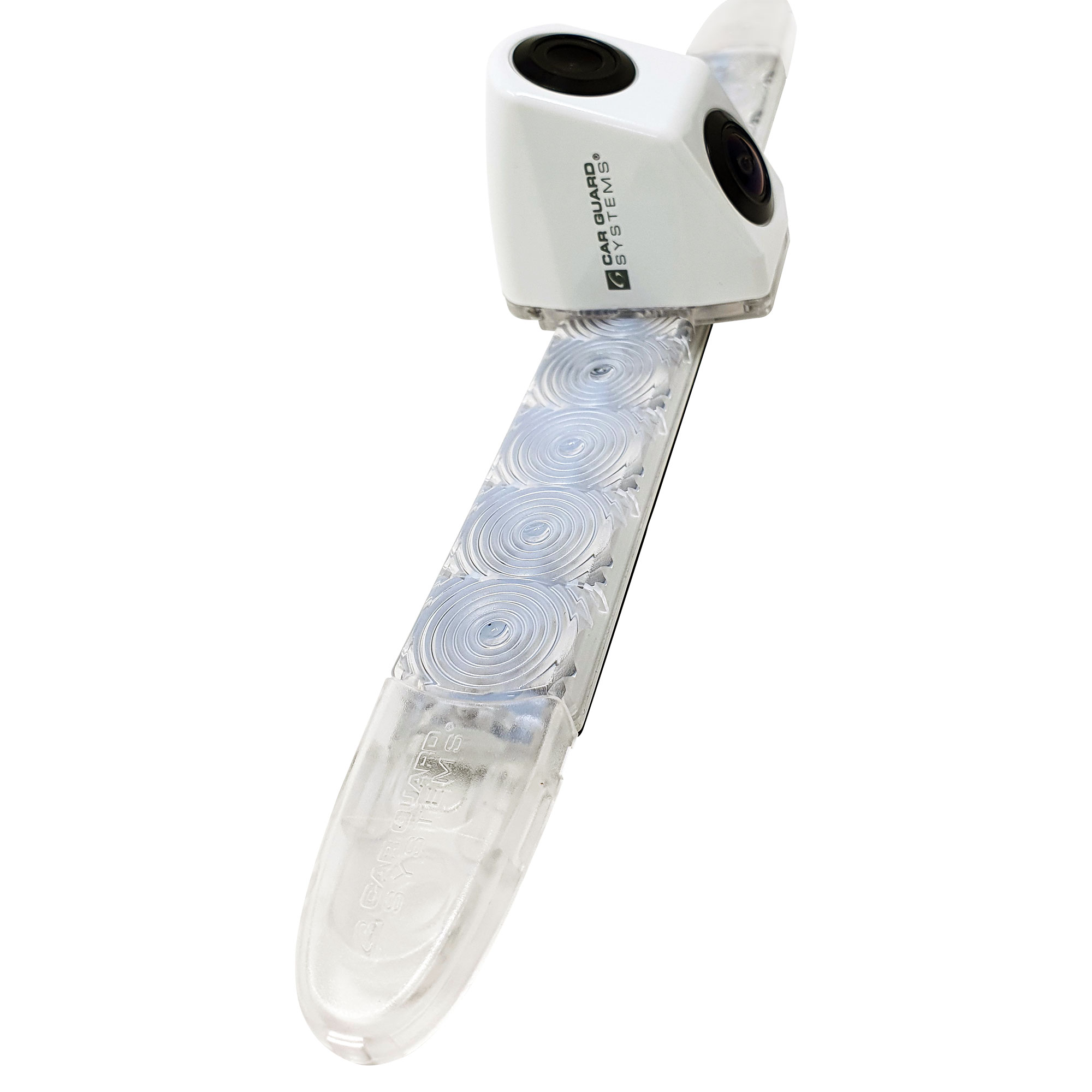

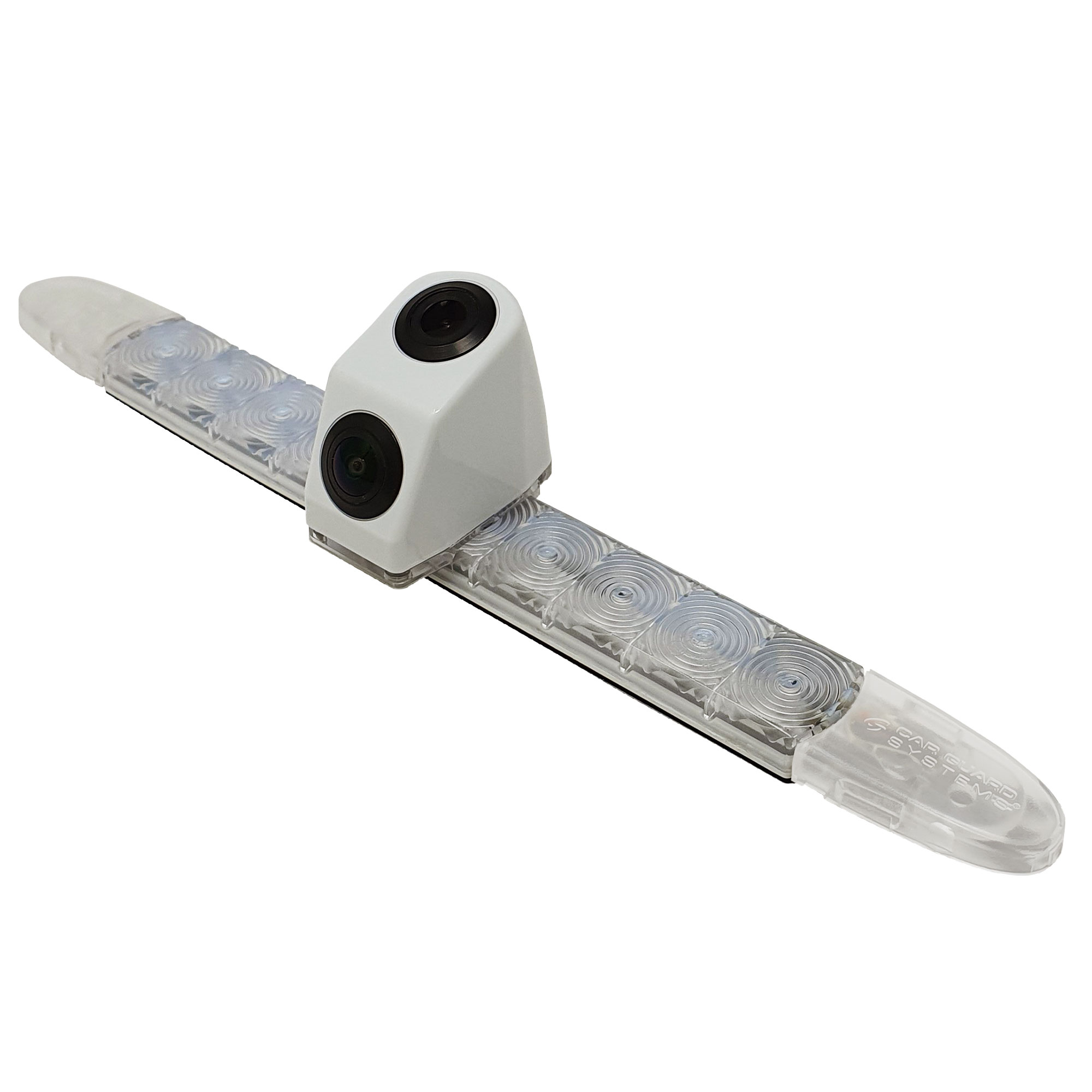

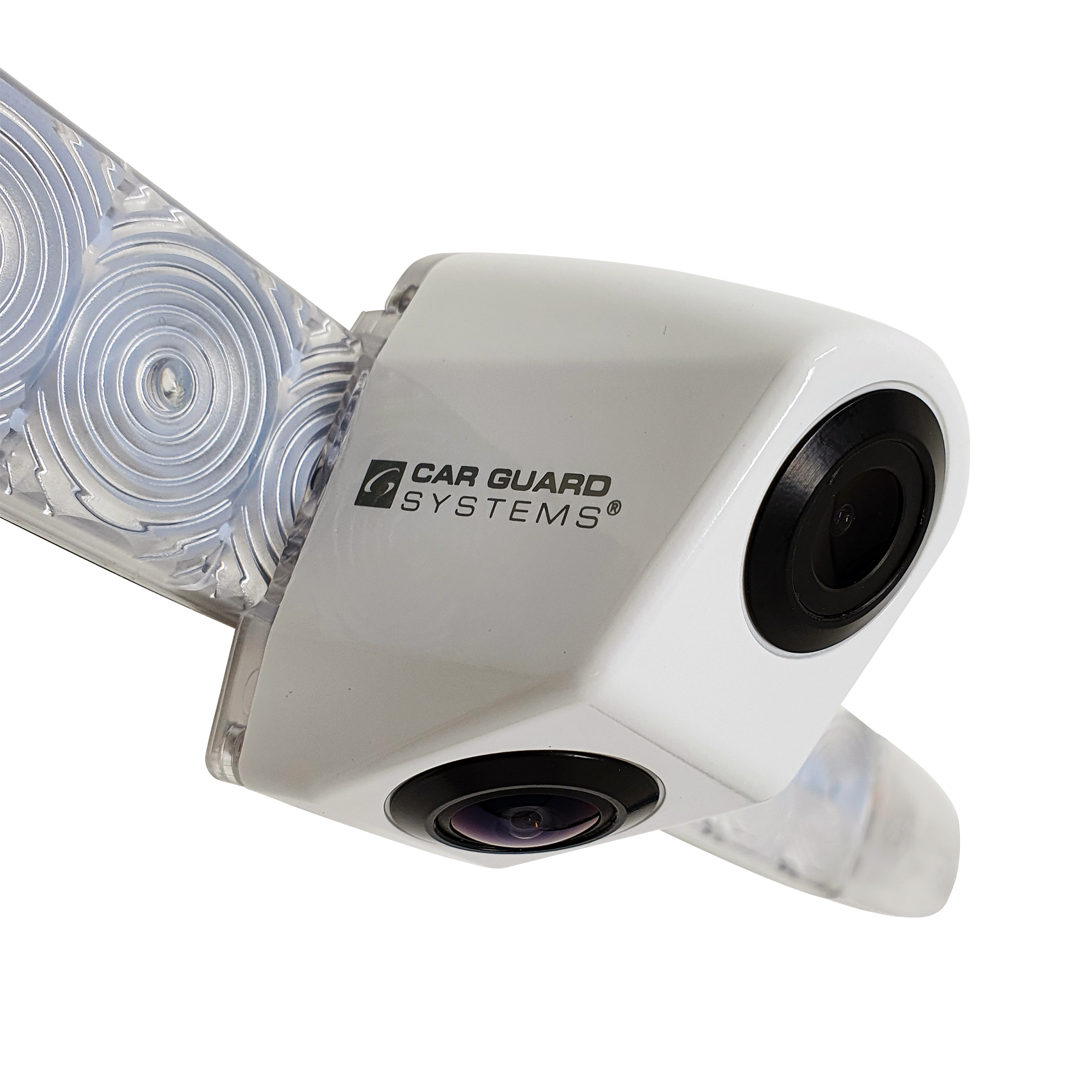

RAV-DB1 Double rear view camera with 3rd brake light, 700TVL, for navigation systems, moniceivers and monitors with 1 camera input, incl. switch box, for vehicles with camera pre-equipment

Item number RUDB113222PK

EUR 379.00 *
Content 1 piece
Ready for shipping, delivery in 48h

* Incl. VAT excl. Shipping

Item number RUDB113222PK

Color rear view camera as a parking aid and to observe the rear traffic

CARGUARD REAR ANGEL VIEW ™ RAV-DB1 dual rear view camera with 3rd brake light, 700TVL, 9-14V

Only for Navis, Moniceivers and Monitors with 1 camera input, for vehicles with camera equipment (camera cable with 6 pin screw connector), incl. a switch box for connection to a free standard dashboard switch

Functional description:

You can upgrade with our high-quality rear view camera Navis, Moniceiver and monitors with 1 camera input of numerous manufacturers to a full-fledged rear view video system or opt for a more attractively priced package consisting of one of our mobile navigation systems and a rear view camera of their choice.

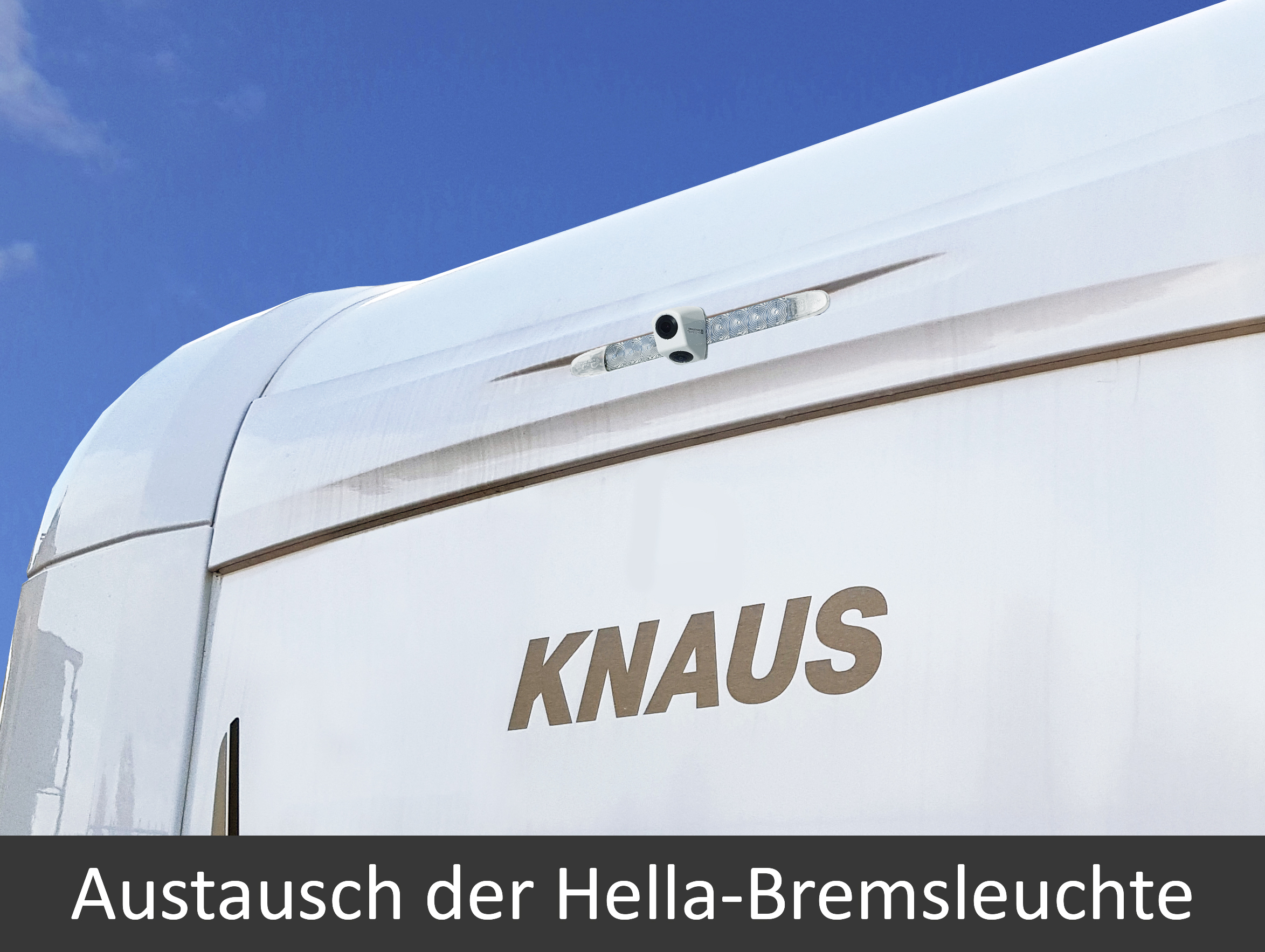

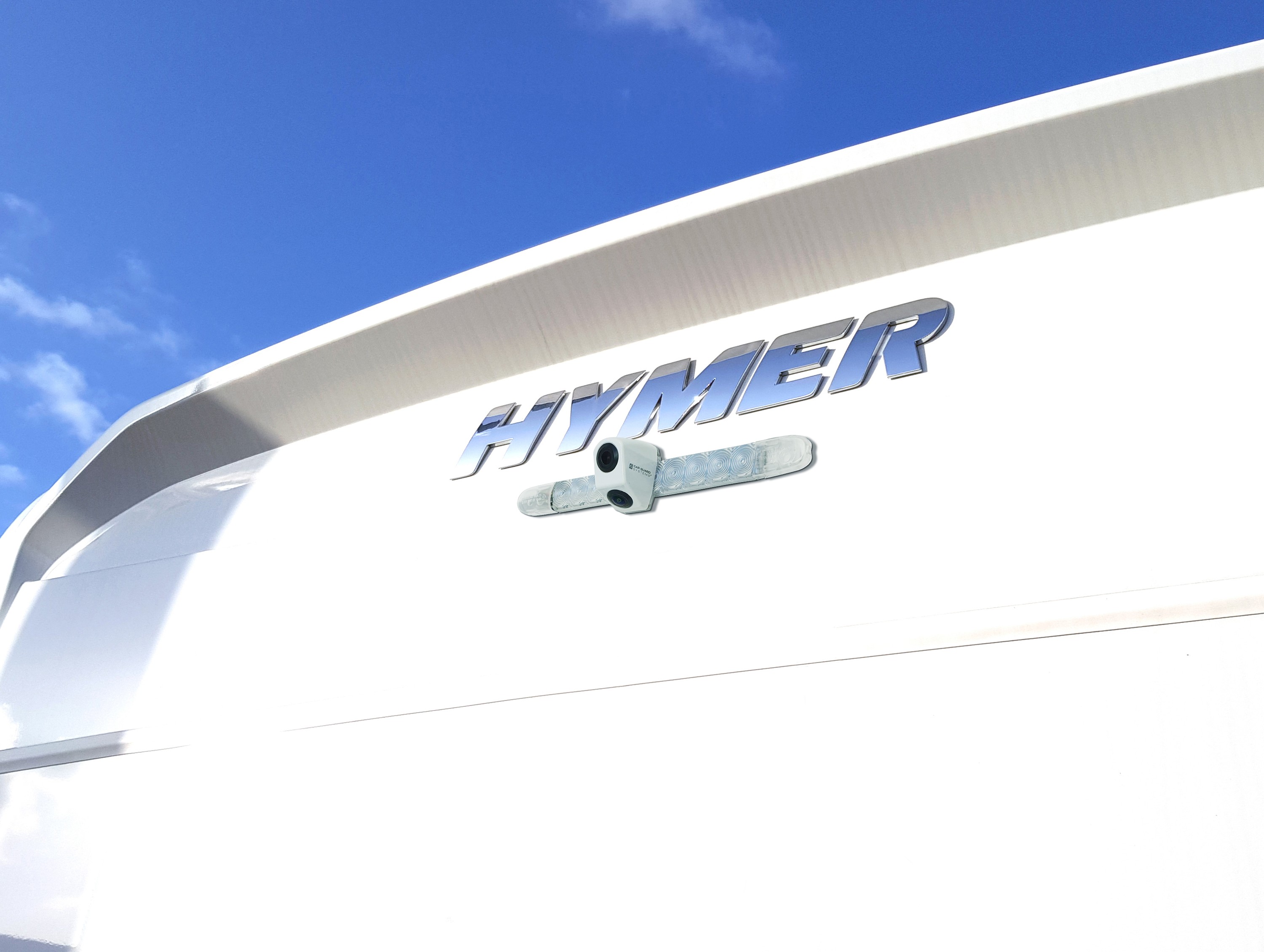

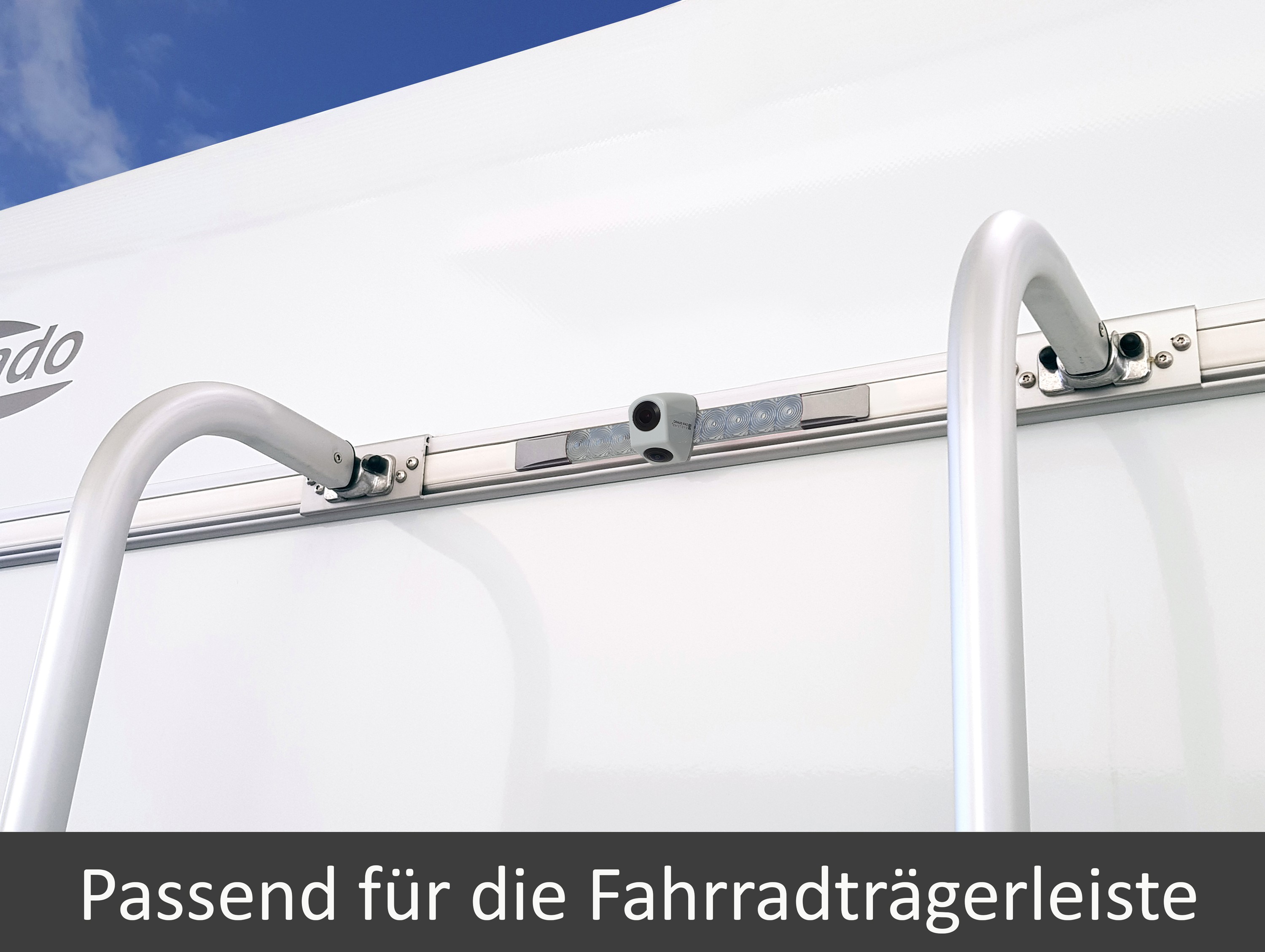

You can mount this universal 3rd brake light with integrated dual rear view camera on the rear wall of any motorhome or camper. It can also be used to replace a standard Hella- brake light. It is identical in construction to the Hella model 2DA 343 106-201.

The standard dashboard switch allows you to turn the rear-facing camera on and off. The camera acts as a rearview mirror and can be turned on while driving. Once you put the car in reverse, the screen also switches to the downward-facing camera.

Device information:

  • Constructed according to IP69K protection class, the highest protection standard for components on vehicles
  • Protection against water in high-pressure cleaners
  • Protection against continuous submersion
  • Protection against foreign objects: Absolutely dustproof
  • Protection against contact and shock
  • A high-quality, unobtrusive housing ensures a perfect appearance, which harmonizes well with all types of vehicles
  • Image sensor: 1/3 inch Sony CCD, model no. 810
  • Light sensitivity 0.1 lux
  • The high light sensitivity of the outstanding image sensor, together with the back-up light, ensures excellent night vision
  • Excellent resolution: 610,000 pixels with 700 TV lines
  • Waterproof screw connections
  • Vibration resistant up to 8G
  • Automatic backlight compensation
  • Automatic brightness u. White balance
  • anti-fog lotus coating
  • focal length camera 1: 1.8 mm, F 2.0
  • focal length camera 2: 2.8 mm, F 5.5
  • 170° angle of view for close range and 95° for long range
  • At the rear of the vehicle, no power connection for the cameras is necessary
  • Noise ratio: > 48 dB with automatic gain control
  • Video signal output: 1 Vp-p, 75 Ohm
  • Power supply: DC 9-14 V
  • Power consumption: < 2.0 W per camera
  • Dynamic range: 120 dB
  • Operating temperature range: -30° C to 70° C
  • Stand temperature range: -40° C to 80° C
  • Electronic shutter speed: 1/50 (PAL) ~ 1/100. 000 s
  • Near distance lens detection range: 110° (vertical) / 150° (horizontal) / 170° (diagonal)
  • Far distance lens detection range: 60° (vertical) / 75° (horizontal) / 95° (diagonal)

Product dimensions and weight:

  • Length: 280 mm
  • Width: 26 mm
  • Height: 10 mm (brake light housing)
  • Weight: 135 g


  • EAN: 4260456384895
  • Packaging length: 355 mm
  • Packaging width: 120 mm
  • Packaging height: 70 mm
  • Packaging weight 415 g


  • CE
  • E-Mark
  • IP69K waterproof and dust resistance test (for high pressure/steam jet cleaning, specific for road vehicles)
  • Salt vapor test certificate
  • RoHS

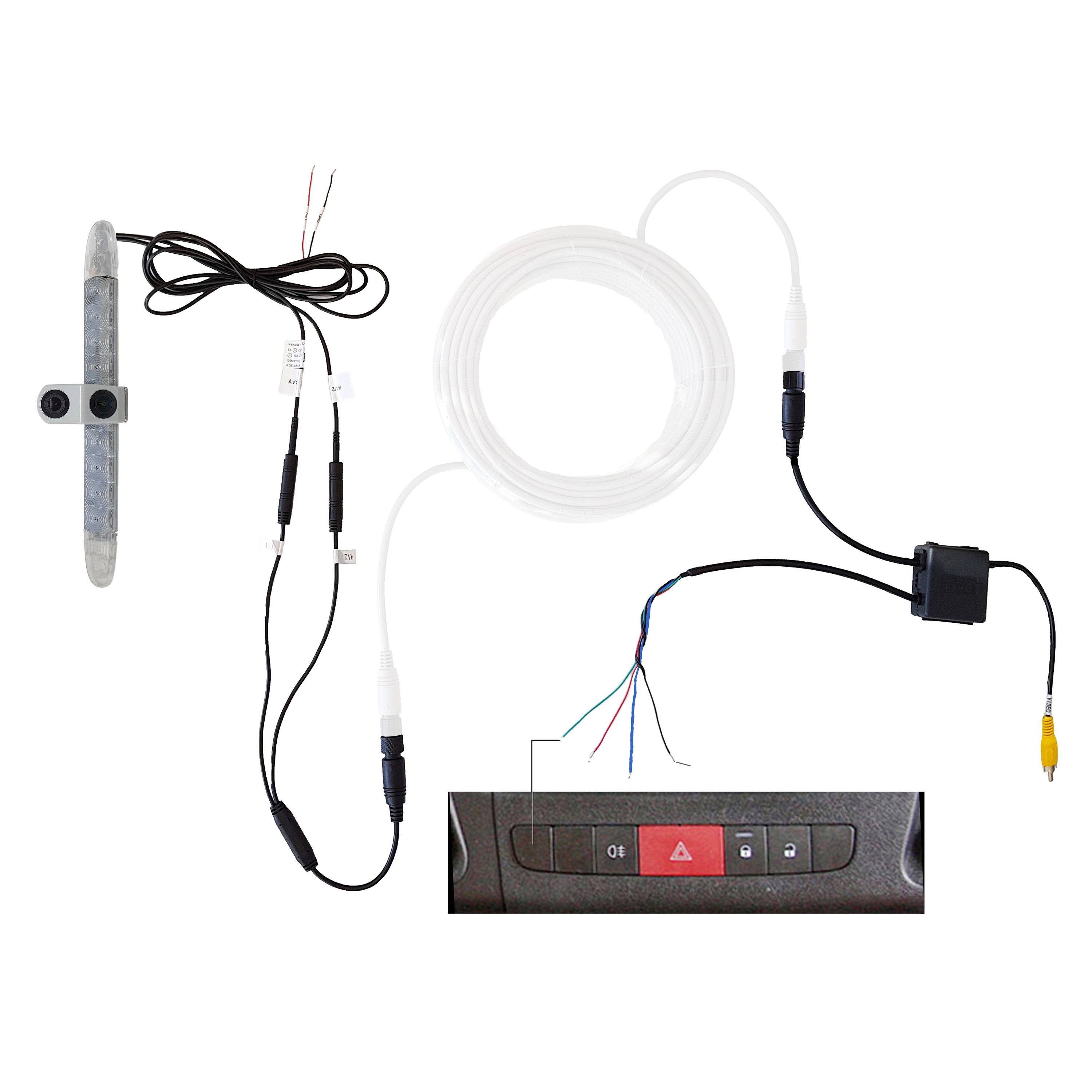

Scope of supply:

  • 1x double rear view camera with 3. Brake light (9-14V)
  • 1x adapter, from 2x 4 pin mini connector to 6 pin screw connector
  • 1x adapter, from 6 pin screw connector to 1x RCA and power supply
  • 1x installation and operating instructions
  • 2x mounting screws
  • 1x double-sided mounting tape
