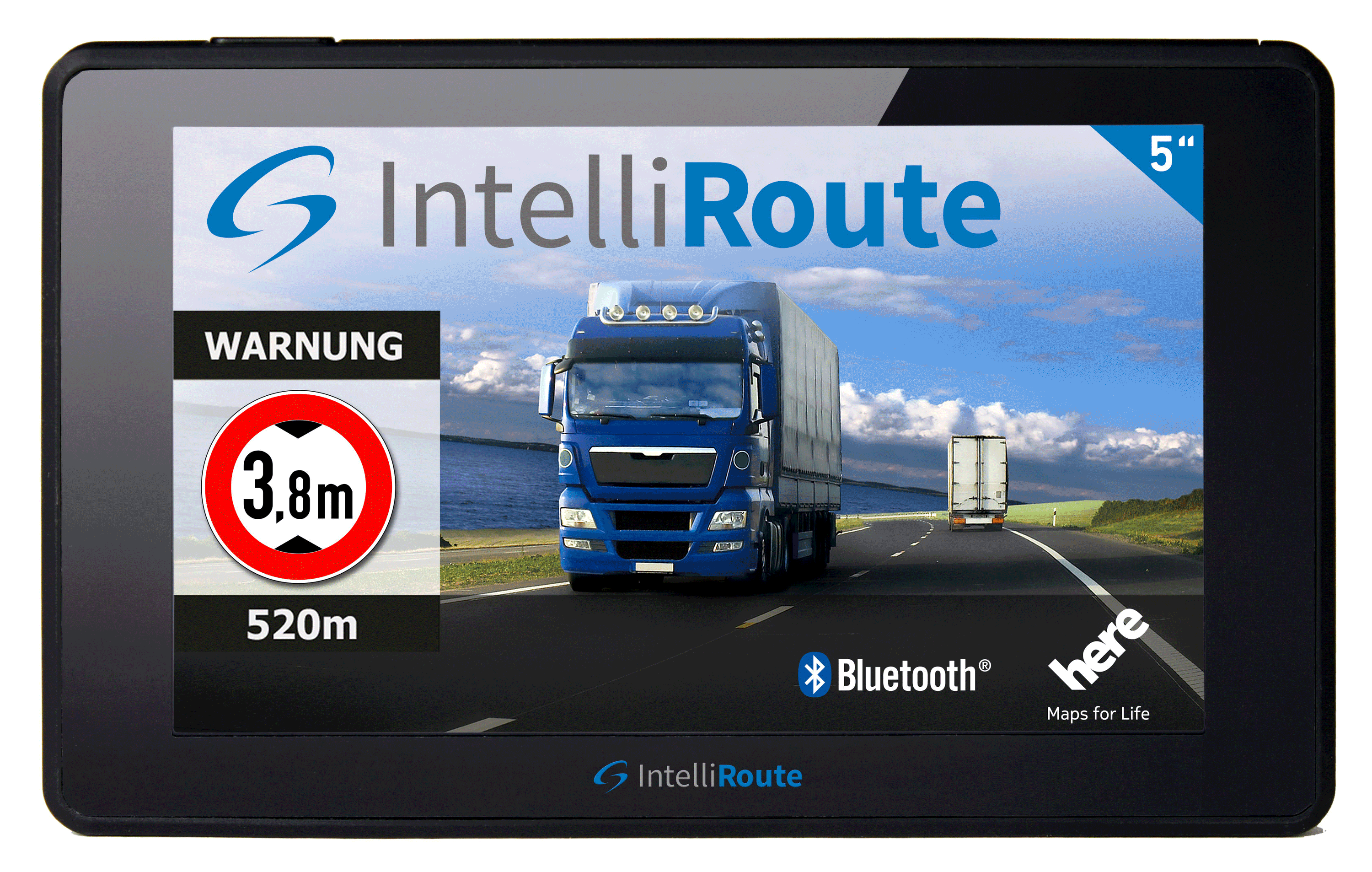

Professional 5 inch Android Navigation System for Trucks

IntelliRoute TR6000DVR with DVR accident driving recorder, reversing camera connection, internet access and Android app expansion options.

Advantages to car sat nav:

IntelliRoute creates a route based on your vehicle's characteristics. Simply tell the device the size, weight, load type, emission class and others, and the specialised software will calculate a safe, truck-friendly route. Routes are calculated based on roads of appropriate width and height; avoiding low bridges or weight restrictions, as well as many other hazards.

Google Playstore

From the Google Playstore, you can freely download apps as you wish via WiFi and enjoy additional features on your IntelliRoute Android navigation system.

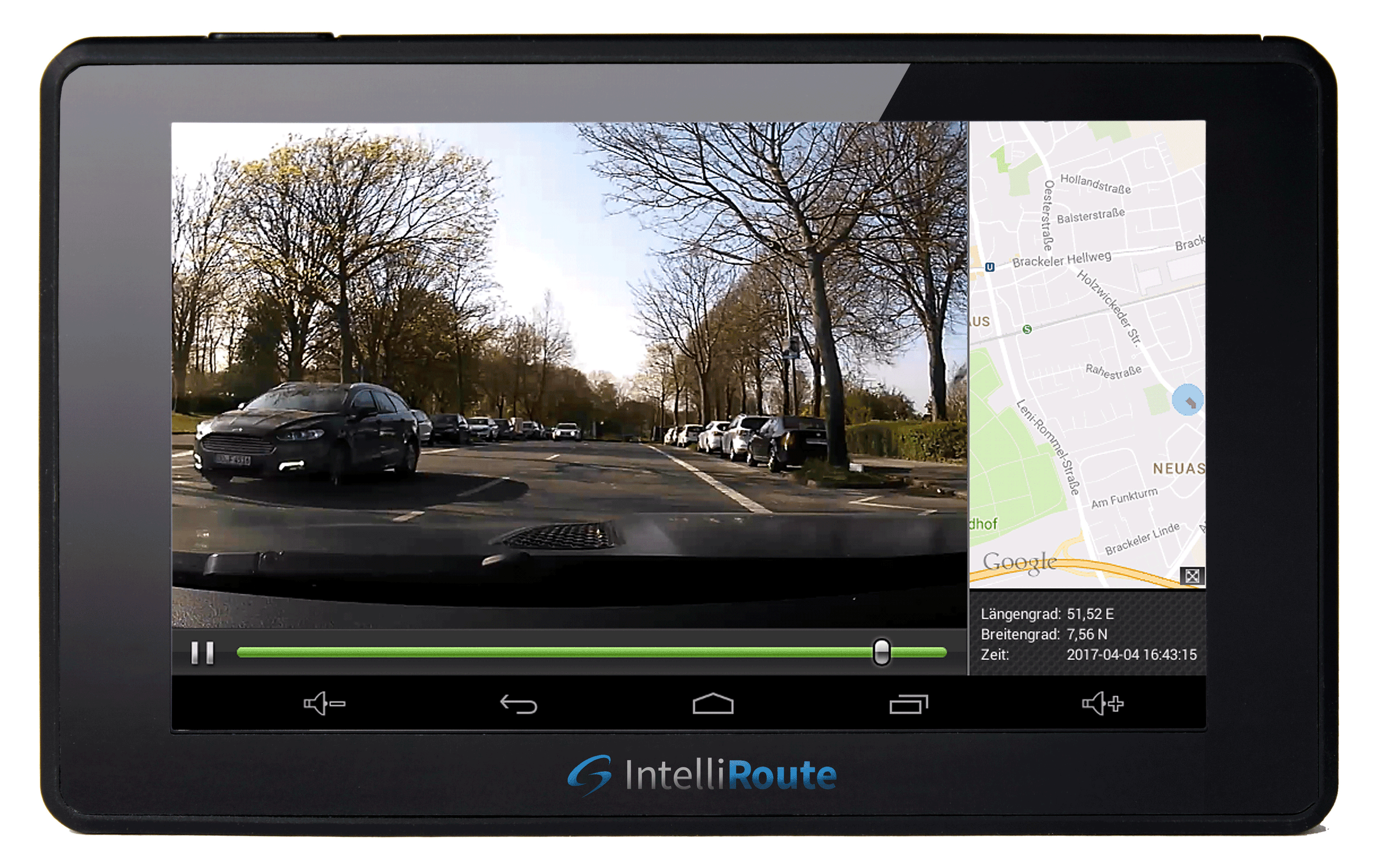

Record full HD video, GPS coordinates, date, time, speed & sounds

Have you ever been unfortunate enough to be involved in an accident that you didn't cause? Wouldn't you have wished to have a video recording of such an event?

Function description:

\t
• Route guidance taking into account vehicle size (height, width, length), weight, truck type (with / without / type of trailer), truck ban, trailer ban, turning ban, turning ban, prohibited load types, hazards (uphill, downhill, curves, crosswind, bumps, schools), tunnel restrictions and environmental zones.
\t
• Route warnings are given even without entering a destination!
\t
• Free lifetime Here Global map updates of 47 countries (36 of which have motorhome-specific navigation).
\t
• Here Global map updates via WiFi (no computer required)
\t
• Built-in WiFi
\t

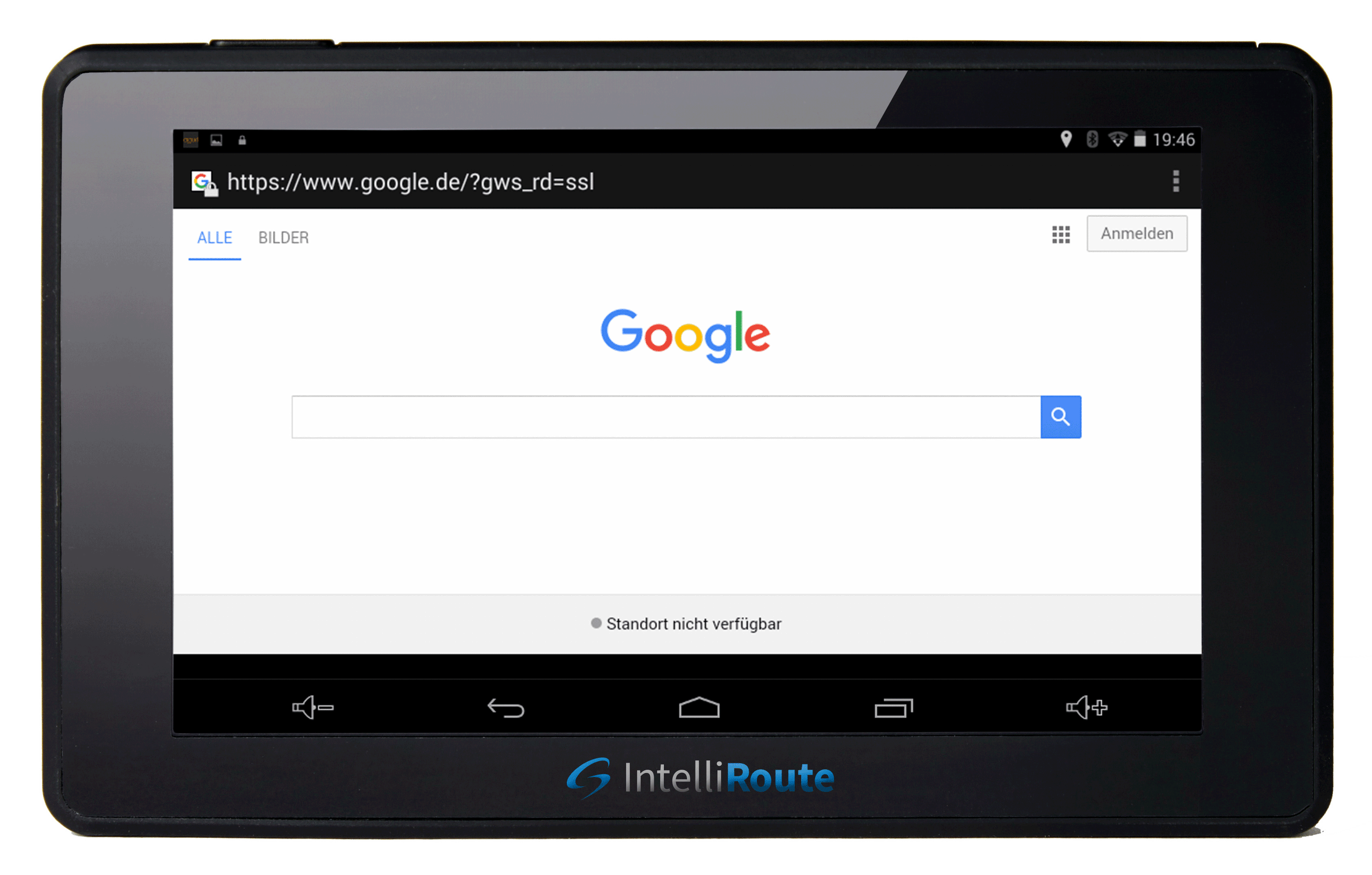

• Internet access*
\t
• Google voice search
\t
• Android operating system with Google Play Store
\t
• Any apps from the Play Store can be used
\t \t
• Active lane assistant for short and long range (lane guidance)
\t
• 3D junction views (Junction View)
\t
• Forecasts for arrival times are vehicle-specific adjustable (+/- 25%)
\t
• Gradients or slopes are avoided on request (selectable between 9% and 20%)
\t \t
• multi-routing - 7 tours with up to 16 intermediate destinations each can be stored (manual or automatic sequence)
\t \t
• Destination guidance by entering GPS coordinates (3 different input options selectable)
\t \t
• Truck-specific POIs such as truck parking spaces, truck petrol stations, truck workshops, snack facilities and toilets (POIs can be imported)
\t \t
• Over 2 million POIs (with telephone numbers) and search along the route) - can also import csv file (e.g. from Excel)
\t \t
• free online live traffic congestion guidance (mobile internet access/WiFi required, consumes 400MB/month*)
\t \t
• Truck-specific radar locations
\t \t
• Map view: 2D view and 3D view
\t
• Save your favourites
\t
• Truck and optional car mode
\t
• Tunnel recalculation
\t
• navigate by OVI symbols or a motorway exit on the map
\t
• Legal vehicle-specific speed warning system

Device information:

\t

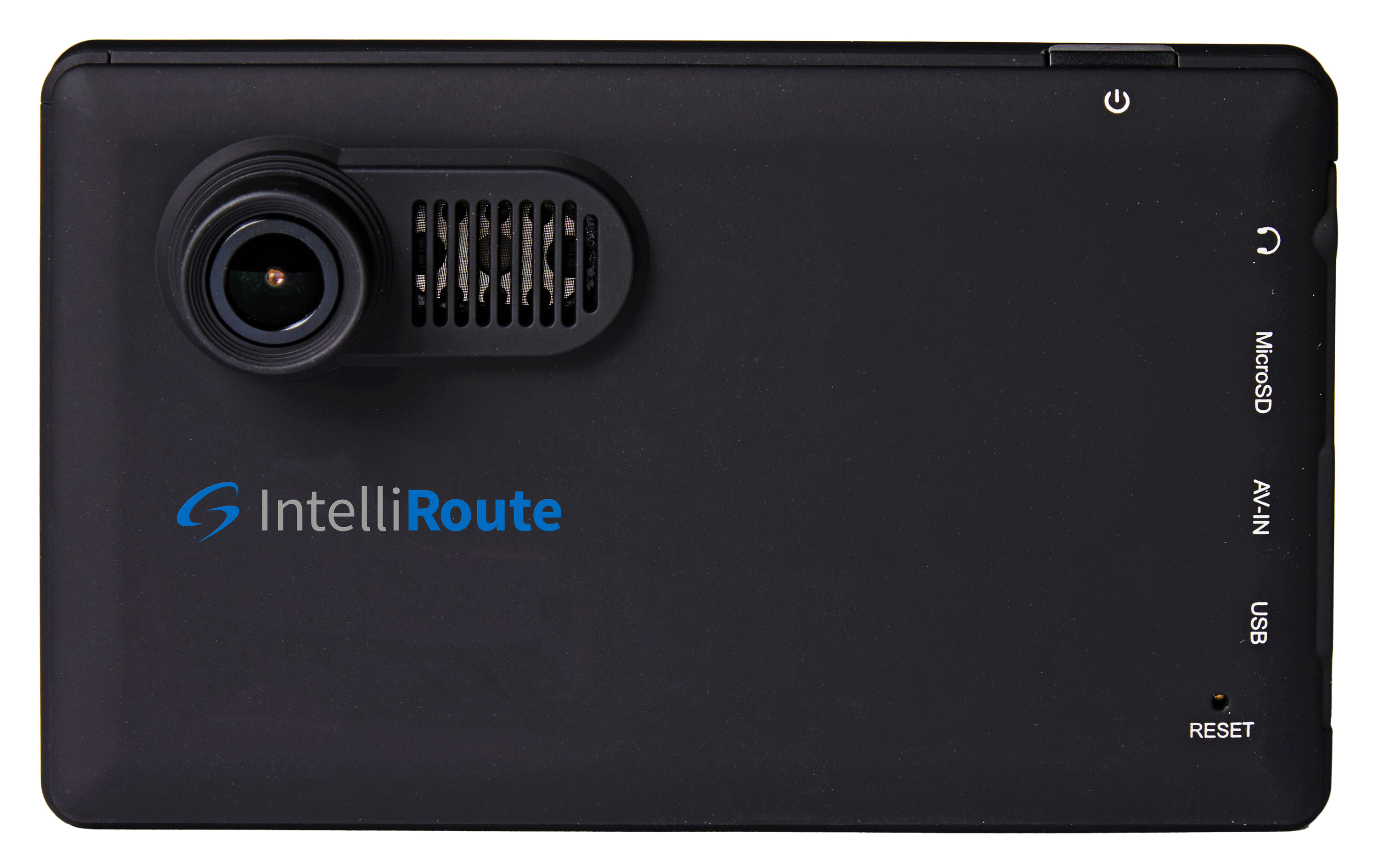

• Built-in dashcam: records video, GPS coordinates, date, time, speed and sounds
\t
• Full HD dashcam with 130° wide angle
\t
• Full-HD 1920×1080 (1080p) recording mode
\t
• 3-axis impact sensor triggers automatic recording
\t
• Rear camera connection, 2.5mm jack video-in
\t
• automatic detection of video input signals
\t
• Integrated MP3 and media video player
\t
• 8 GB internal memory for apps, music or videos, among other things
\t
• Bluetooth® connection to external loudspeaker
\t
• 5-colour LCD touch screen (129 mm)
\t
• Screen resolution: 800 x 480 pixels
\t \t
• Processor (CPU): MTK8127 Cortex A7
\t
• Unit size: 135x84x13 mm (25 mm with camera lens), 182g
\t
• Package size: 249x160x81mm, 915g

Lifetime Here Map updates worth 159 free of charge.

Scope of delivery:

\t
• Windscreen mount
\t
• 3M dashboard adhesive plate
\t
• 12/24V car charger
\t
• 110 / 230 V mains adapter
\t
• Hard-shell protective bag
\t
• USB data cable
\t
• Rear view camera cable 2.5mm jack to Cinch
\t
• Micro SD card for DVR drive recorder (8 GB / expandable up to 32 GB)
\t
• Cable mounting bracket
\t
• Operating instructions (on the unit)

Optional accessories:

\t
• Radio voice output amplifier module
\t
• Vehicle-specific bracket
\t
• Colour rear view cameras
\t
• 5" sun visor
\t
• Hardwire kit

*Smartphone / tablet and / or mobile internet access or WLAN required, Live Traffic Service consumes only 400 MB if used 8 h per day / 20 days per month.

---

Common features of all IntelliRoute models:

---

IntelliRoute has the answer

This unique software creates a route based on the characteristics of your vehicle. Simply tell it the size, weight, load type, pollution class and tunnel category (if required) and the specialised software will calculate a safe, truck-friendly route. Routes are calculated based on roads of appropriate width and height; avoiding low bridges or weight restrictions and many other hazards. However, route warnings are given even without entering a destination!

Restrictions that are taken into account when guiding to a destination:

• Height
• Width
• Length
• Weight
• Weight per axle
• No trucks allowed
• No trailers
• Low emission zone
• No turning possibility for lorries
• No right turn for trucks
• No left turn for trucks
• HGVs with dangerous goods prohibited
• Trucks with water-damaging cargo prohibited

Warnings to keep you safer

• Steep incline ahead
• Steep gradient ahead
• Tight curve ahead
• Crosswinds
• Bumps
• Schools
• Pedestrian zones

Input vehicle specific data from up to 10 different vehicles:

Trailer type:

• Truck without trailer
• Truck with 1 trailer
• Truck with 2 trailers
• Truck with 3 or more trailers
• Trailer: e.g. avoids roads where vehicles with trailers are prohibited
• Semi-trailer or tractor with one or more trailers

Load type:

• Truck without trailer
• None (Normal)
• Dangerous goods
• Explosive and flammable
• Harmful to water

ADR tunnel code:

• None
• Unknown
• B
• B/D
• C
• C/D
• D
• E
• B1000C
• B/E
• C5000D
• C/E
• D/E

Here Global road maps of 47 countries, 36 with specific truck navigation:

36 countries with specific road attributes for trucks and large vehicles:

Albania, Austria, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom.

47 countries Road coverage in total:

Andorra, Albania, Azores, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Denmark, Estonia, Finland, France, Germany, Gibraltar, Greece, Ireland, Italy, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, United Kingdom, Macedonia, Moldova, Monaco, Montenegro, Netherlands, Norway, Austria, Poland, Portugal, Romania, Russia, San Marino, Sweden, Switzerland, Serbia, Slovakia, Slovenia, Spain + Canary Islands, Czech Republic, Turkey, Ukraine, Hungary, Vatican City, Belarus, Cyprus.

HERE Global Lifetime Map Updates via WiFi worth 159,- incl. VAT free with Navi purchase!

In 2008, the navigation systems offered by Car Guard Systems were the first mobile navigation systems designed specifically for the needs of trucks and large commercial vehicles.

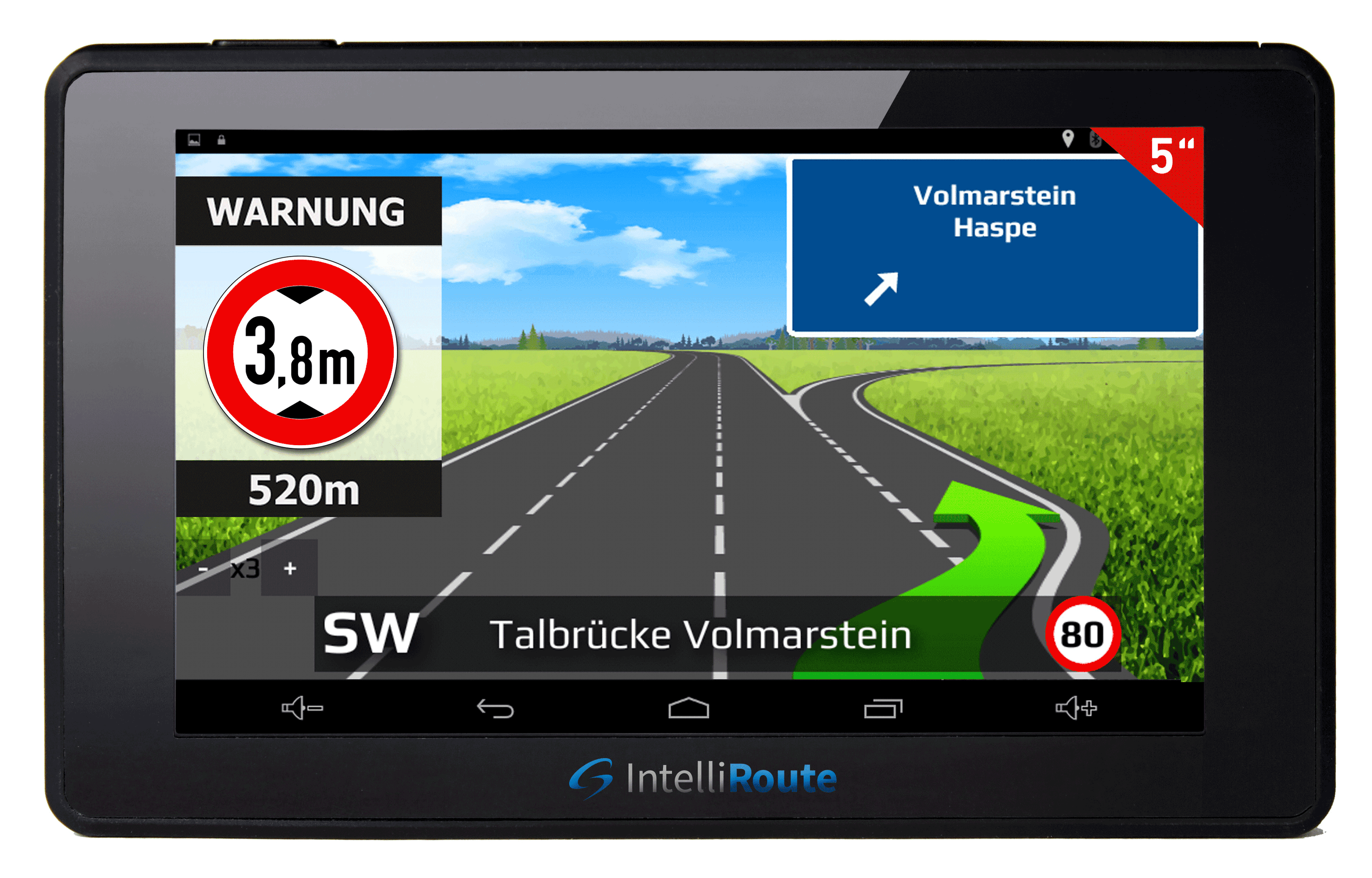

3D junction views - Junction View

Large screen views of all major motorway junctions and exits are displayed for route assistance to help you navigate more safely to your destination.

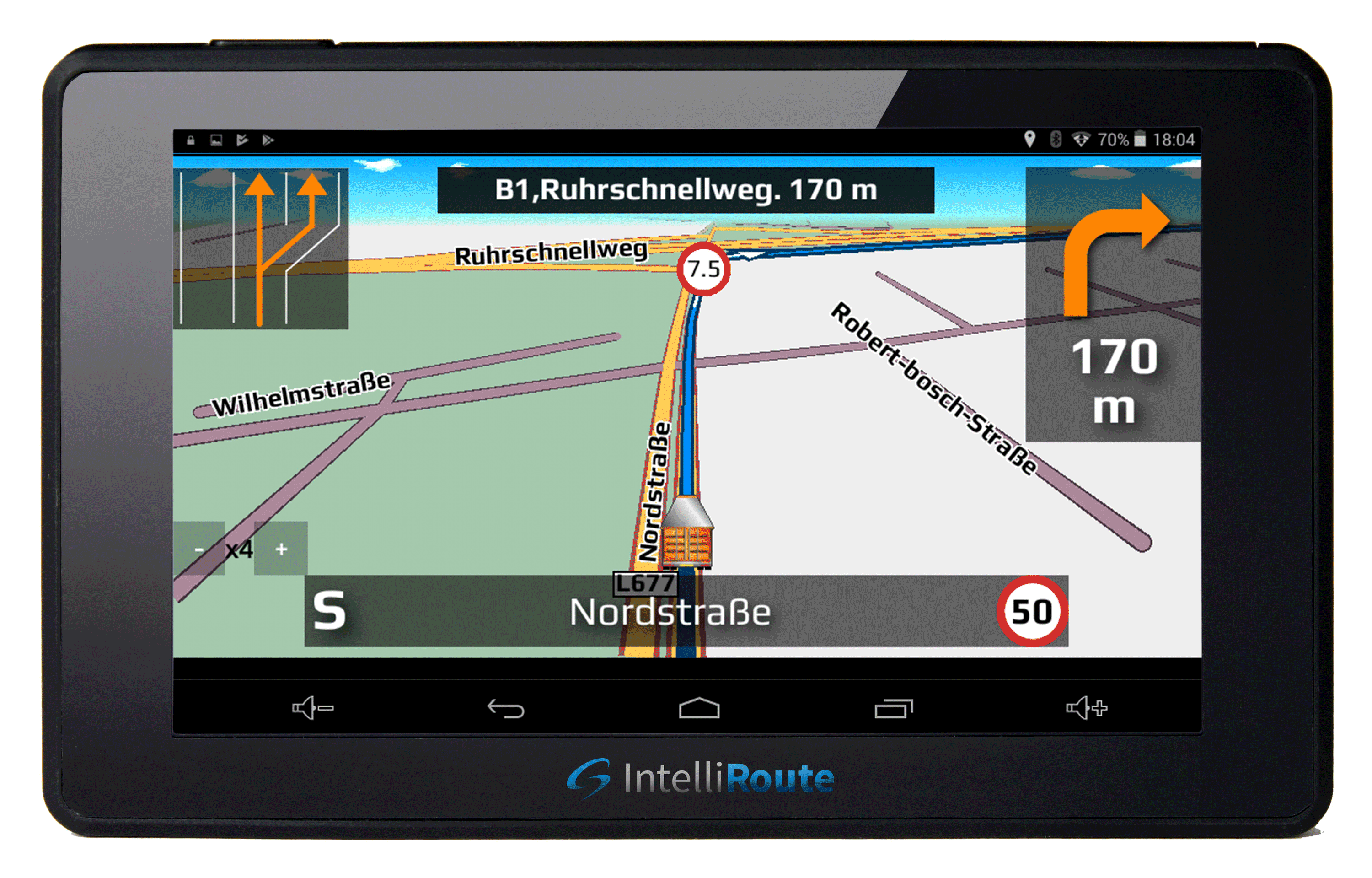

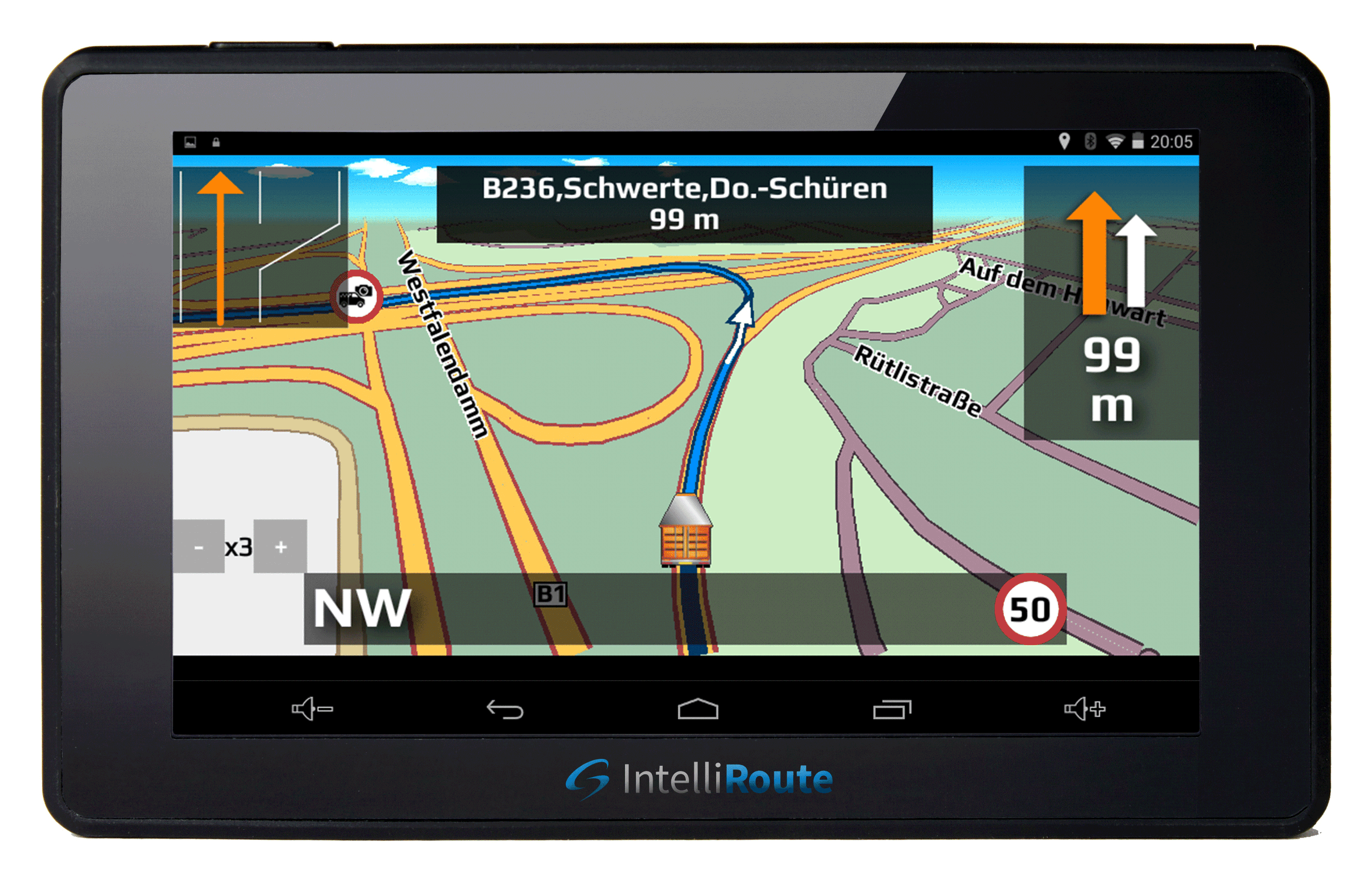

Dual Lane Assistant

Active Lane Assistant (Lane Guidance) for anticipatory assistance, Lane Assistant Pro for the current close-range. With lane assist, you as the driver no longer have to think about which lane to get into or which lane leads to which exit - that's now the navigation system's job.

For individualists

Destination guidance possible by entering GPS coordinates. (3 different input formats)

Guarantee for the latest map material

After registration and initial GPS contact, you have the option of always receiving the latest Here Global map material free of charge.

Free lifetime Here Global map updates via WiFi

IntelliRoute provides you with the latest map material constantly free of charge, worth 159 * (mobile sat navs) or 249 * (built-in sat navs), which can be updated via a WiFi connection (no computer required).

Advanced road maps

IntelliRoute uses high quality digital maps from market leader Here Global. Routes can be calculated using postcodes, street names, places of interest and even by simply entering a city, town, GPS coordinates, multiple route or selected destination directly on the map.

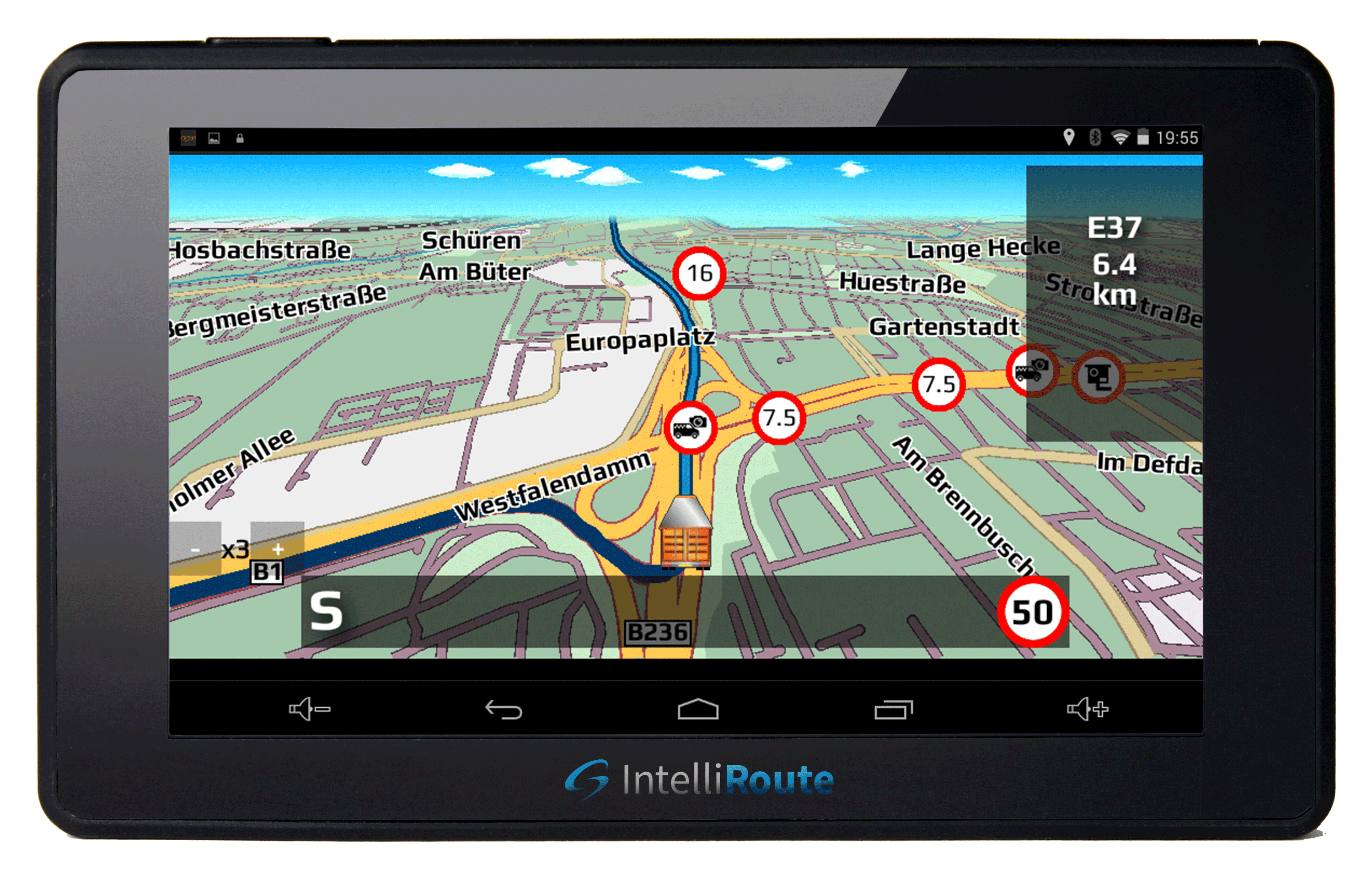

Truck-specific radar locations

Unlike other navigation devices, our navigation systems show you speed limits that are specific to your vehicle size and class. What's more, Intelliroute lets you update the SpeedShield database 24/7, 365 days a year, free of charge.

IntelliRoute gets you from A to B effortlessly, while ensuring that your driving licence is not compromised.

Advanced alerts for:

• Speed cameras
• Traffic light cameras
• Average speed cameras
• Roadworks cameras
• Toll cameras
• Accident danger points
• Danger zones

Entering destinations by voice

If you want to change your destination while driving, you can keep your hands on the wheel and set the destination conveniently by voice input.

Day & Night Mode

The brightness of the screen can be adjusted for day & night mode in the menu. Night mode makes the map view darker so that you are not dazzled.

Map view

You can choose between 2D view and 3D view as the map view.

Storing Favourites

Personal destinations can be saved via the menu. These can be saved as destinations if required. They also appear as symbols in the map view.

Tunnel recalculation

If GPS reception is disrupted in a tunnel, an exact route simulation is carried out.

Over two million points of interest in Europe (many with telephone numbers)

Truck-specific Points of Interest with truck rest areas, truck refuelling stations, extended information on conventional refuelling stations, truck maintenance facilities, accepted truck payment cards and diesel pump availability. In addition to this extensive OVI list, you get data on many hotels, restaurants, petrol stations, speed cameras, car parks, overnight parking, ATMs, airports, railway stations, shops and much more. You can get to your desired destination at the touch of a button. Your own POI favourites can be easily imported via csv file.

Find POIs along your route

Select your desired points of interest from our extensive list of POIs and have them displayed along your calculated route within a radius of approx. 2 km.

Vehicle-specific arrival times

You can adjust the calculated arrival time to the speed you are travelling at to get more accurate forecasts. You can continuously either reduce the time calculation by up to 25% or increase it by up to 25%.

Avoid uphill or downhill gradients

You can specify whether the routes are calculated to avoid unwanted uphill and downhill gradients. To do this, you can select values between 9% and 20% and exclude the corresponding inclines or declines from the calculation.

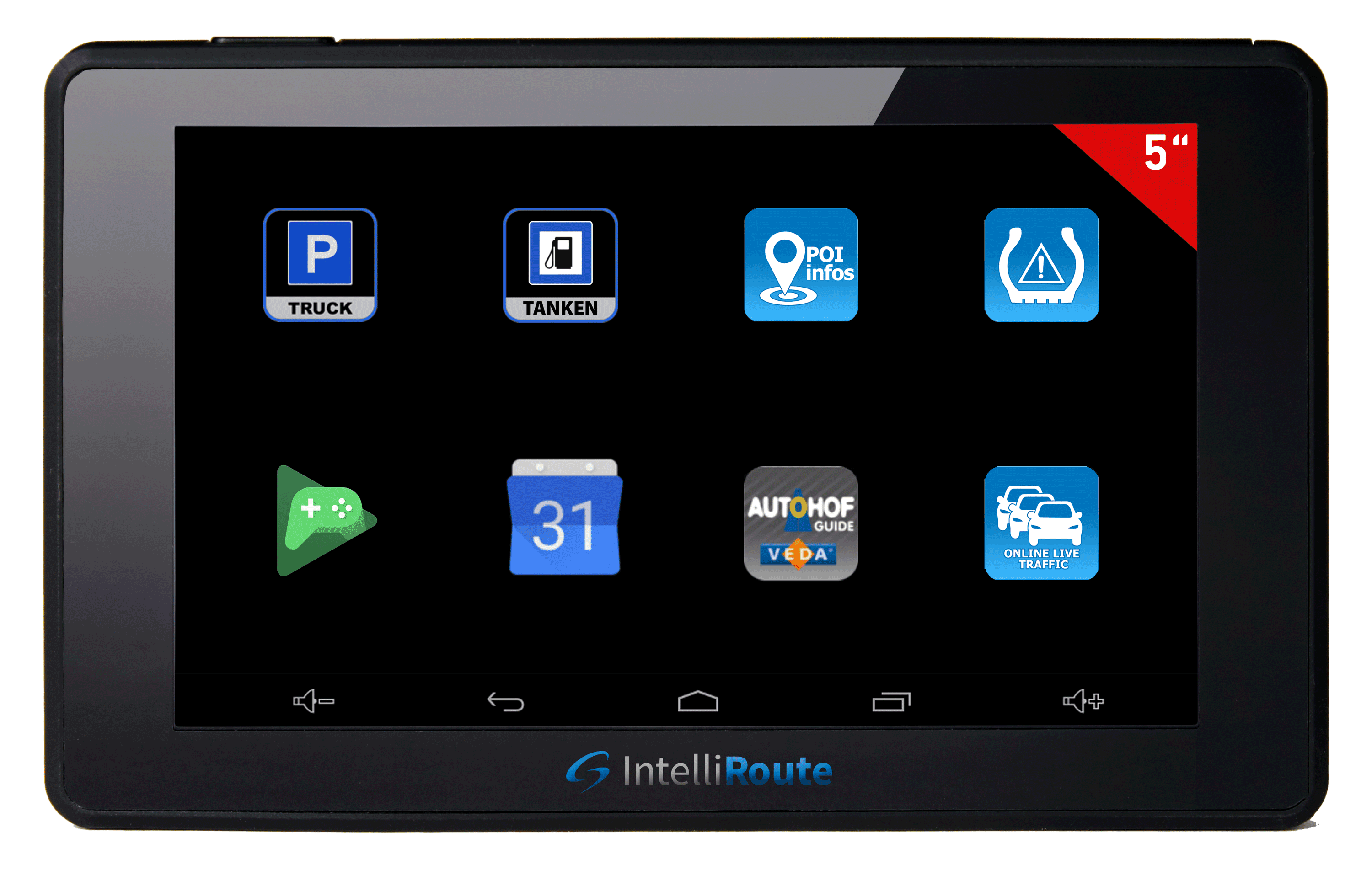

Upgrade your desired equipment

In the Google Play Store, you can freely download apps according to your wishes via WiFi and enjoy countless additional functions on your Android navigation system.

Here are a few suggestions:

Truck parking in Europe

Find or reserve one of more than 10,000 parking spaces on your route according to your desired equipment. These are continuously rated and added to via a community.

Tyre pressure warning system

Up to 10% less fuel consumption, up to 35% longer tyre life, lower accident risk, fits every tyre valve.

Play games

Play games of your choice during rest breaks or after work.

Places of interest

Import your own OVI (POI) lists and use them on the road.

Skype calls

Make international calls to friends or groups on mobile or landline. HD video and voice calls between Skype users are even free.

Load securing

Calculate the force required and the minimum number of lashings needed.

Transport route planning

Optimise your logistics management, create station lists and complete routes.

Cheaper refuelling

Finds the cheapest petrol station in the area, with desired price alarm and price forecast.

Storage and freight exchange

Find free storage space and freight on your route and avoid uneconomical empty runs.

Google Calendar

Synchronise calendars from the office, mobile phone and sat nav (or all colleagues) and always be up to date.

Live traffic reports

Over 50 million road users notify each other of traffic jams, road works, closures, etc.. Everything in real time!

Driving and rest times

Tachograph and logbook to avoid fines and maximise driving time hours.

E-mail for Outlook etc.

Retrieve, read, reply to mails, send photos, add and view attachments.

ADAC international helper

In the event of breakdowns, accidents, illness or legal questions, you will be helped with country-specific information for more than 50 travel countries.

Consumption recording

The app records routes, documents refuelled and paid fuel quantities and calculates consumption. The perfect logbook.

Car sharing

Find the next available vehicle near you.

Find a taxi quickly

Plan trips in advance, submit special requests and pay with the app.

Optimise your driving style

Improve your driving style, drive more safely and save fuel at the same time.

Parking assistant

Where is my car? Where can I find a parking space? Where can friends park who are coming to visit me?

Find a toilet

Find the nearest toilet. Thanks to the community, the toilets are also rated in terms of cleanliness.

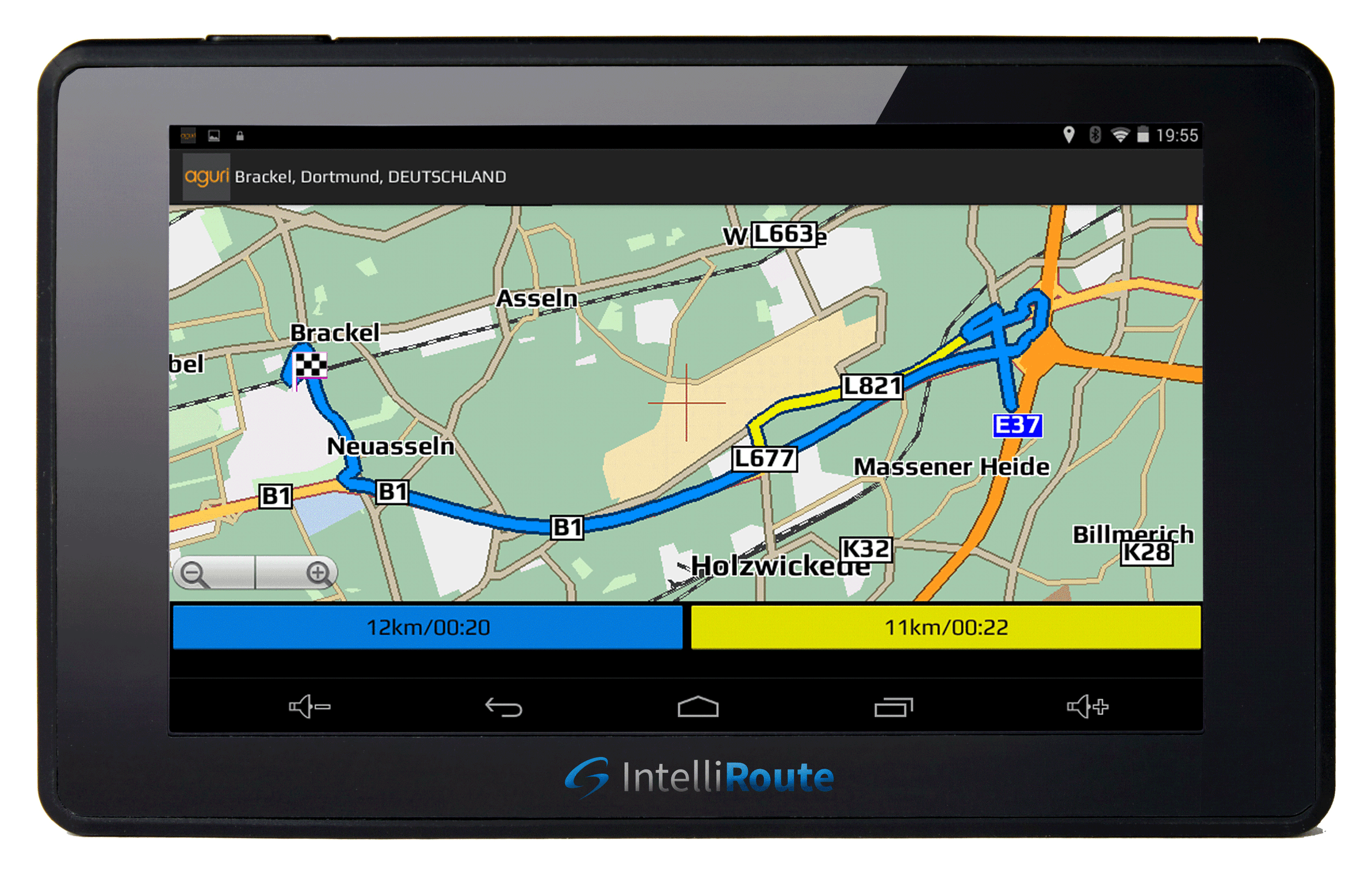

Multiple route calculation (multi-routing)

Car Guard Systems navigation devices have always had the most elegant design. But not only do they look good, they also offer the performance to match. Take our new and unique multi-routing software. Multiple Routes allow you to calculate a single route with up to 16 different destinations by simply adding the addresses. You don't have to stop and restart the device and laboriously search for each address. You can now easily calculate all destinations for the day, change the order at any time, add new destinations or delete them again. Up to eight travel routes with several destinations to be reached in succession can be created.

If you wish, you can have the shortest route and most sensible sequence of stages calculated automatically. You can select route options for each individual stopover. At each stop, the map view shows you the stopover time and distance.

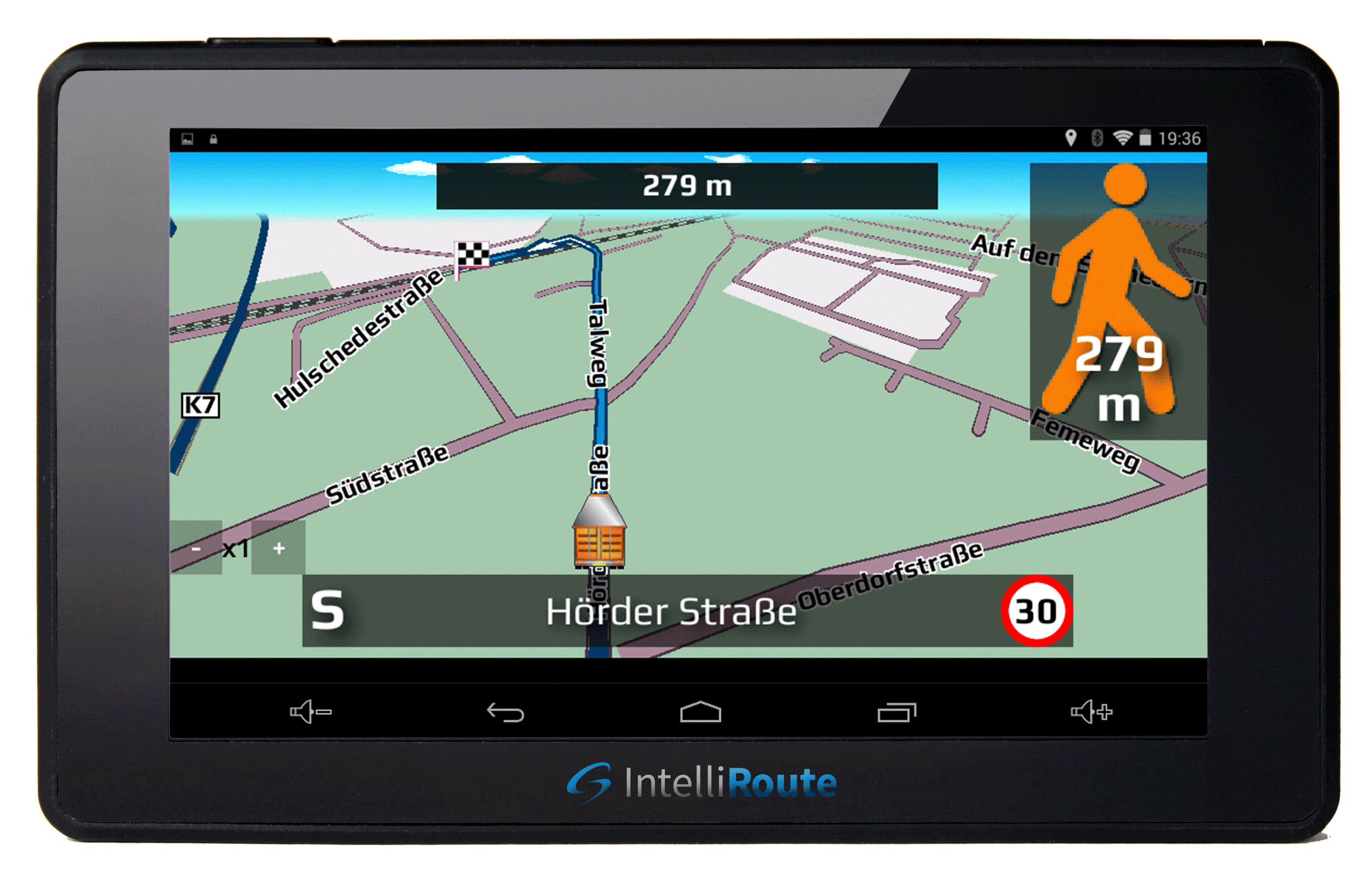

Truck and optional car mode

While IntelliRoute is specifically designed to guide trucks and other large vehicles on safe and approved roads, the product also has a setting for cars. Simply switch the navigation system to car mode and you will be guided to your destination along the best possible route for your car. Since the navigation system is offered as a mobile version, it can be easily switched between several vehicles. That makes two navigation systems in one!

Connecting the car speakers

To play music, video and navigation announcements (included with TR9100/ radio voice output amplifier module required with TR8050, TR8020, TR7000 and TR6000).

Free online live traffic congestion guidance

If you drive for a living, you know how important it is to have accurate information about what to expect on the road.

Accurate and reliable information is a must to ensure you arrive on time for your appointments. Traffic information is fed in from hundreds of thousands of vehicles and sensors across Europe, making it very up to date....

IntelliRoute's congestion warning service alerts you to all traffic incidents in the country and lists them in order of distance from your current position or alphabetically. However, in addition to this overview, you can also have traffic incidents monitored that are on the route you have programmed into the system. And if there is a traffic jam on your route, you can simply have the navigation system automatically calculate a route (with alternative route) that avoids it.

Smartphone / tablet and / or mobile internet access or WLAN required. Live Traffic Service consumes only 400 MB if used 8 h per day/ 20 days per month.

Intelligent route calculation

The route is calculated depending on the distance travelled (such as steep gradients), vehicle speed, vehicle dimensions, vehicle type, vehicle load, intended use, etc.

Navigate by OVI symbols or numbers of a motorway exit on the map

Search and find your destination by OVI symbol or motorway exit number in our Search on Map feature.

Legal speed warning

The legal speed limit on almost all roads throughout Europe is displayed on your navigation system at all times. The value for the desired speed deviation from which the warning is to be issued can be individually selected by the user.

Useful settings

In the menu, you can choose which important information is displayed on the navigation system while you are driving. You can choose between speed, arrival time, remaining time, automatic enlargement of the map when the direction of travel changes. In the "GPS" menu, you can display the current GPS coordinates and the altitude above sea level.

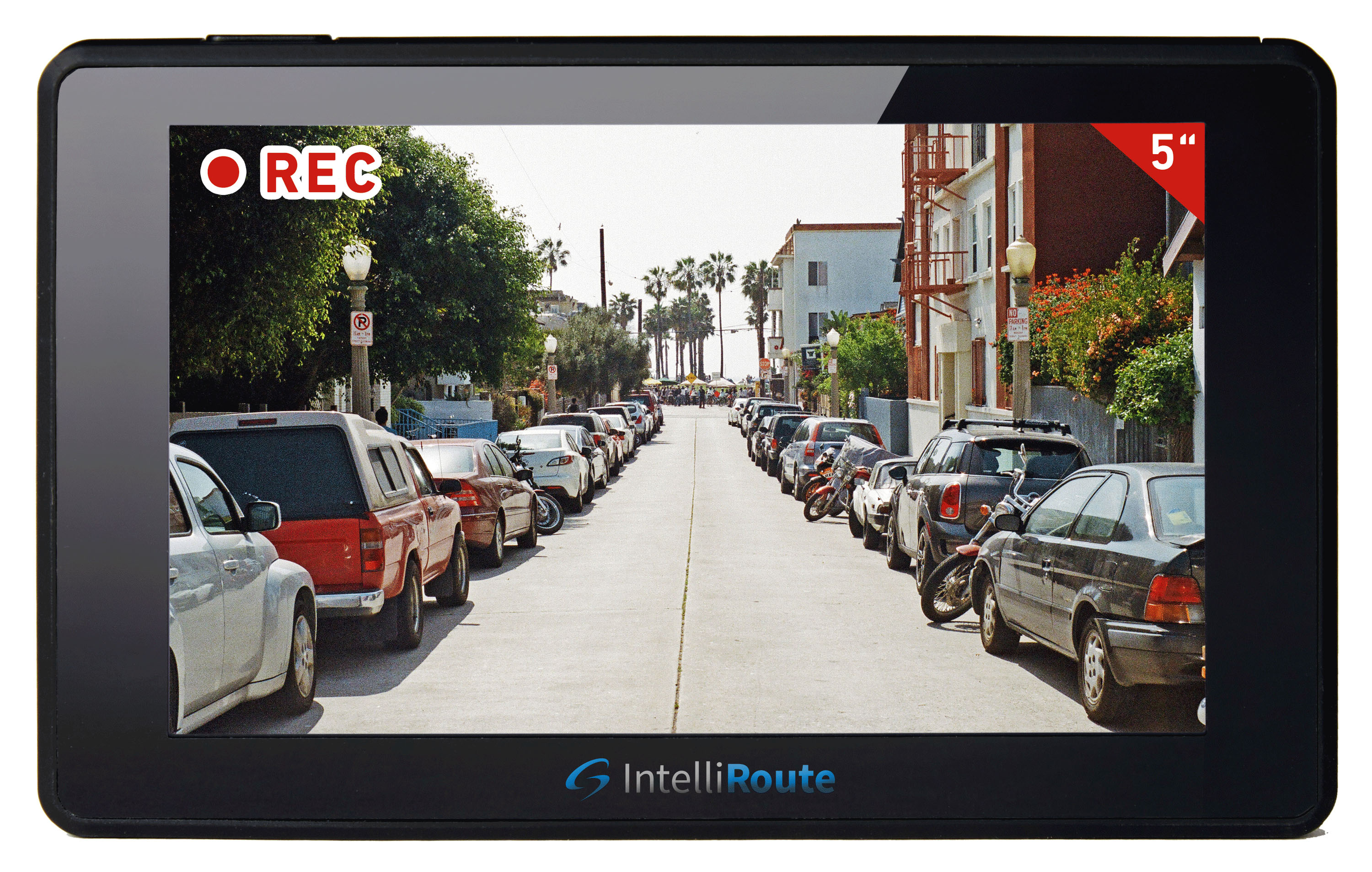

Built-in dashcam: evidence for all cases! - Your accident black box:

(except TR7000, optional on TR9100DAB and TR9100DABFD).

---

Dashcam recordings may be used as evidence in court. This was decided by the Federal Court of Justice, the highest court in Germany, on 15.05.2018 in Karlruhe.

---

Recording of full HD videos, GPS coordinates, date, time, speed & sounds.

Have you ever been unfortunate enough to be involved in an accident that you did not cause? Wouldn't you have wished to have a video recording of such an event?

Have you ever been ticketed for tailgating because a vehicle pulled in too close in front of you while overtaking?

Now, with the IntelliRoute driving recorder, you can have accidents and other incidents you inadvertently get into automatically recorded in crystal clear Full HD 1080p quality. Safety, peace of mind while driving and the option to save a lot of money is what the IntelliRoute offers you!

Be sure at all times to have video evidence of any event or accident not caused by you. This will prevent an increase in your no-claims bonus as well as your car insurance premium.

Compact, stylish and incredibly effective!

IntelliRoute is designed to record clear, high definition, full HD 1080p video of your road route during the day and at night. IntelliRoute permanently records the road ahead using GPS and the high-precision mini camera. Every event is automatically recorded, stored on the included 8 GB micro SD card and can be viewed at any time. (expandable up to 32 GB)

GPS technology

IntelliRoute doesn't just record an event, it also stores it with the exact GPS coordinates, date, time, sounds and current speed! So you know, for example, where your truck was travelling or exactly where a recorded event took place.

Integrated 3-axis impact sensor

Dangerous events are detected by the 3-axis impact sensor. These are automatically cut out of the video footage and stored in a separate folder that cannot be overwritten.

24-hour day and night mode

IntelliRoute is equipped with a sophisticated full HD video camera that takes incredibly sharp pictures during the day and at night safe recordings around the clock!

Reliability

IntelliRoute automatically detects full maps and overwrites oldest data first.

---

We welcome you to our website. Thank you for your interest in our products!

Errors and omissions excepted. Status 28.02.2022
