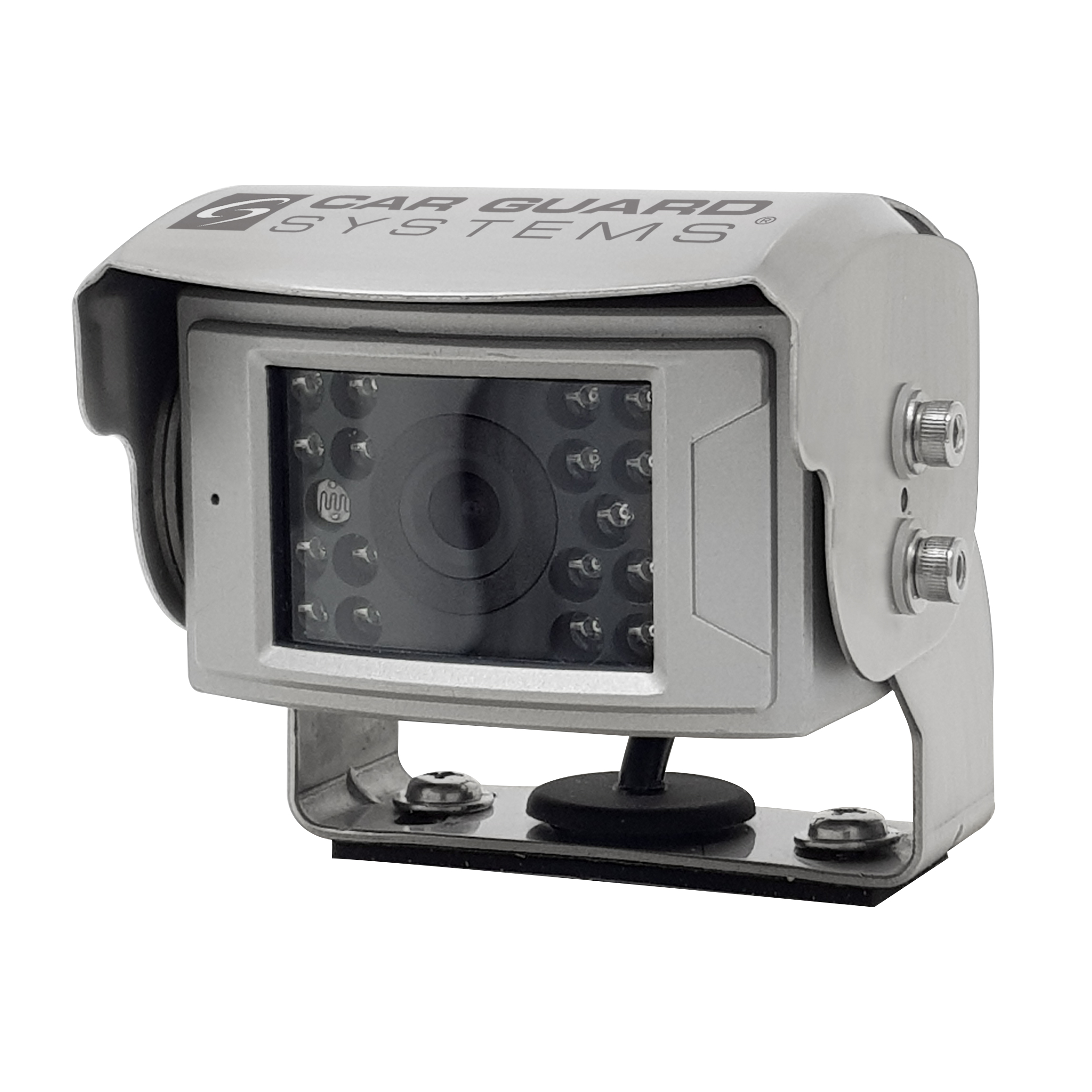

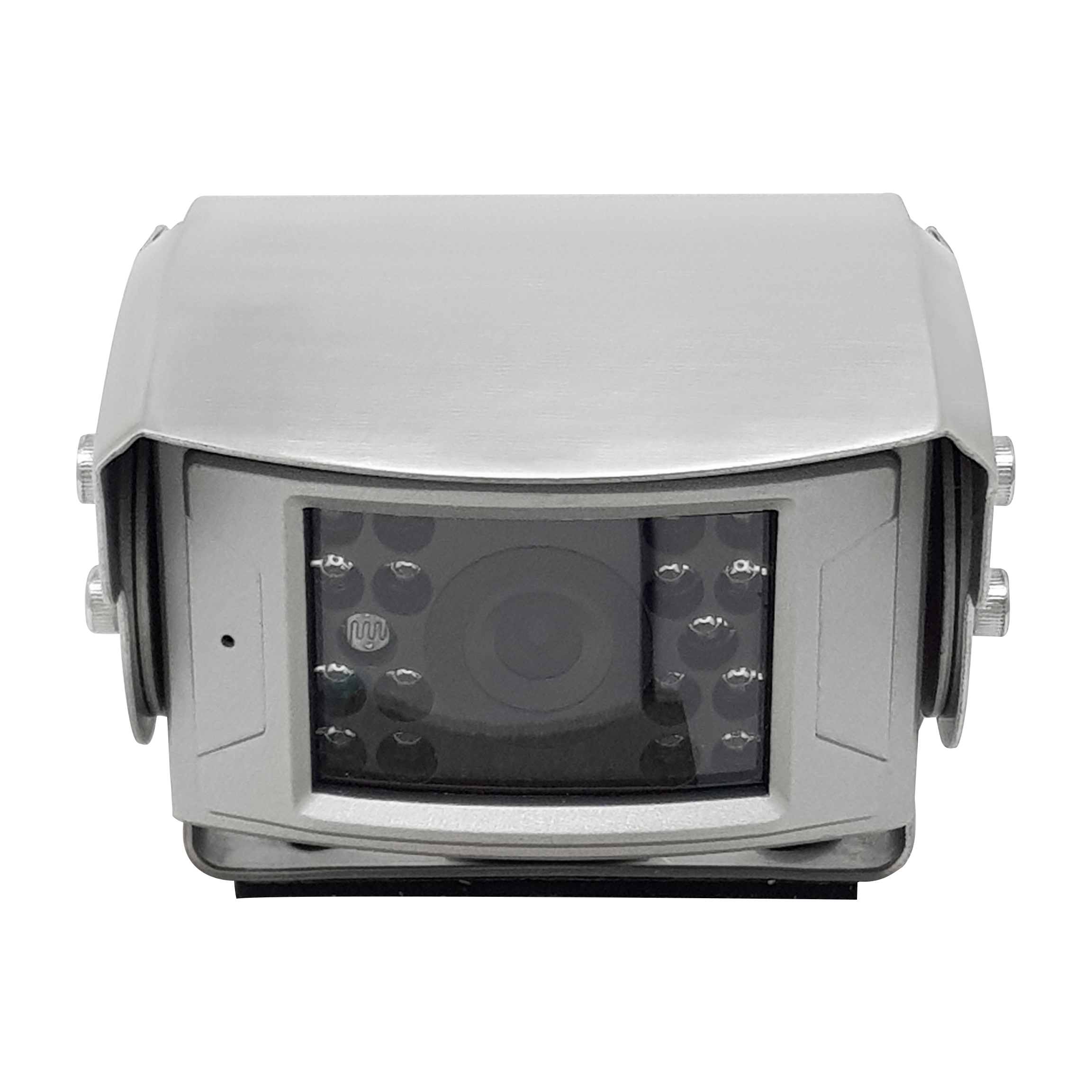

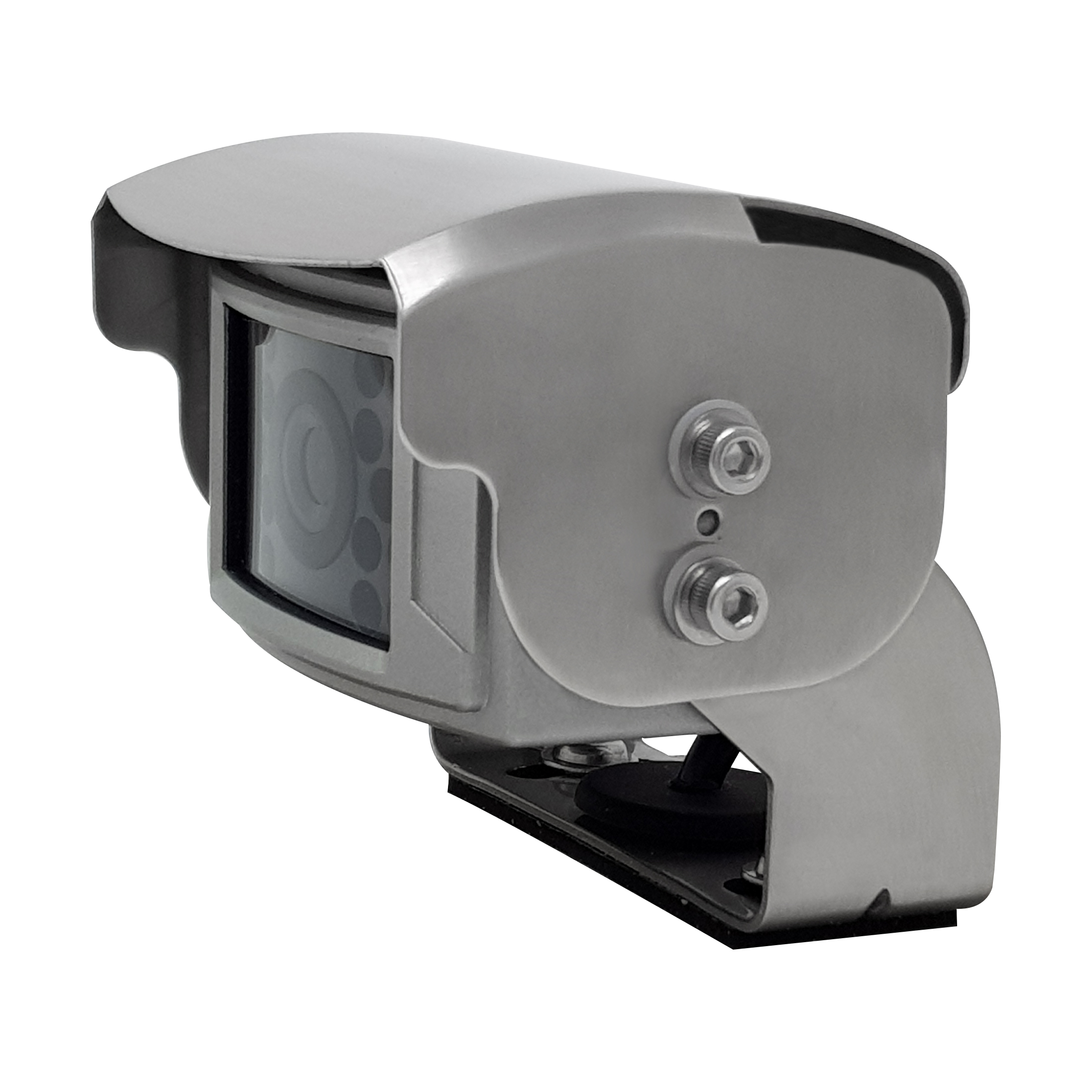

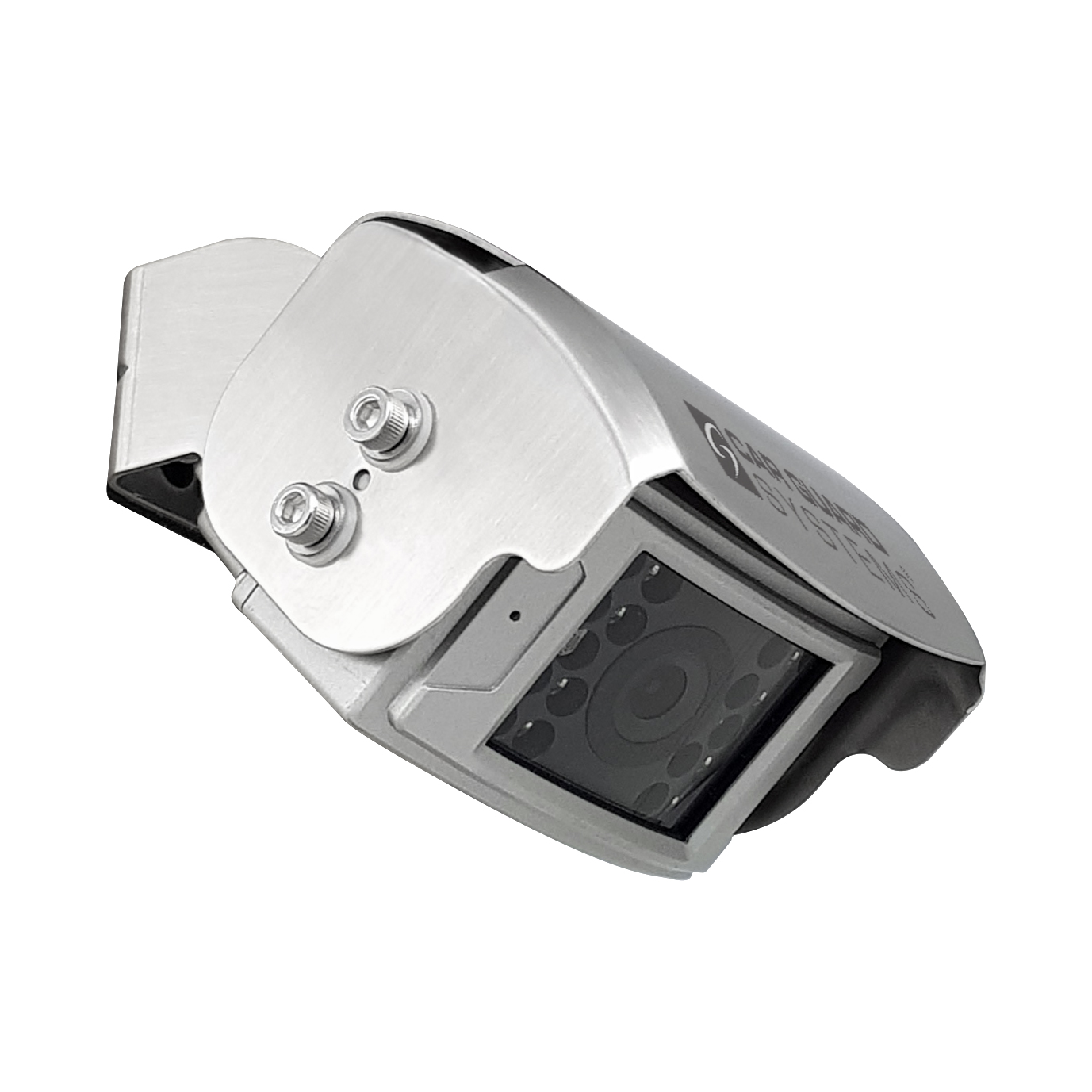

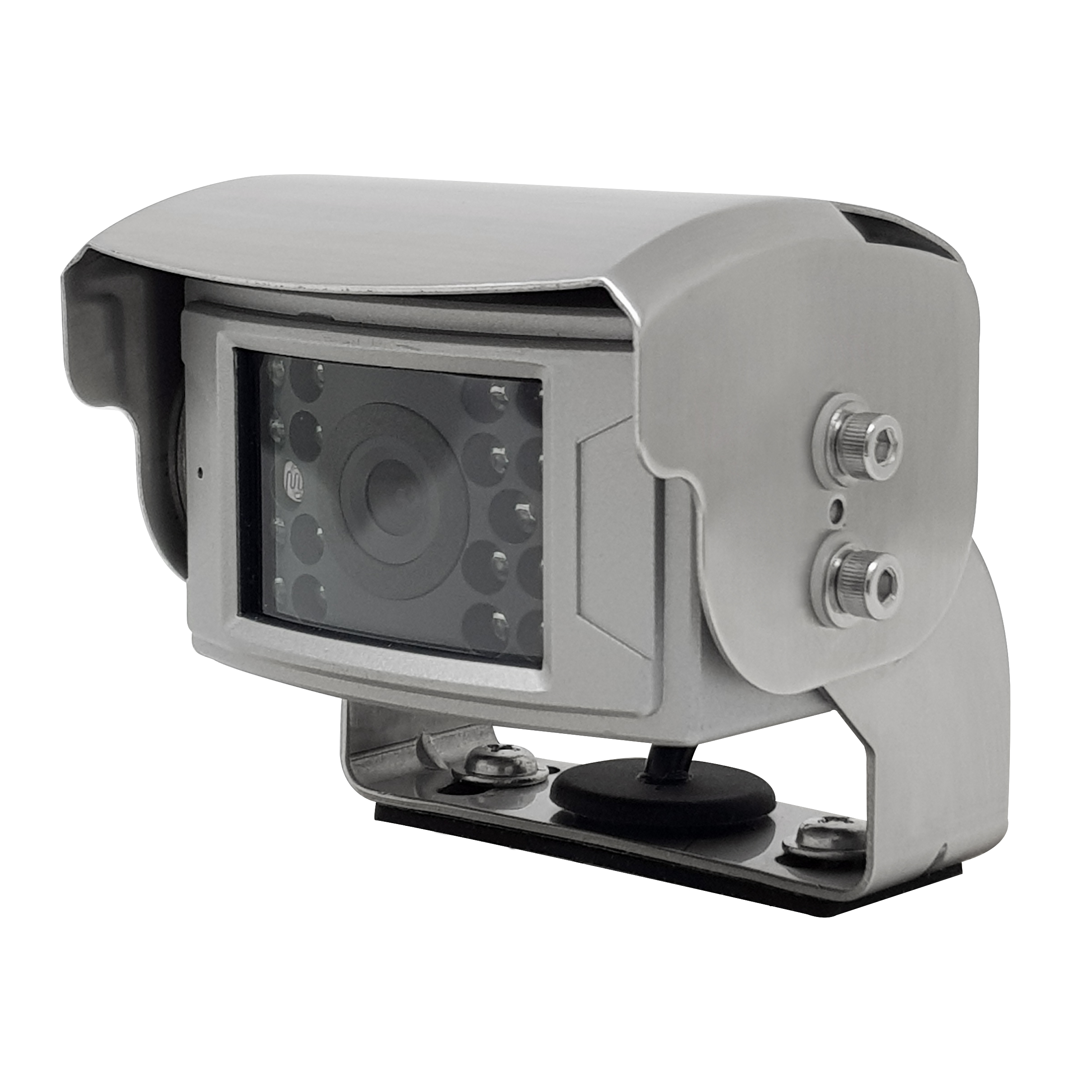

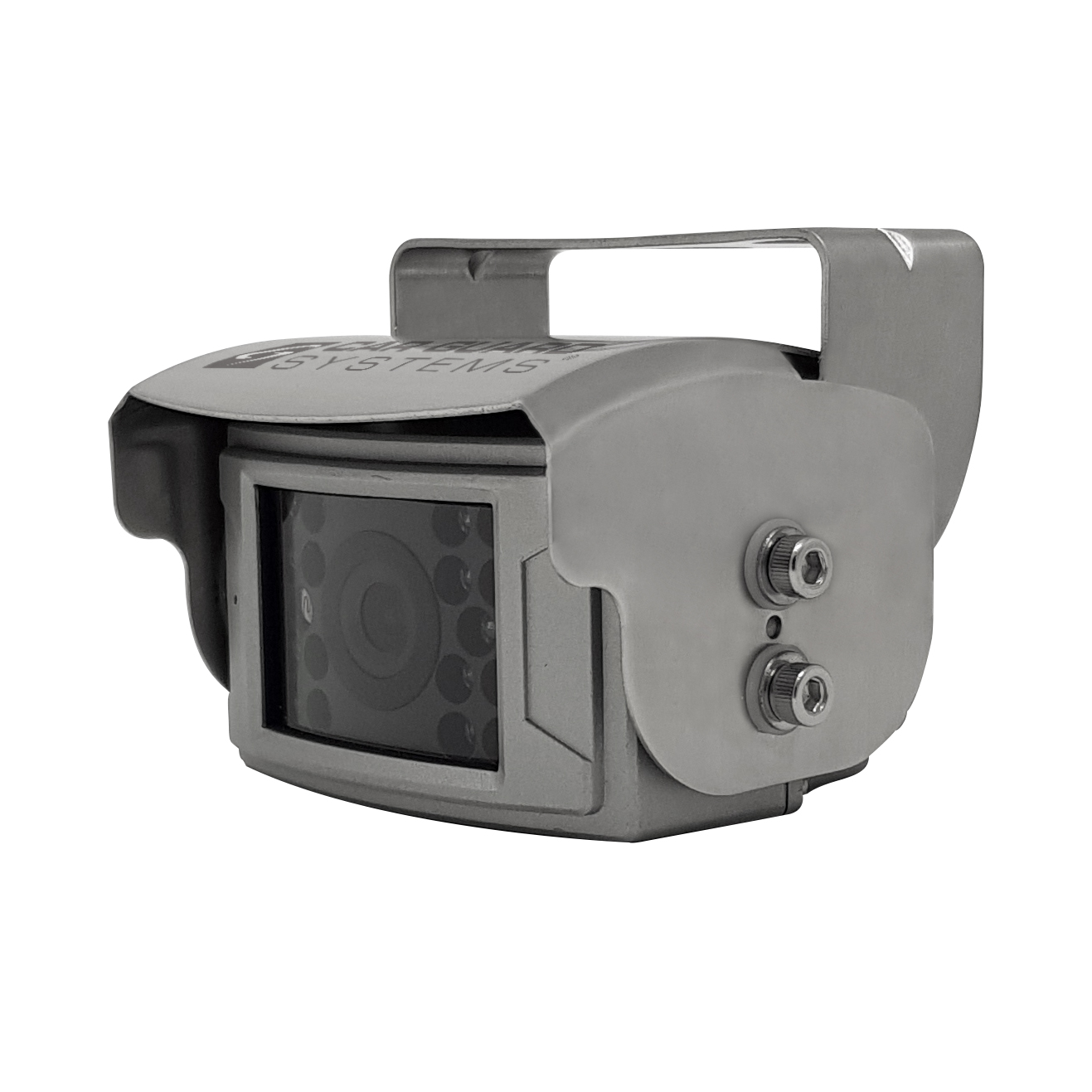

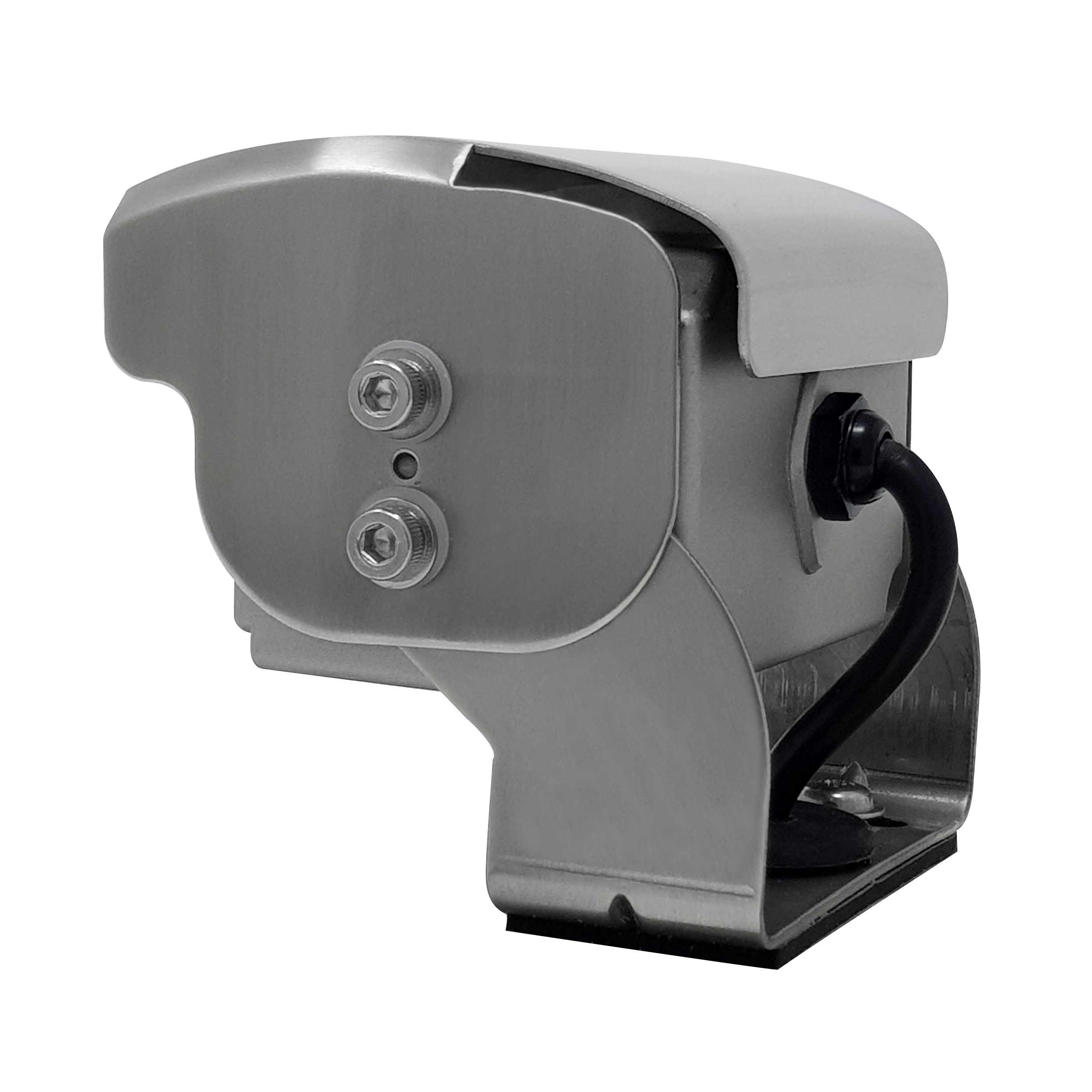

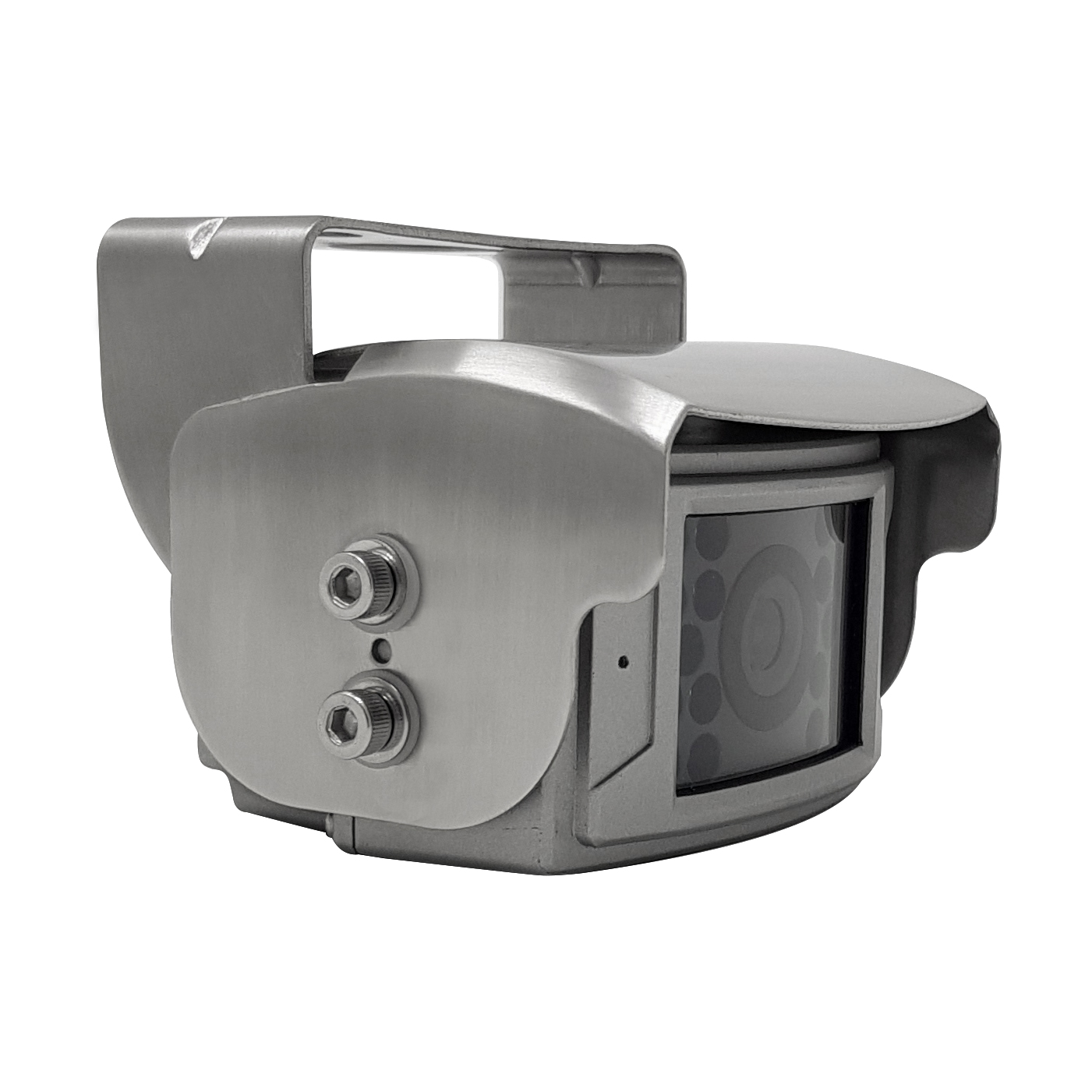

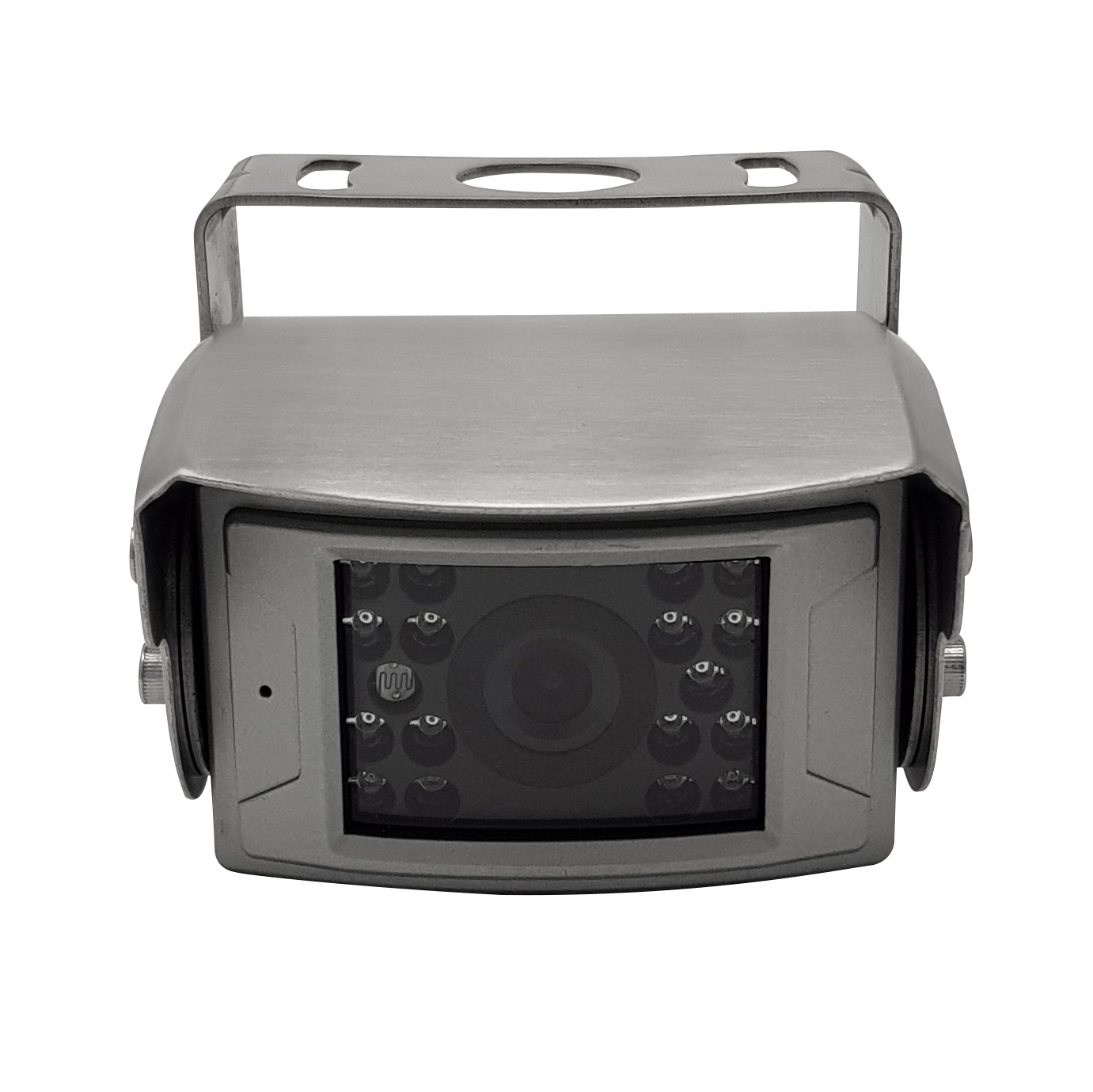

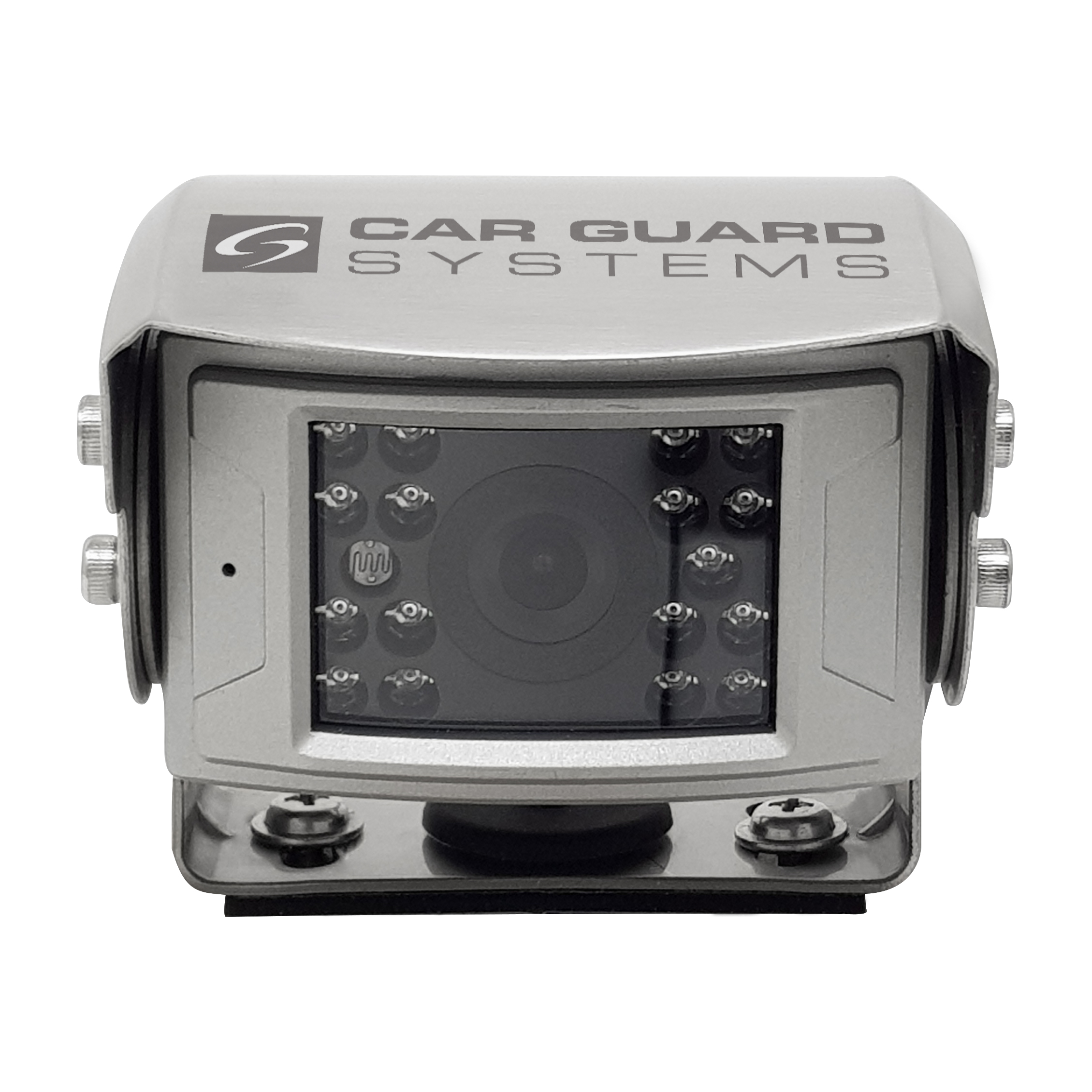

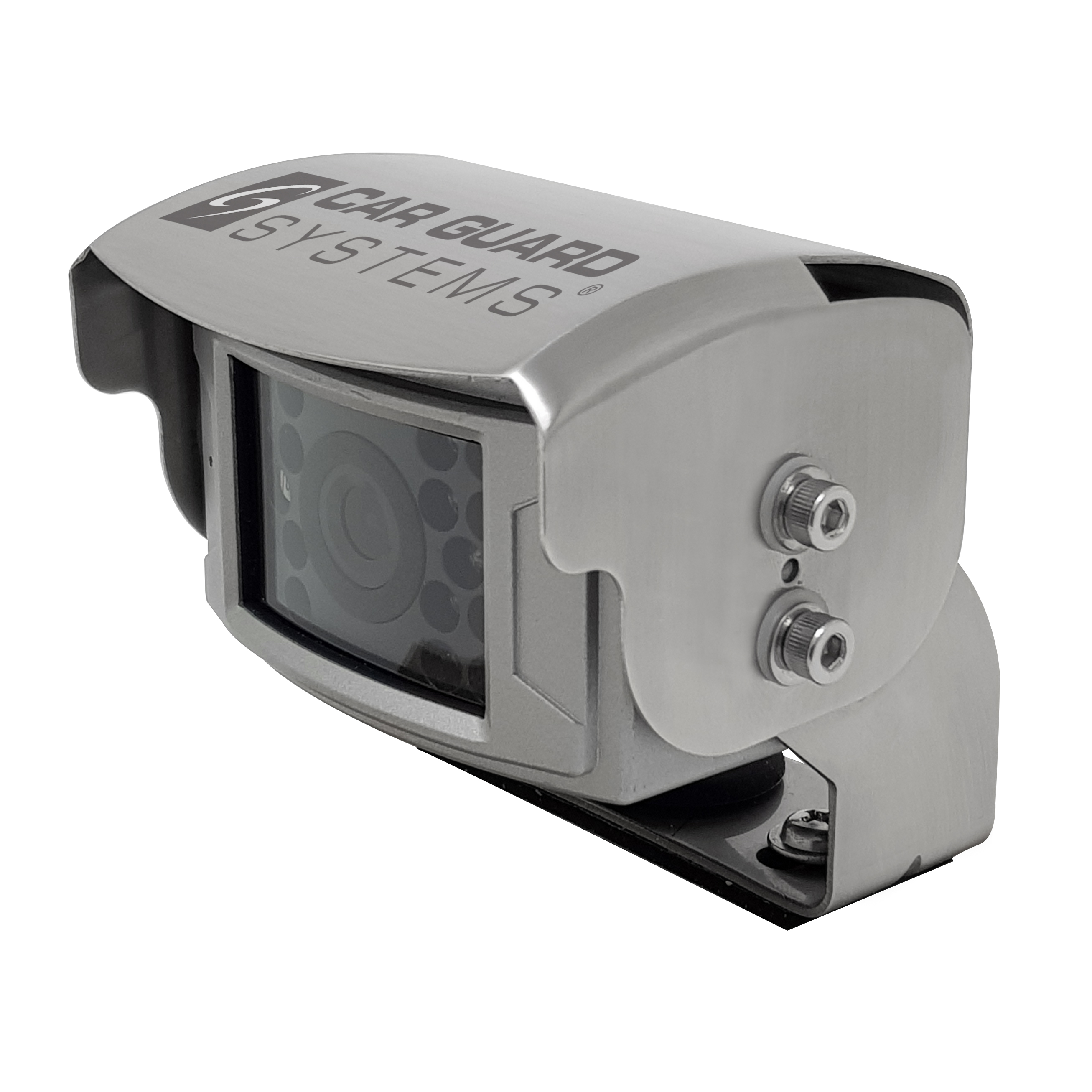

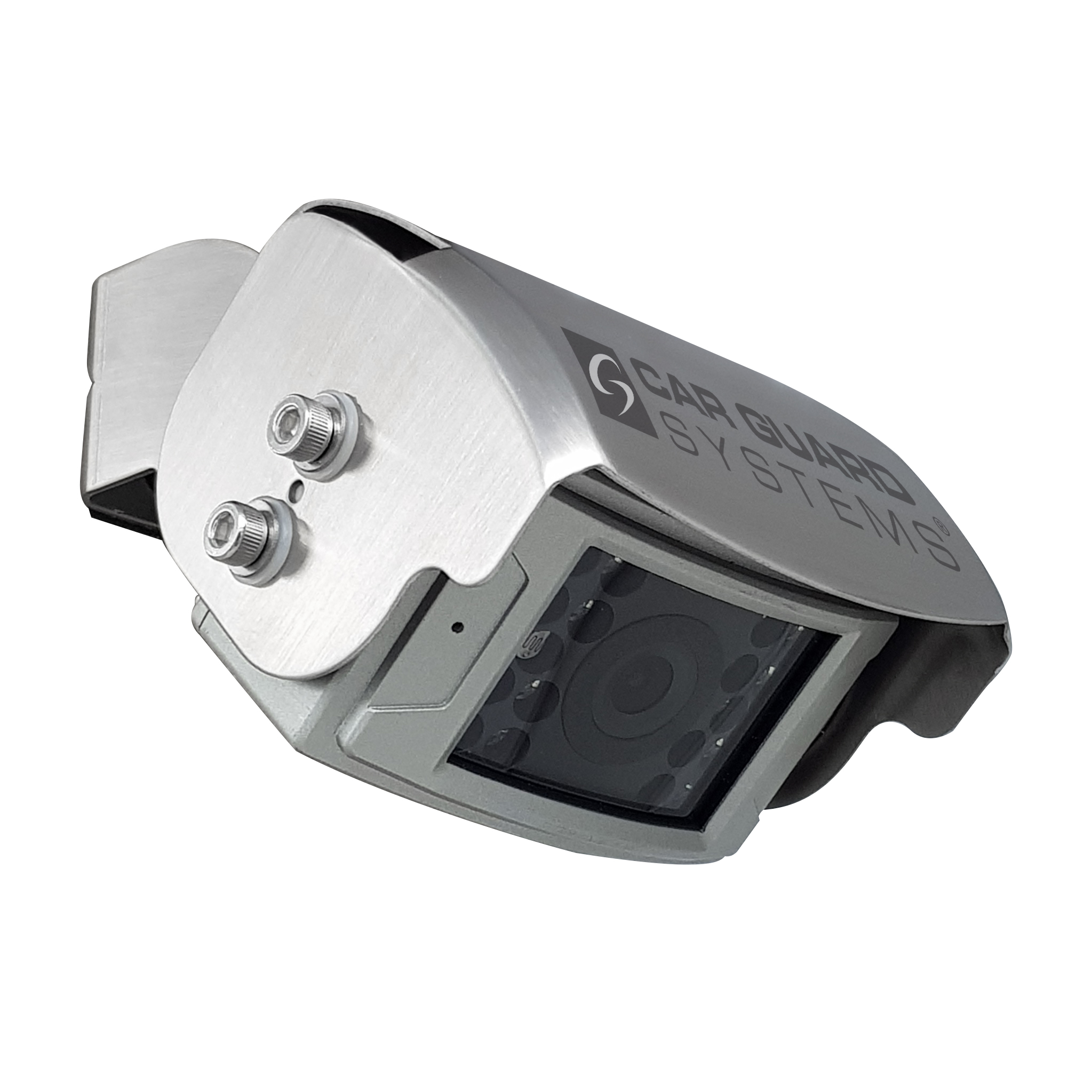

CARGUARD REAR ANGEL VIEW ™ RAV-F Rear View Camera, Full HD for AHD monitors, 115°, silver, 9-32V, PAL

Item number RUF16413PT

EUR 269.00 *
Content 1 piece
Ready for shipping, delivery in 48h

* Incl. VAT excl. Shipping

Item number RUF16413PT

Colour rear view camera as a parking aid and for monitoring the traffic behind you

CARGUARD REAR ANGEL VIEW ™ RAV-F Rear View Camera, Full HD for AHD monitors, 115°, silver, 9-32V, PAL

This 1080p camera is compatible with AHD, HD and Full HD monitors only, such as our RAV-MO 7HD, RAV-MO 7WHD, RAV-MO 7QHD and RAV-MO 9HD models.

Feature description:

With our extremely high-quality and durable reversing cameras, you can upgrade monitors from numerous manufacturers to a fully-fledged reversing video system. You can get the right adapter for almost any monitor model.

The camera image is displayed on the screen as soon as reverse gear is engaged. For the use of several cameras, we offer various monitors individually tailored to your needs.

The sophisticated monitor adapter is available for almost every monitor model.

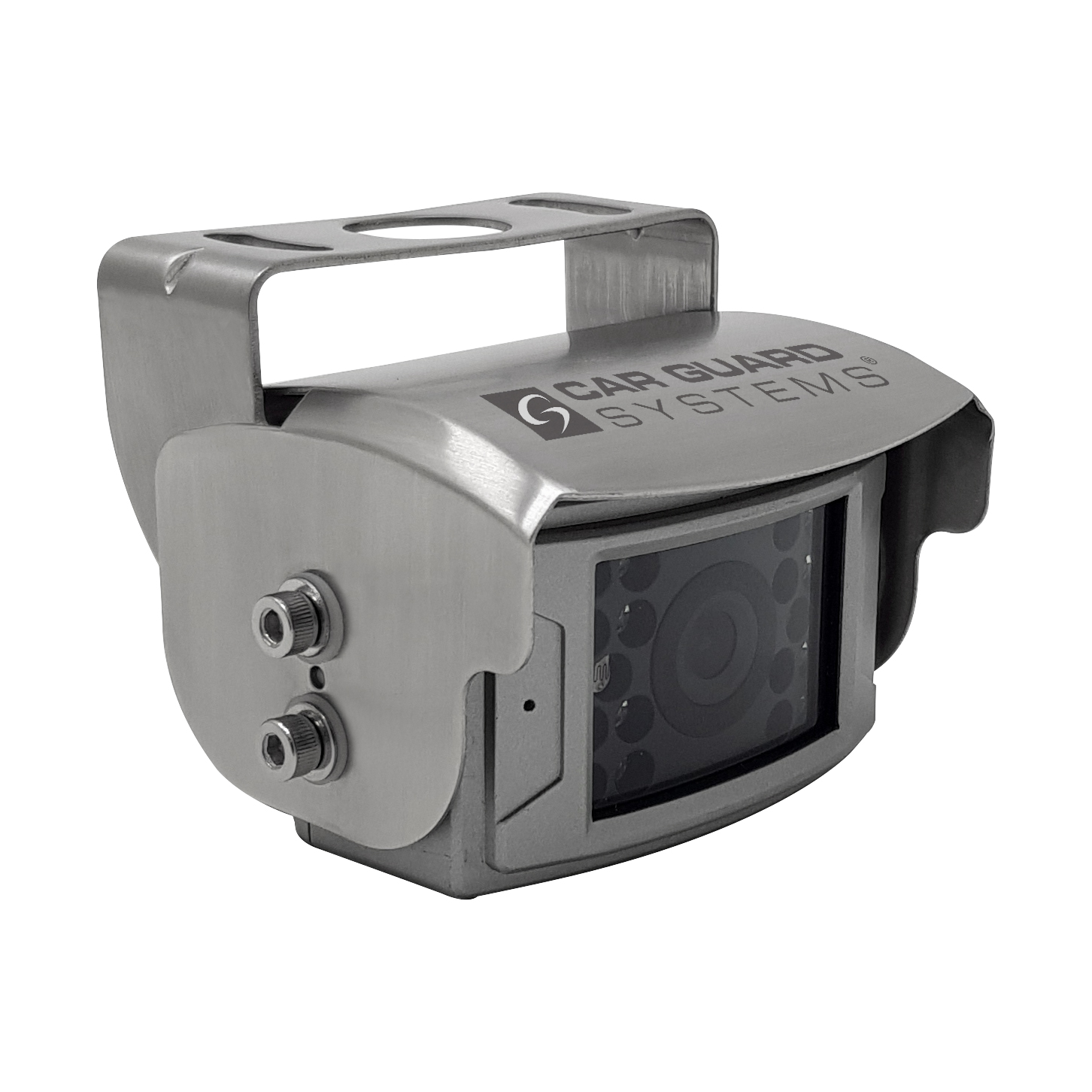

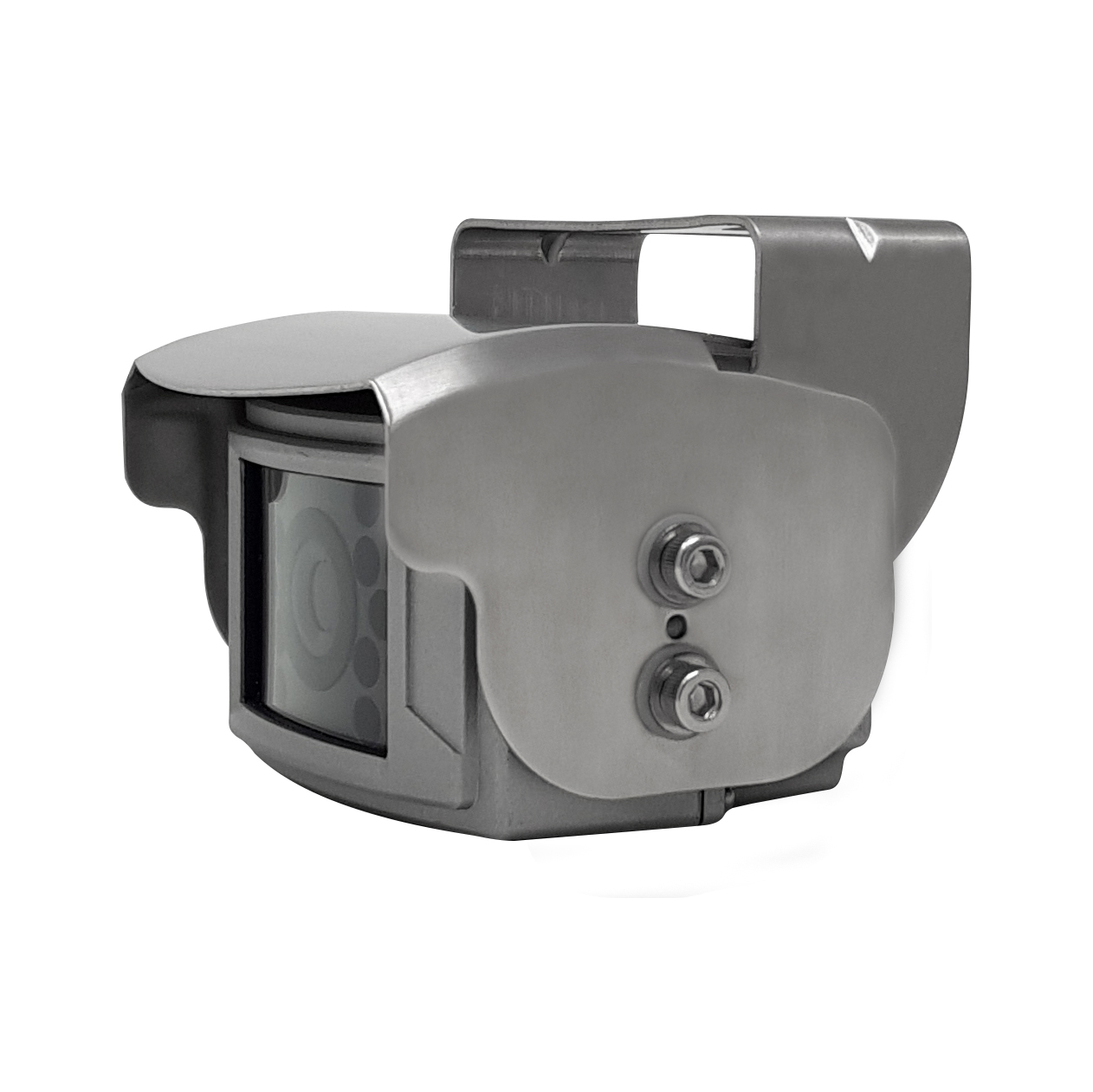

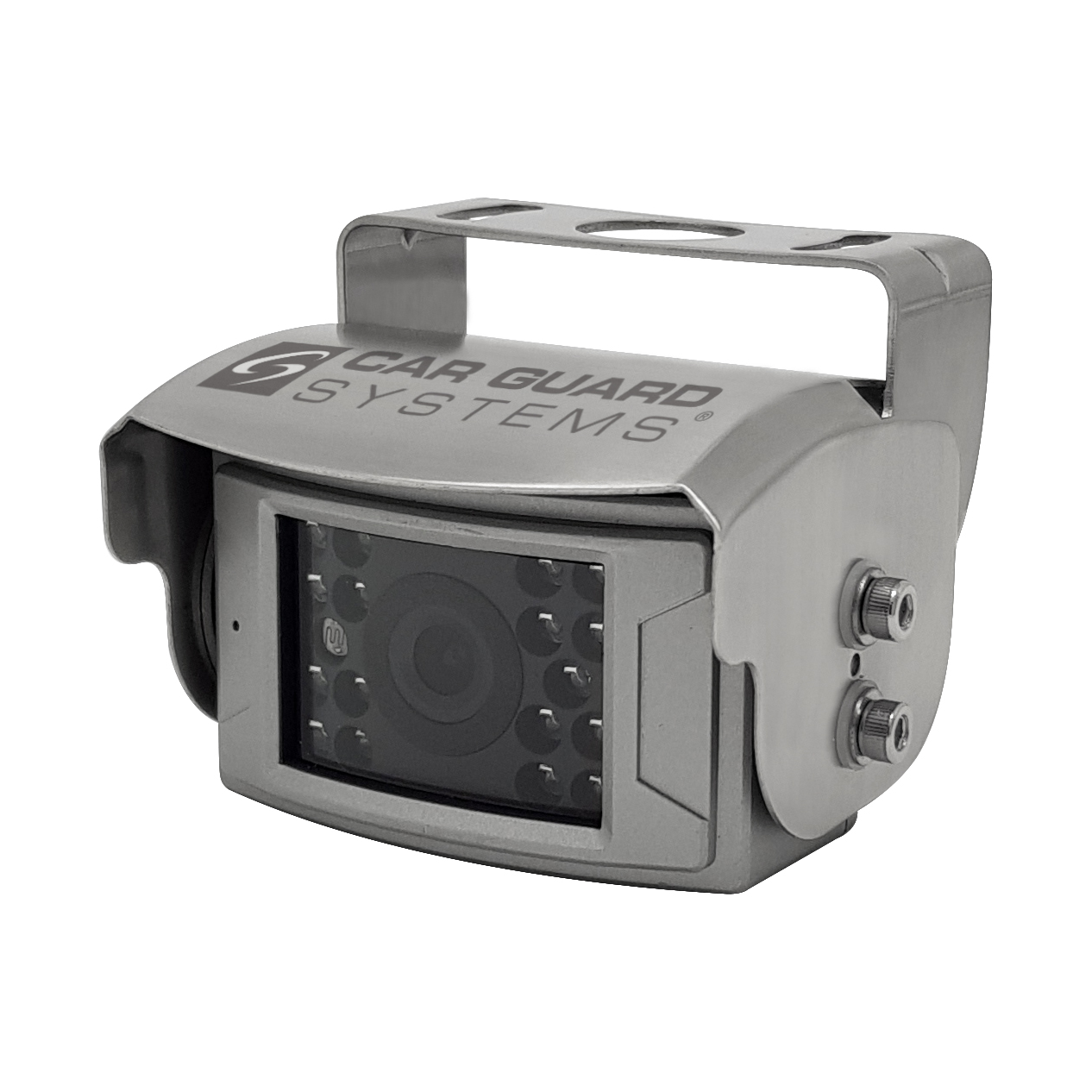

The ingenious design allows any installation position: overhead on the ceiling, on the wall or on the floor. The camera connection cable can be installed invisibly and absolutely waterproof.

Device information:

  • Excellent resolution: 2,080,000 pixels with 1080 TV lines
  • Power supply: DC 9-32V +/- 10%
  • Lens coverage: 70° (vertical) / 95° (horizontal) 115° (diagonal)
  • Constructed to IP69K, the highest protection standard for components on vehicles
  • Protection against water from high-pressure cleaners
  • Protection against continuous submersion
  • Protection against foreign bodies: absolutely dust-tight
  • Protection against contact and shock
  • The powder-coated silver die-cast aluminium housing is additionally protected by a corrosion-free sunshield and a 2 mm thick, torsion-resistant stainless steel mounting base
  • Extremely resistant to branches, high-pressure cleaners, storms, dirt, winter weather and rain
  • Waterproof screw connections
  • Image sensor size 1080p: 1/3 inch Sony MIX 225
  • Fast real-time image transmission
  • 17 highest quality infrared LEDs guarantee a very good image even in the dark
  • Night vision up to 12 m
  • Light sensitivity: 0 lux (with IR at night), 0.1 lux (during the day)
  • Vibration-proof up to 15G
  • shockproof up to 100G
  • Built-in microphone
  • Heating against condensation: active below 10° Celsius
  • automatic backlight compensation
  • Automatic brightness and white balance
  • TV system: PAL (NTSC available on request)
  • Antifog lotus coating
  • Focal length: f= 3.5 mm
  • Sensor detection range: 4.9 mm (H) x 3.7 mm (V)
  • Power consumption: < 2.5 W
  • No voltage connection necessary at the rear of the vehicle
  • Video signal output: 1 Vp-p, 75 Ohm
  • Current consumption in operation: 88 mA during the day, 128 mA at night, maximum: 535 mA
  • Operating temperature range: -20° C to 75° C, max. relative humidity 95%
  • Standing temperature range: -40° C to 80° C, max. relative humidity 95%
  • Sampling system: progressive
  • Synchronisation: internal
  • horizontal synchronisation frequency: 15.63 kHz / 15.73 kHz
  • Vertical sync frequency: 50 Hz / 60 Hz
  • Gamma: 0.45
  • Gain control: automatic
  • Signal-to-noise ratio: 52 dB
  • Electronic shutter speed: 1/50 (PAL) ~ 1/100,000 s

Product size and weight:

  • Product size (LxWxH): 77.9 x 71.3 x 70 mm
  • Weight: 320 g


  • Part number: RUF16413PT
  • EAN: 4260456384604
  • Packaging weight: 1320 g
  • Packaging size: 298 x 170 x 86 mm


  • IP69K waterproof and dust resistance test (for high pressure/steam cleaning, specific for road vehicles)
  • Salt vapour test certificate
  • ROHS
  • CE
  • E-Mark

Scope of delivery:

  • Colour rear view camera (9-32V)
  • 20 metre connection cable with 4 pin aviation connector
  • Sealing rubber plate for mounting foot
  • Sealing ring for the cable gland
  • Screw set for mounting on the vehicle (2x for sheet metal/ 2x for PVC/ 2x with thread)
  • Installation instructions

Item number RUF16413PT

Item ID 1255
Content 1 piece
